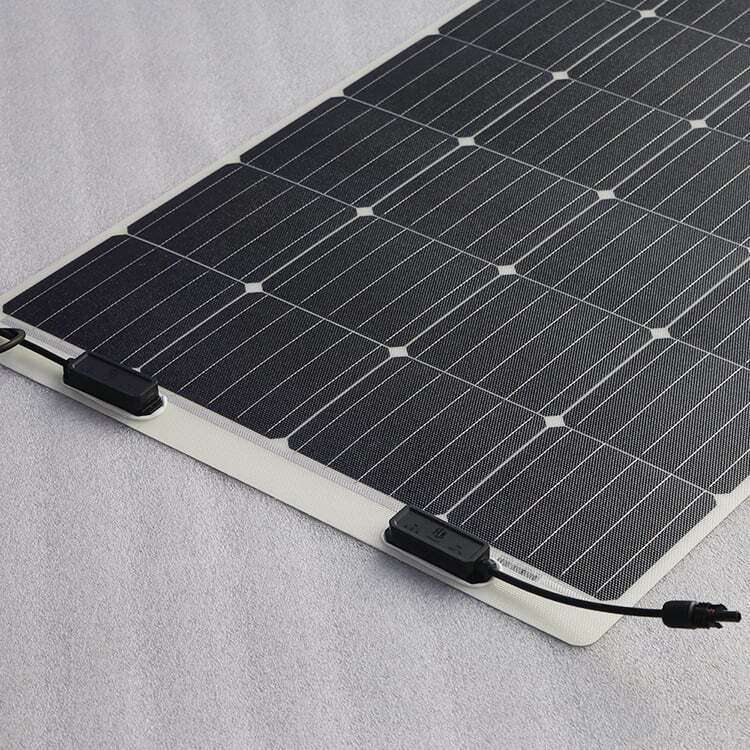

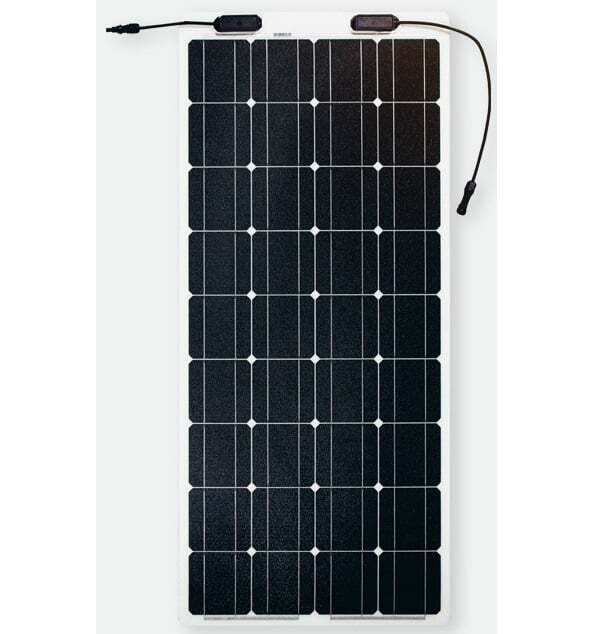

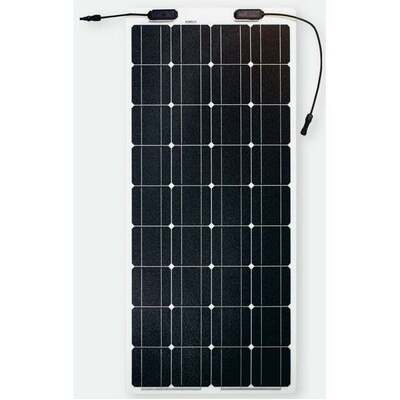

eArc is a lightweight and ultra-thin solar panel made with a fibreglass-reinforced composite material similar to aircraft windows, and 75% lighter than conventional solar panels, making it far less costly to transport and install. eArc lightweight solar panels are ideal for caravans, motorhomes, RVs, Buses, 4WDs, boats, yachts and even trains. Yes trains, in fact, the eArc panels are used on the world’s first solar-powered train in our own Byron Bay, NSW.

eArc solar panels are also the first lightweight solar panel approved for off-grid use by the Clean Energy Council of Australia, meeting the same durability tests that conventional glass solar panels must (IEC61215:2016) as in use on many home and commercial applications in Australia including the Sydney Maritime Museum Heritage Building.

  • Ultra-light - eArc weighs around 75% less than conventional PV panels. Panels measure just 2mm with a 100-watt panel weighing just 1.9kgs.
  • Flexible - eArc combines a unique, patented material to produce a superior flexible crystalline-silicon/panel which can be installed on curved surfaces.
  • Easy Installation - eArc can reduce installation costs through ease of handling and faster installation, without the added cost of mounting hardware.
  • Durability - eArc panels are certified to withstand maximum test load (2400 Pascal) and hail tested with 200g/35mm diameter ice stones at 39.5m per second.
  • Warranty - 5 Year Warranty.

STC  SMF175M-4X09U
Maximum Power (Pmax 175
Maximum Power Voltage (Vmp 19.5
Maximum Power Current (Imp 8.98
Open-circuit Voltage (Voc 23.9
Short-circuit Current (Isc 9.5
Module Efficiency (%)  17.3
Operating Temperature (℃)  -40 ℃ to 85 ℃
Maximum System Voltage  600 V DC (IEC)
Maximum Series Fuse Rating  20 A
Application Class  Class A
Power Tolerance  0/+5 W
Solar Cell  Mono (6 inches)
No. of Cells  36 (4×09)
Module Dimensions 1504×673×2 mm
Weight 3.0 kg
Backsheet  White
J-box  IP 68 rated (each j-box have one bypass diodes)
Output Cables  Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm
Connector  MC4 compatible
SKU SNM.SMF175M-4X09U
Model # SMF175M-4X09U
Brand Sunman
Shipping Weight 5.0000kg
Shipping Width 1.600m
Shipping Height 0.100m
Shipping Length 0.700m
Shipping Cubic 0.112000000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
