Features

Switches isolated battery banks to all loads or combines battery banks to all loads

  • Make-before-break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation aboard gasoline powered boats

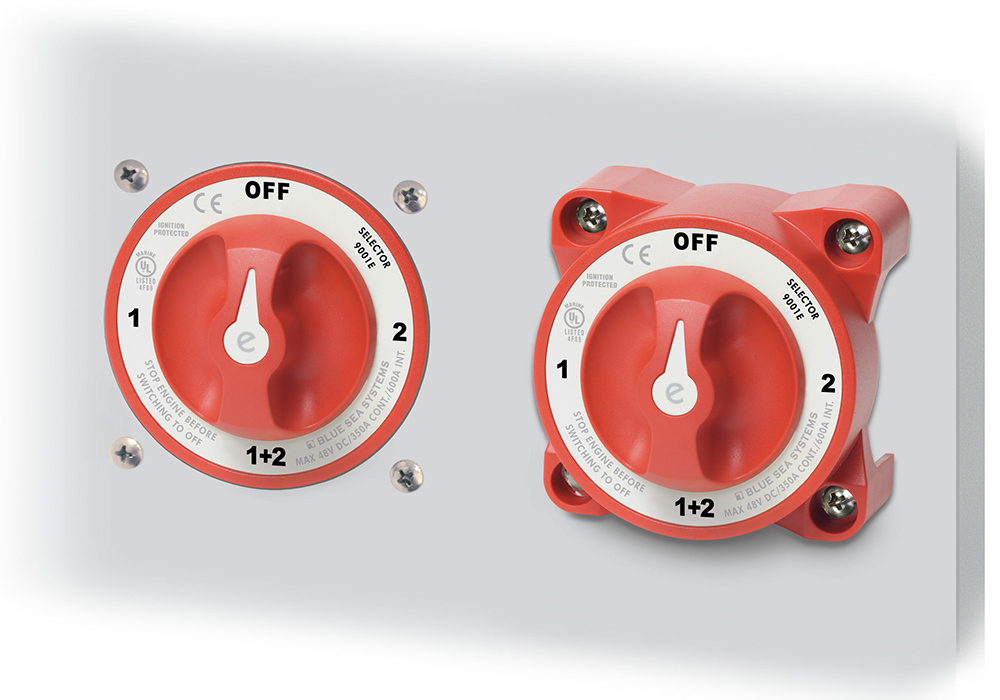

  • Case design allows surface or rear panel mounting
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • 3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance accepts 3/8" and M10 ring terminals
  • 7/8" (22.22mm) stud length to accept multiple cable terminals
  • Tactile textures indicate knob position by feel only

Switch set to 1

Switch set to 2

Switch set to 1 + 2



Specifications
Switch Type  Selector 4 Position
Color Red
Switch Positions 4
Battery Combine Yes
Alternator Field Disconnect  No
Maximum Voltage 32V DC
Terminal Stud Torque 140 in-lb (15.82 Nm)
Continuous Rating  350A
Intermittent Rating  600A (5 min)
Cranking Rating 30 sec  1200A
Battery Inputs 2
Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept 1/4" (M6) Screw
Stud Material Tinned Copper
Terminal Stud Size 3/8" - 16 (M10)
Weight 1.15Lb (0.52 Kg)
Weight 1.30lb (0.59 kg)
SKU BSS.9001e
Model # 9001EB
UPC/EAN 632085900151
Brand Blue Sea Systems
Shipping Weight 0.5900kg
