Switches a single battery to a single load group

  • Ideal for marine or RV applications
  • Ignition protected - safe for installation aboard gasoline powered boats

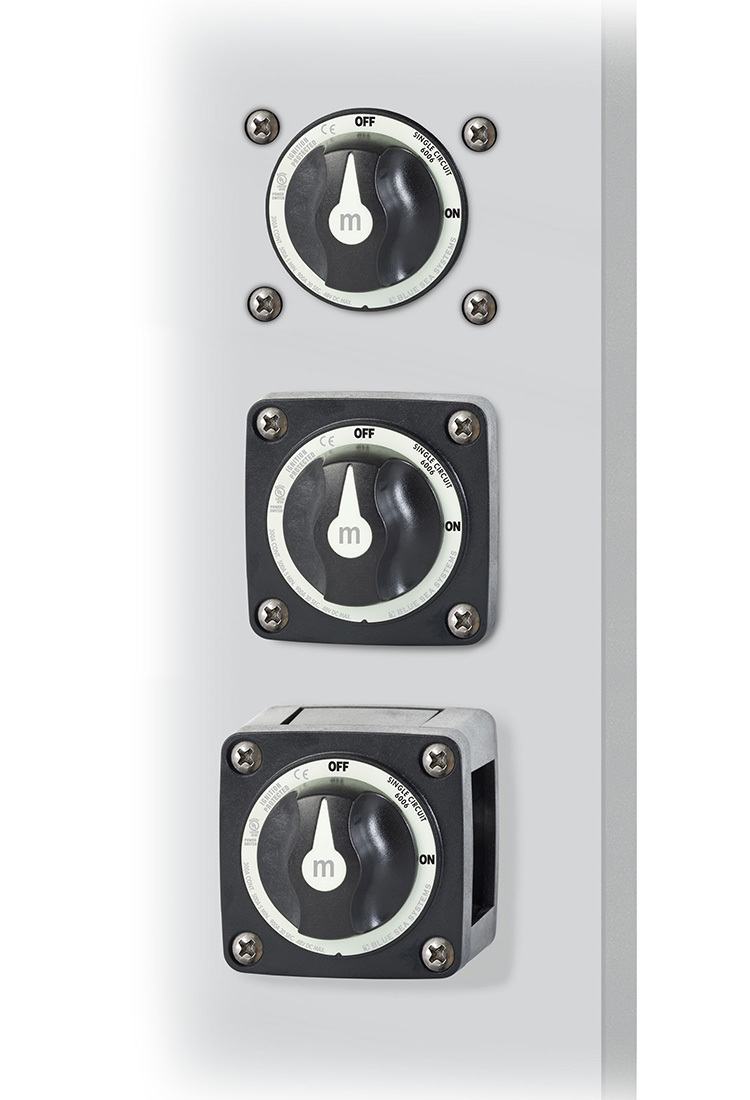

  • Case design allows surface, front panel, or rear panel mounting

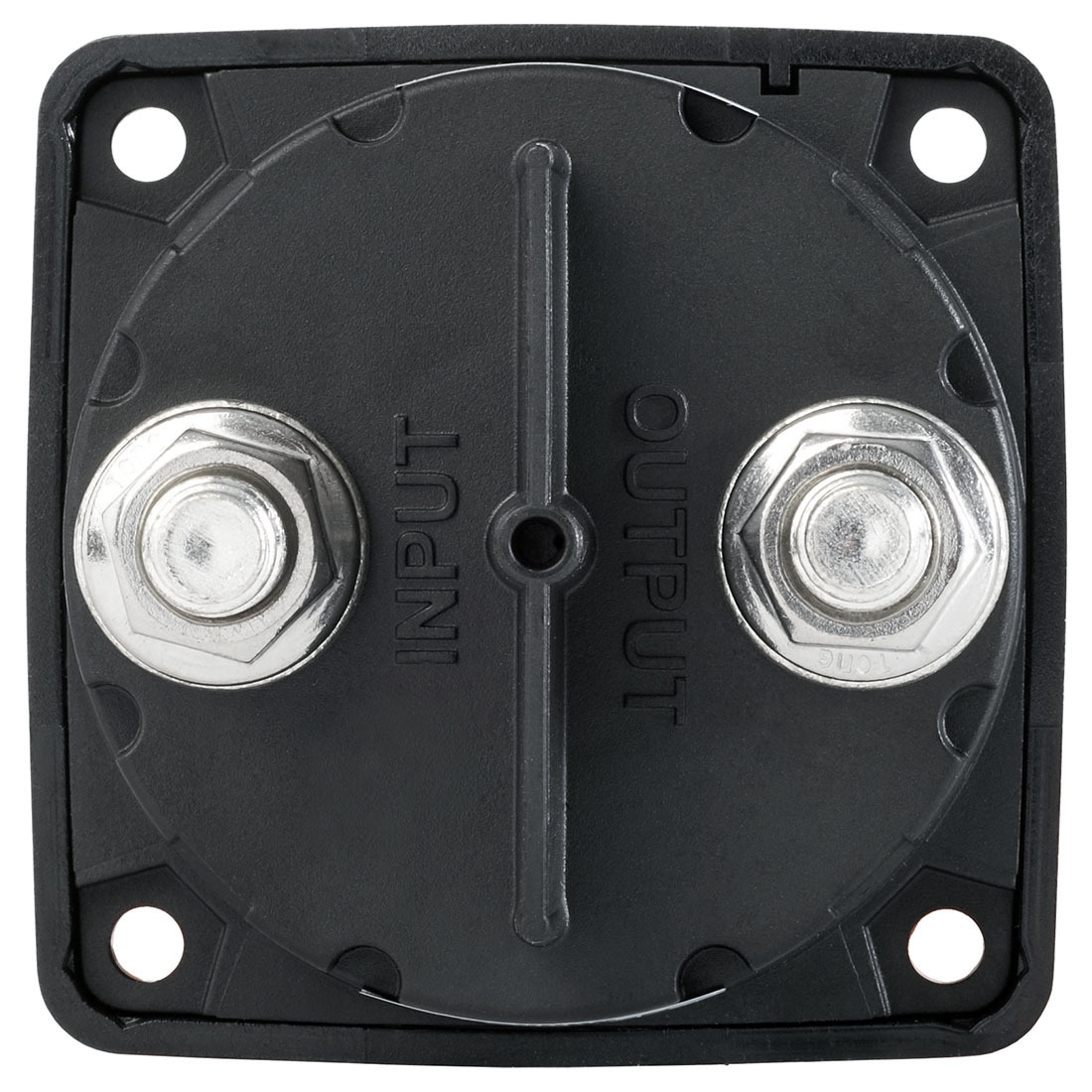

  • Isolating cover with snap-on sections protects rear contacts
  • All non-corrosive marine grade metals
  • Tin-plated copper studs for maximum conductivity and corrosion resistance



6006 Specifications
Switch Type  Single Circuit ON-OFF
Color Black
Switch Positions 2
Battery Combine No
Alternator Field Disconnect  No
Maximum Voltage 48V DC
Stud Size 3/8"
Terminal Stud Torque 120 in-lb (13.56 Nm)
Continuous Rating  300A
Intermittent Rating  500A (5 min)
Cranking Rating 30 sec  900A
Battery Inputs 1
Cable Clearance For 4/0 AWG Cables 1.12in (28.45 mm)
Cable Size to Meet Ratings 4/0 AWG (120mm²)
Mounting Holes Accept #10 Screw
Stud Material Tinned Copper
Stud Torque 120 in-lb (13.56 Nm)
Terminal Stud Size 3/8" - 16 (M10)
Weight 0.65Lb (0.29 Kg)

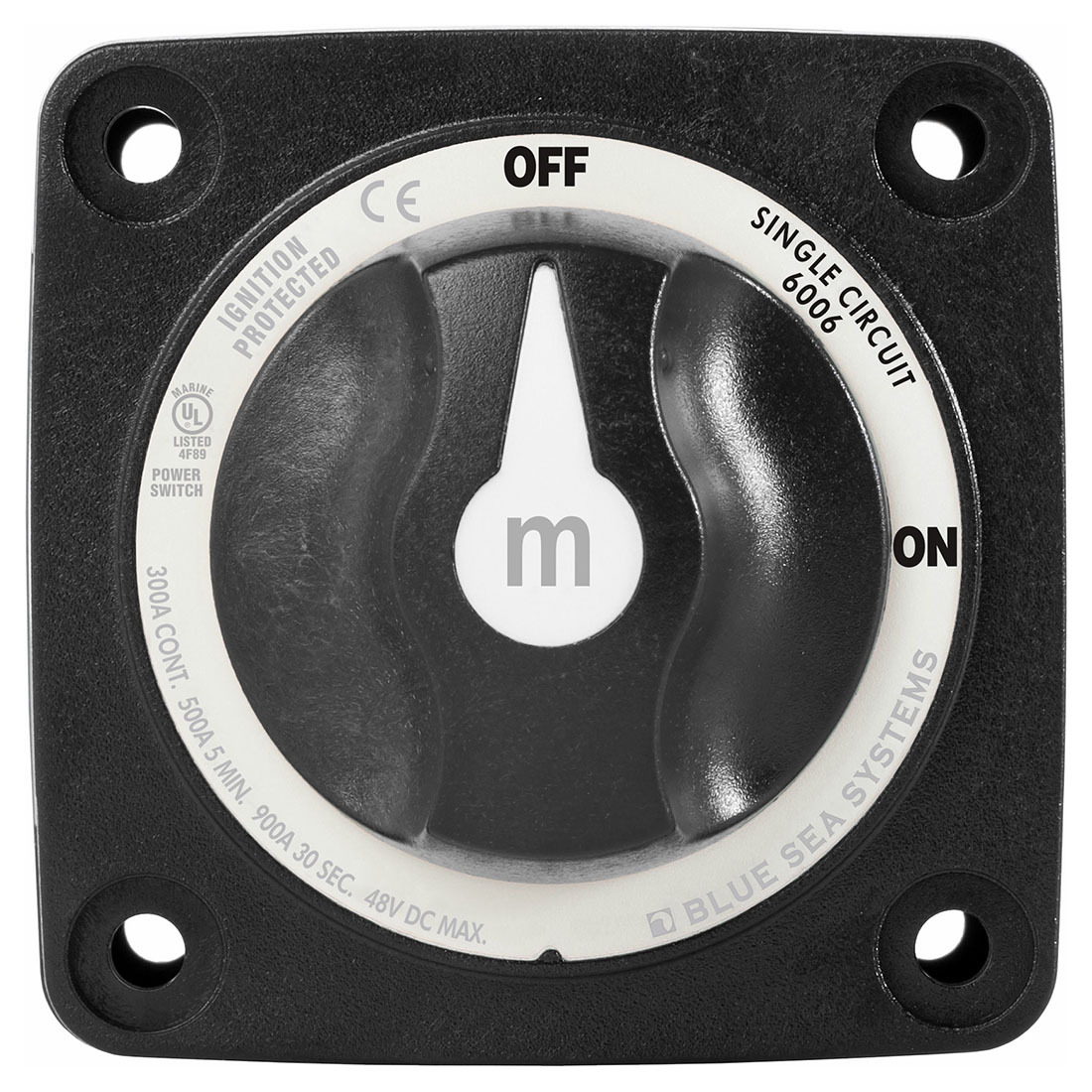

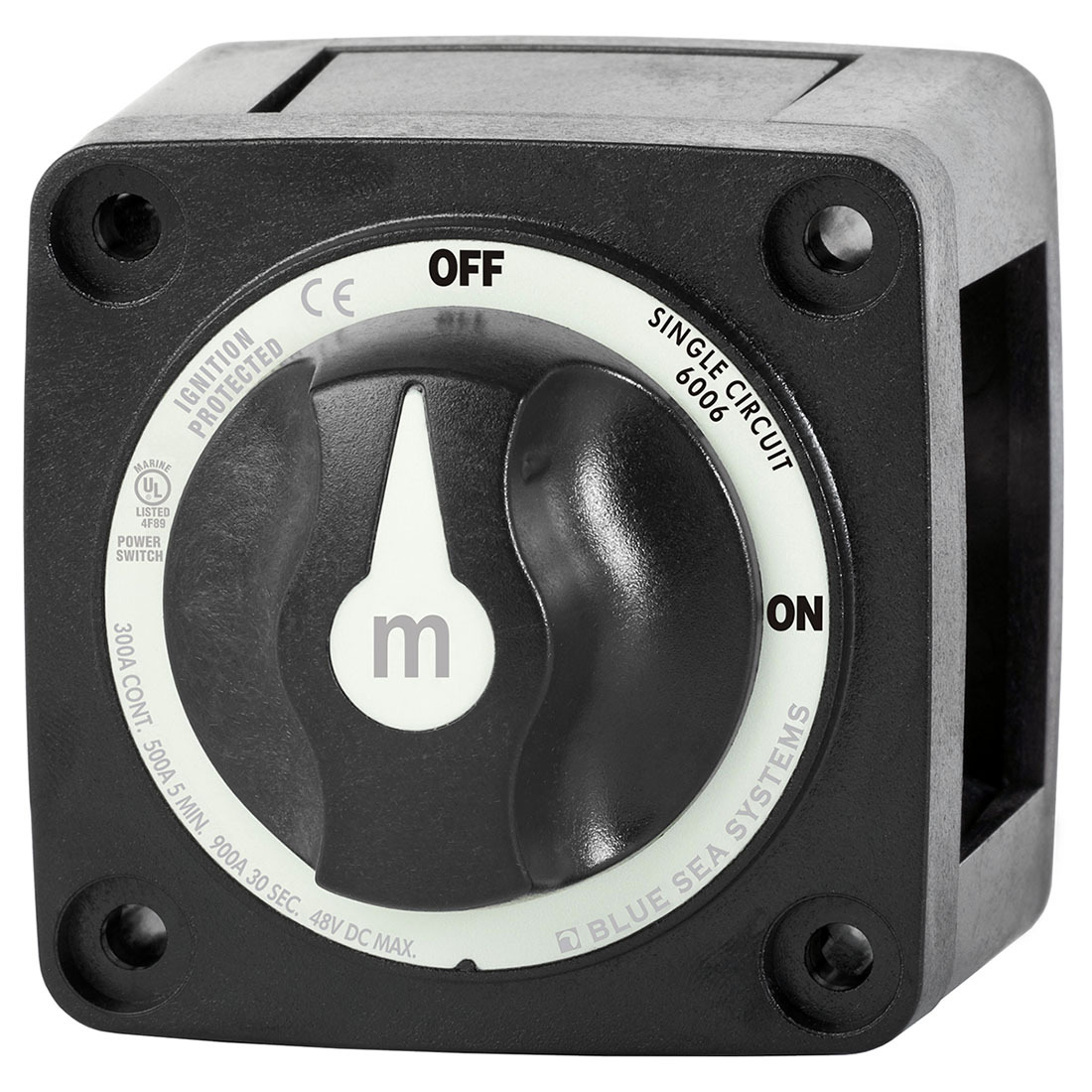

6006 Switch set to ON
9003e Switch set to ON



SKU BSS.6006200
Model # 6006200B
UPC/EAN 632085600624
Brand Blue Sea Systems
Shipping Weight 0.2900kg
