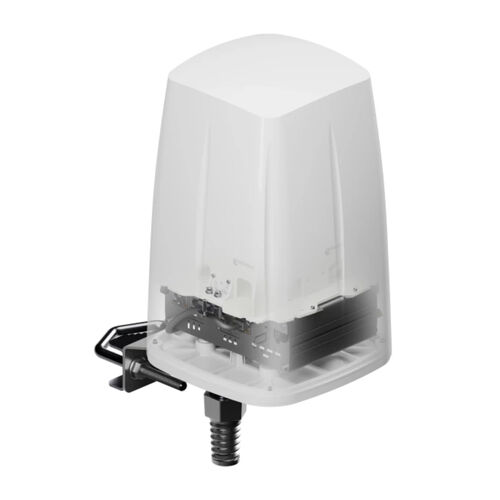

Robust Outdoor Antenna Solution for High-Performance Wireless Connectivity

This rugged outdoor antenna delivers high-performance support across 5G, LTE, Wi-Fi, and GPS technologies. With omnidirectional coverage and an IP67-rated enclosure, it’s built to withstand challenging conditions while boosting wireless range and reliability. Its integrated mounting bracket and multi-technology support make it ideal for both urban and remote installations.

Key Features

• Omnidirectional signal coverage for stable performance: Offers consistent reception and transmission across all supported frequencies, enhancing reliability in all directions.
• Supports wide 5G and LTE frequency ranges: Covers 617 to 4300 MHz with a maximum gain of 4.5 dBi, supporting fast data rates and low-latency communication.
• Optimised Wi-Fi connectivity with extended coverage: Operates on 2400–2500 MHz and 4700–6000 MHz bands, offering up to 7.5 dBi gain for robust wireless performance.
• High-accuracy GPS tracking functionality: Integrated GNSS antenna delivers 28 dBi gain within 1560–1610 MHz using RHCP polarisation for precise positioning.
• Rugged outdoor design with IP67 protection: Resistant to dust and water ingress, this antenna performs reliably in temperatures from -40 °C to 75 °C.
• Integrated bracket for easy, versatile mounting: Securely attaches to walls, ceilings, or masts, streamlining installation across various environments.
• Multiple cable and connector options for flexible integration: Includes 6x RG316 and 1x RG174 cables, with 4x SMA, 2x RP-SMA, and 1x SMA connectors to suit diverse setups.
• Environmentally responsible and power-efficient operation: RoHS compliant with a low power draw between 2.5–6.5 VDC and 2.5–6.5 mA, supporting sustainable deployments.

Built to support next-generation connectivity across a range of applications, this all-in-one antenna combines reliable signal performance with ease of deployment in any setting.
