If you plan to use your Windcharger with a Lithium battery, please let us know at the time of purchase. Stella can program the Windcharger specifically for Lithium use at no extra cost.

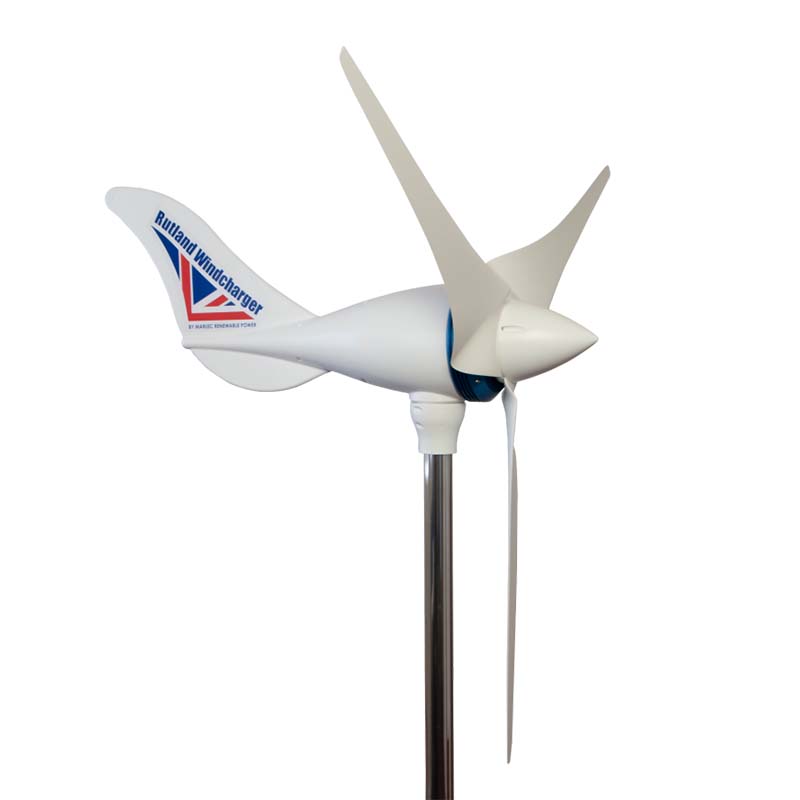

Low wind speed output in the 8-10 knot range is what counts. The Rutland 1200 delivers at low wind speeds with appreciable output at higher wind speeds as well. Consider that in most cases we select anchorages that are protected from the wind in which case the output at higher wind speeds is not so important. Consider the time spent at anchor versus sailing.

When sailing the apparent wind is typically higher so the additional loads when under way are typically well covered in the 15 to 20 knot range..

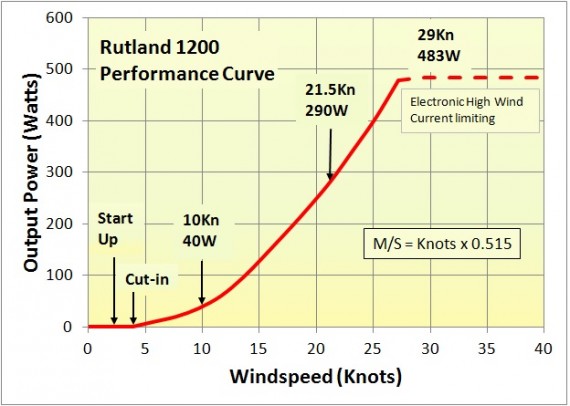

Rutland 1200 Wind Generator Performance Curve


Charge Controller

Included with the wind generator is a charge controller which is suitable for both lead acid and Lithium batteries (always check manufacturers specifications). In the case of Lithium, do not connect the supplied temperature compensation sensor.

 Parameter  Value
 Float Voltage  13.8 volts - temperature compensated
 Absorb Voltage  14.4 volts - temperature compensated
 Maximum Solar Voc  50 volts
 Charge Cycle Restart  Less than 12.5 volts

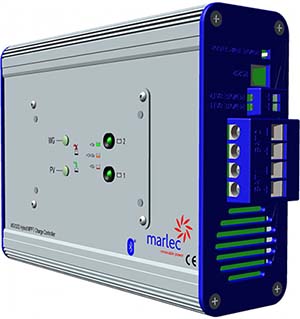

Rutland 1200 Charge Controller

SKU RUT.WG1200-12V
Model # WG1200-12V
UPC/EAN 2000000001456
Brand Rutland
Shipping Weight 12.0000kg
Shipping Width 0.390m
Shipping Height 0.190m
Shipping Length 0.900m
Shipping Cubic 0.066690000m3
