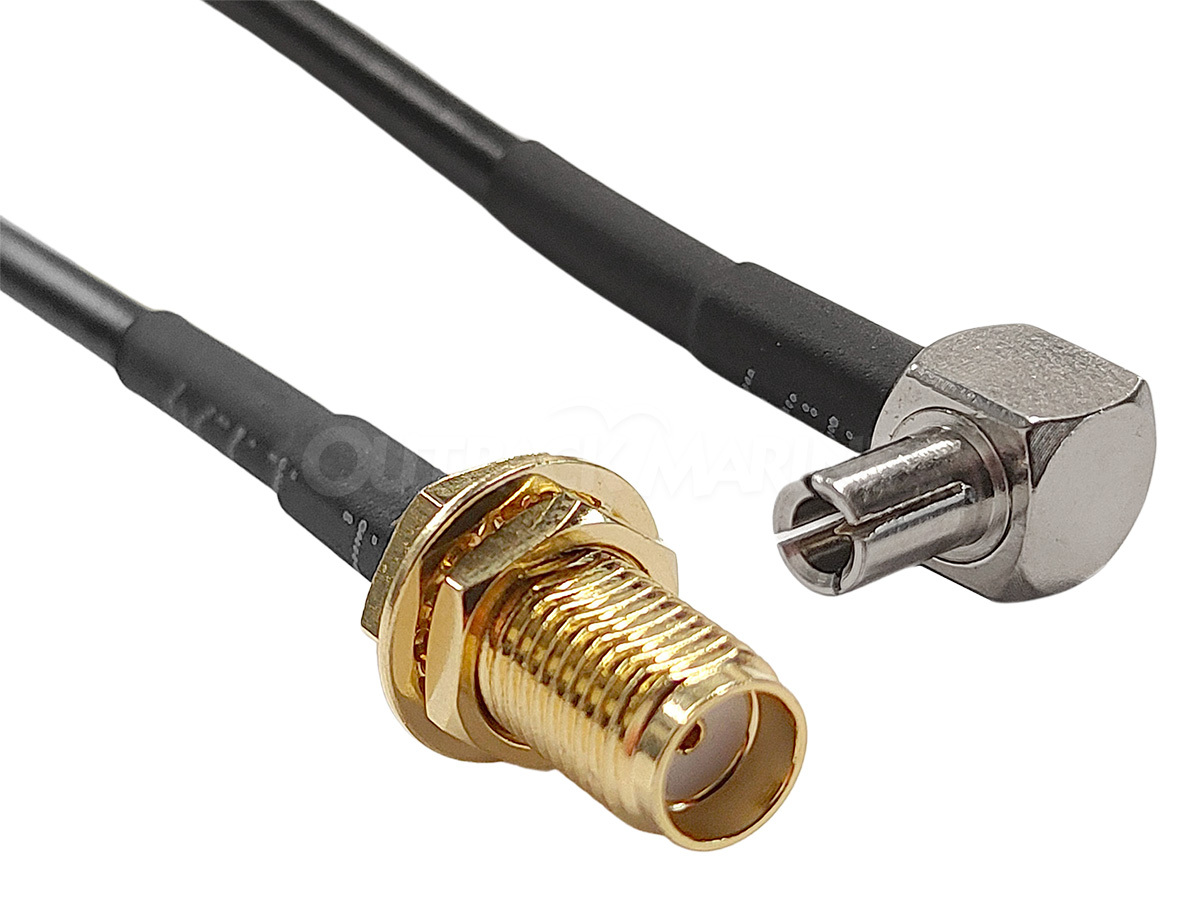

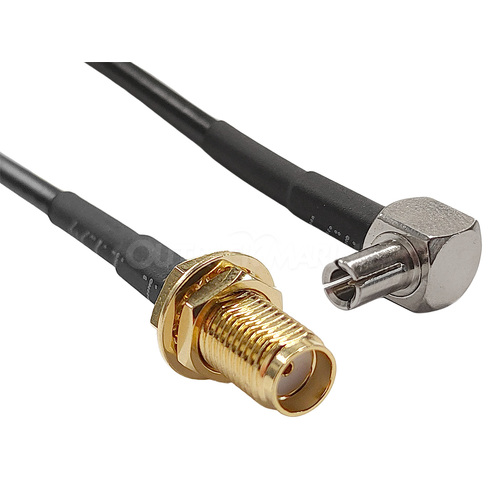

TS-9 to SMA Female patch leads are designed to connect a larger feeder cable that comes down from an antenna into a user device such as a mobile broadband modem.

The cable's right angle TS-9 connector matches the external antenna connection on many 4G modems.

Netgear uses the TS-9 connection to allow the attachment of larger 4G antennas. In most cases, a 4G modem will use two TS-9 connectors to operate in 2×2 MIMO.  This provides twice the performance over a single antenna.

This patch lead is 18 cm (180 mm) in length and uses a high-quality L-100 coaxial cable which is rated to 6 GHz.

The L-100 Patch Cable, TS-9 to SMA Female (CAL817) connector is visually similar to the CRC9 connector, however, the two interfaces are totally incompatible. Manufacturers such as ZTE use the CRC9 connector, while Netgear and the latest Huawei modems use the TS-9 interface.

SKU PWT.ACC-PT-00144
Shipping Weight 0.0100kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.180m
Shipping Cubic 0.000072000m3
Unit Of Measure ea
