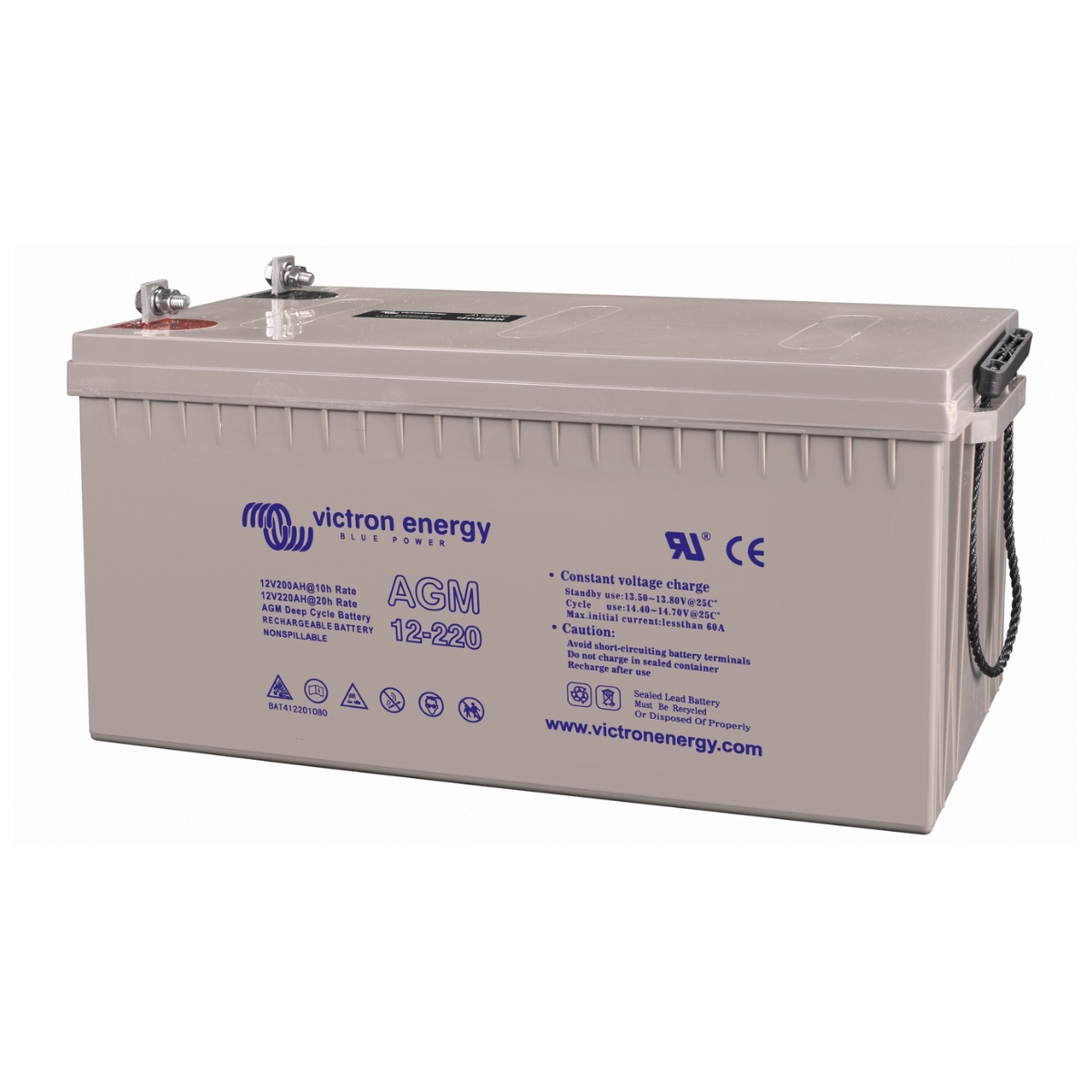

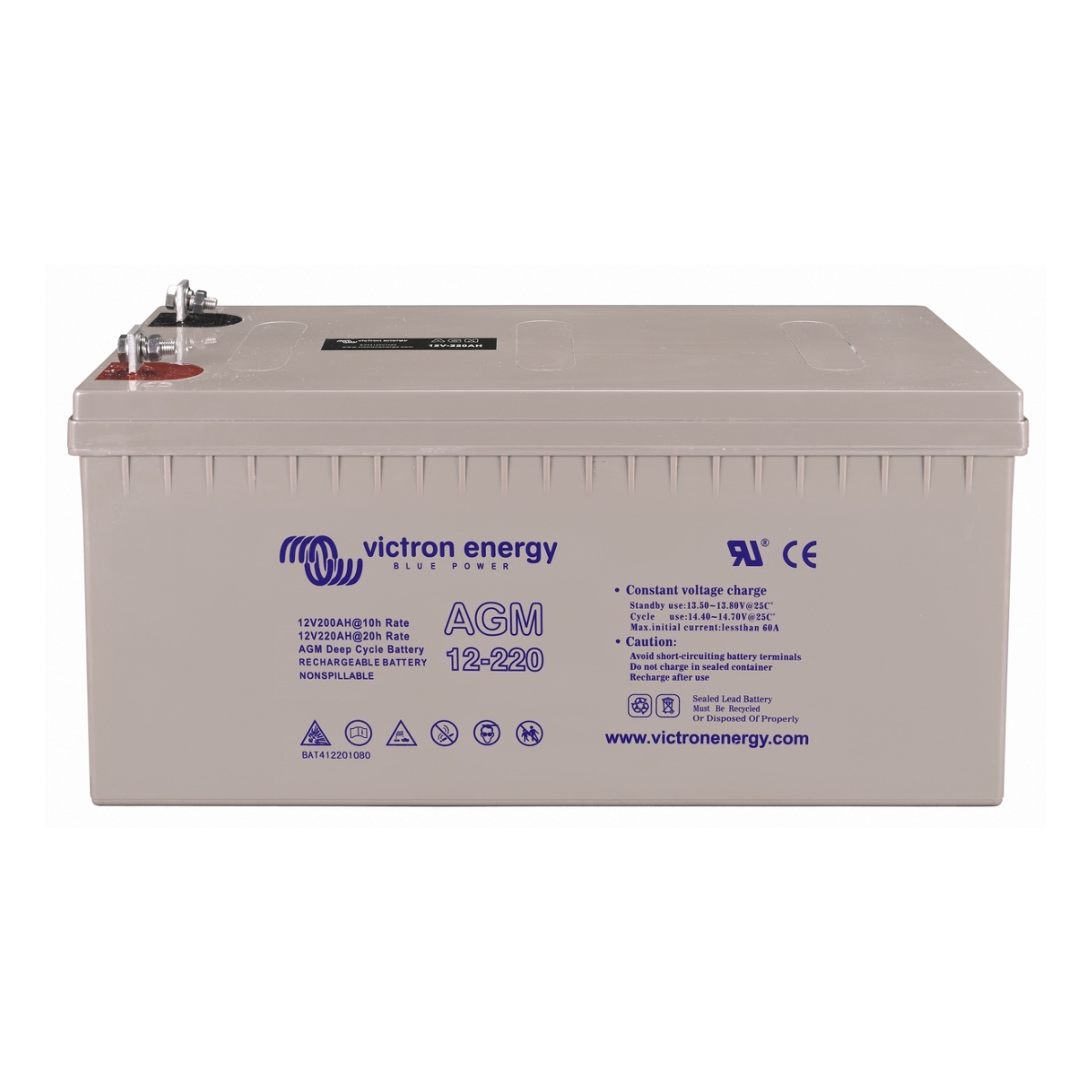

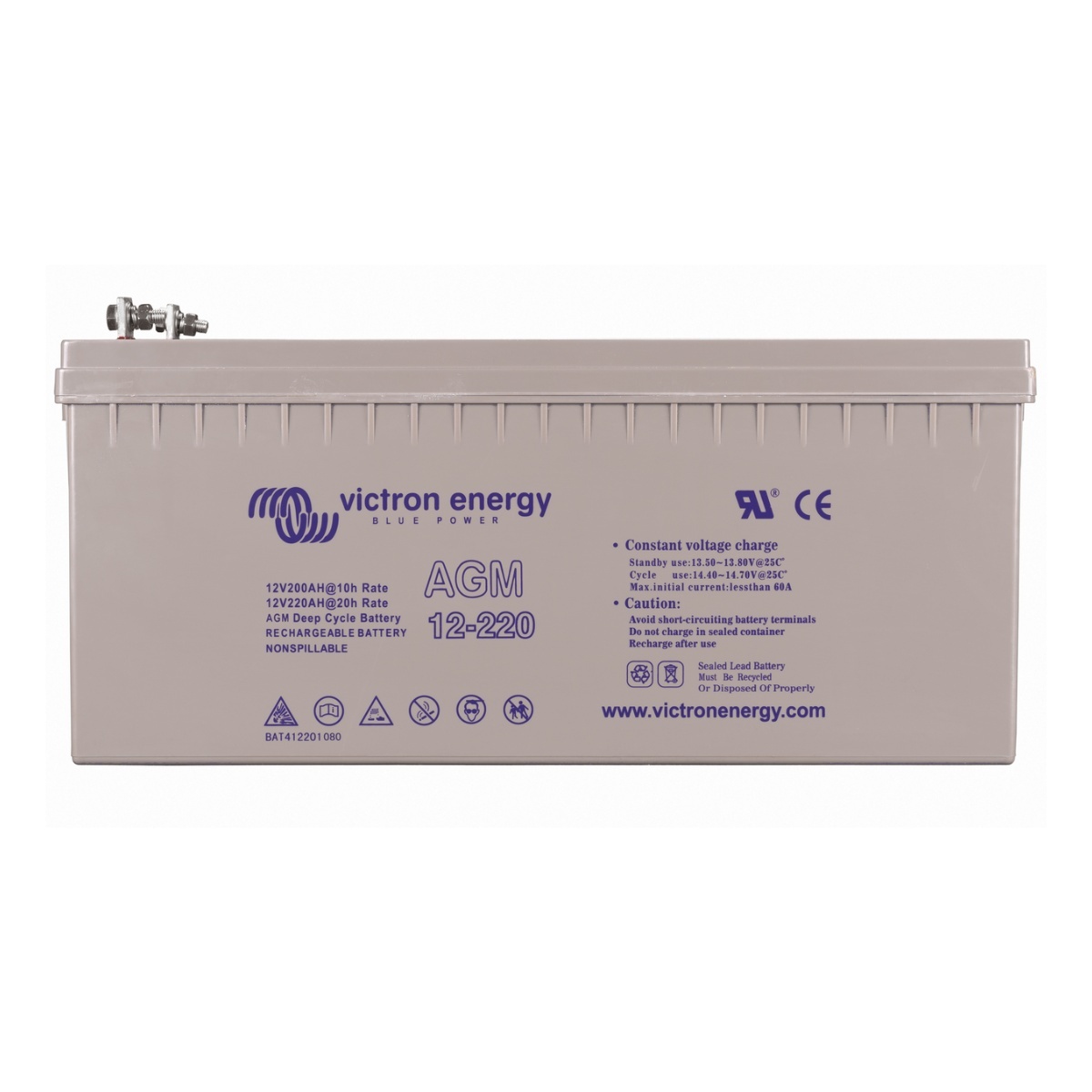

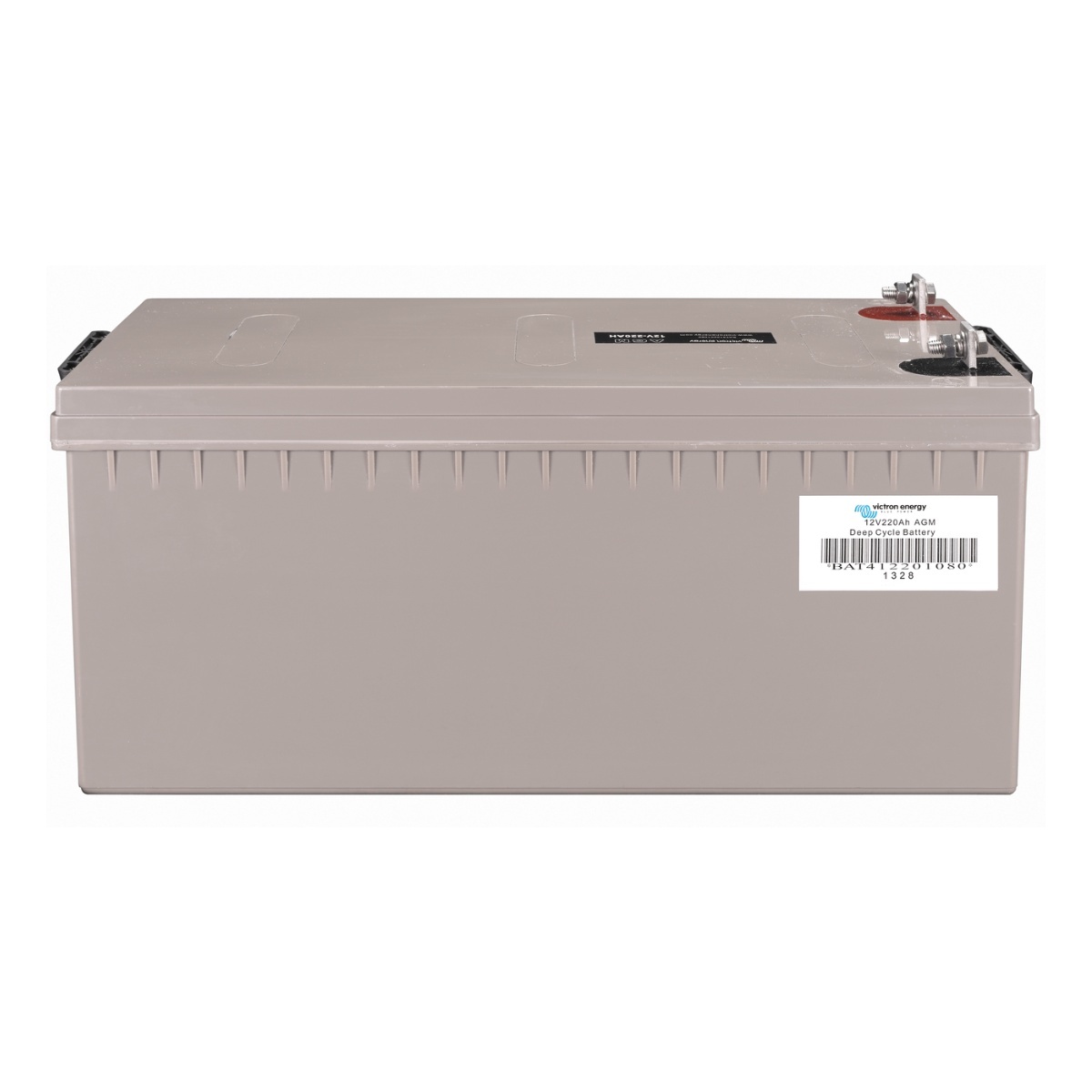

The Victron 12V/220Ah AGM Deep Cycle Batt. (M8) is a high-capacity 12V deep cycle battery designed to offer superior performance and longevity. Engineered with Valve Regulated Lead Acid (VRLA) technology, this battery is maintenance-free and features a sealed design that prevents gas leakage except in cases of overcharging or cell failure.

Key Features:

  • Advanced Valve Regulated Lead Acid (VRLA) Technology
  • Low Self-Discharge Rate
  • Exceptional Deep Discharge Recovery
  • Extended Service Life
  • Temperature Tolerance
  • Optimised Charging

Advanced AGM Technology for High Current Delivery

Featuring Absorbent Glass Mat (AGM) technology, the BAT412201084 excels in delivering high currents for short durations. The electrolyte is absorbed into a glass-fibre mat, providing enhanced safety and reliability. This design is particularly effective for applications requiring immediate power bursts.

Enhanced Gel Technology for Extended Service Life

For those requiring even greater durability, the BAT412201084 also benefits from advanced Gel technology. This design immobilises the electrolyte as a gel, which not only improves the cycle life of the battery but also delivers better overall performance compared to AGM batteries in longer-term applications.

Outstanding Self-Discharge and Recovery

The BAT412201084 is engineered to minimise self-discharge, with a rate of less than 2% per month at 20°C. This ensures that the battery retains its charge for extended periods without needing frequent recharging. Additionally, it offers exceptional recovery from deep discharges, making it a reliable choice for demanding applications.

Optimised Performance Across Temperature Ranges

This battery is designed to perform optimally across a range of temperatures. It maintains a high capacity even at elevated temperatures, though high temperatures do affect service life. The Victron Energy BAT412201084's effective design ensures reliable performance and longevity in diverse environmental conditions.

This item must be installed by a licensed Electrician

Category Specification Details
Model Version BAT412201085 12 Volt Deep Cycle AGM Battery
Capacity Rated Capacity 220 Ah (20 hr discharge at 25 °C)
Voltage Nominal Voltage 12 V
Physical Dimensions (L × W × H) 522 × 238 × 240 mm
Weight Net Weight 65 kg
Performance CCA @ 0 °F 650
  Reserve Capacity @ 80 °F 250 minutes
Design Life Float Design Life 12 years at 20 °C
  Cycle Design Life 500 cycles at 80% discharge, 750 cycles at 50% discharge, 1800 cycles at 30% discharge
Technology Battery Type Flat Plate AGM
Material Terminals Copper
SKU VIC.BAT412201085
Model # BAT412201085
UPC/EAN 8719076037095
Brand Victron Energy
Shipping Weight 63.6880kg
Shipping Width 0.550m
Shipping Height 0.270m
Shipping Length 0.270m
Shipping Cubic 0.040095000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
