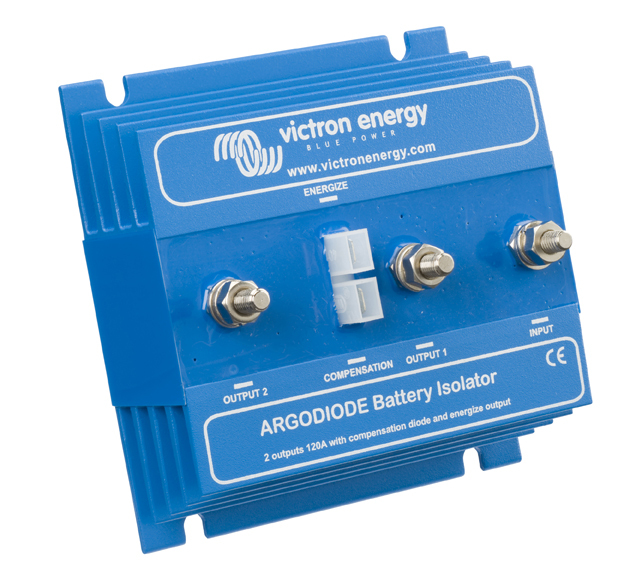

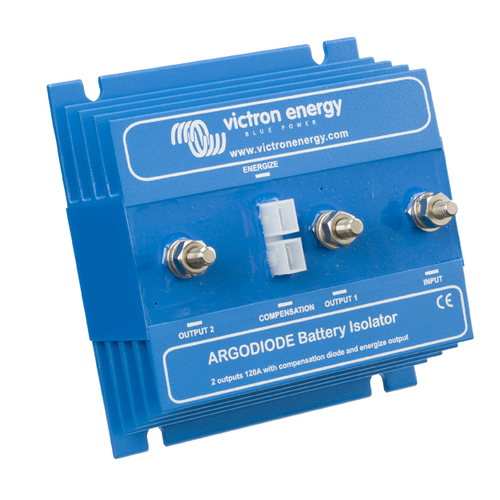

Argodiode Battery Isolators allow simultaneous charging of two batteries from one alternator, without connecting the batteries together. Discharging the accessory battery for example will not result in also discharging the starter battery.

The ArgoDiode battery isolators feature a low voltage drop thanks to the use of high-efficiency Schottky diodes: at low current, the voltage drop is approximately 0.3 V and at the rated output approximately 0.45 V

This Argodiode Battery Isolator is fitted with a compensation diode that can be used to slightly increase the output voltage of the alternator. This compensates for the voltage drop over the diodes in the isolator.

Alternator energize input

Some alternators need DC voltage on the B+ output to start charging. Obviously, DC will be present when the alternator is directly connected to a battery. Inserting a Diode or FET splitter will however prevent any return voltage/current from the batteries to the B+, and the alternator will not start. The new ‘AC’ diode isolators feature a special current limited energize input that will power the B+ when the engine run/stop switch is closed.



Argodiode Battery Isolator Specifications

80-2AC
Maximum charge current (A) 80
Maximum alternator current (A) 80
Number of batteries 2
Alternator Energize Input Yes
Connection M6 Studs
Compensation diode and
Energize connection		 6.3 mm
Faston
Weight kg 0.6
Dimensions h x w x d in mm 60 x 120 x 90



SKU VIC.ARG080201000
Model # ARG080201000
UPC/EAN 8719076018971
Brand Victron Energy
Shipping Weight 0.6980kg
Shipping Width 0.140m
Shipping Height 0.080m
Shipping Length 0.110m
Shipping Cubic 0.001232000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
