Note: Not suitable for 24-volt or Lithium batteries or models over 20A


After using or charging a battery it takes about 30 minutes for the battery to regain its steady state condition and for the panel to show a correct status indication.

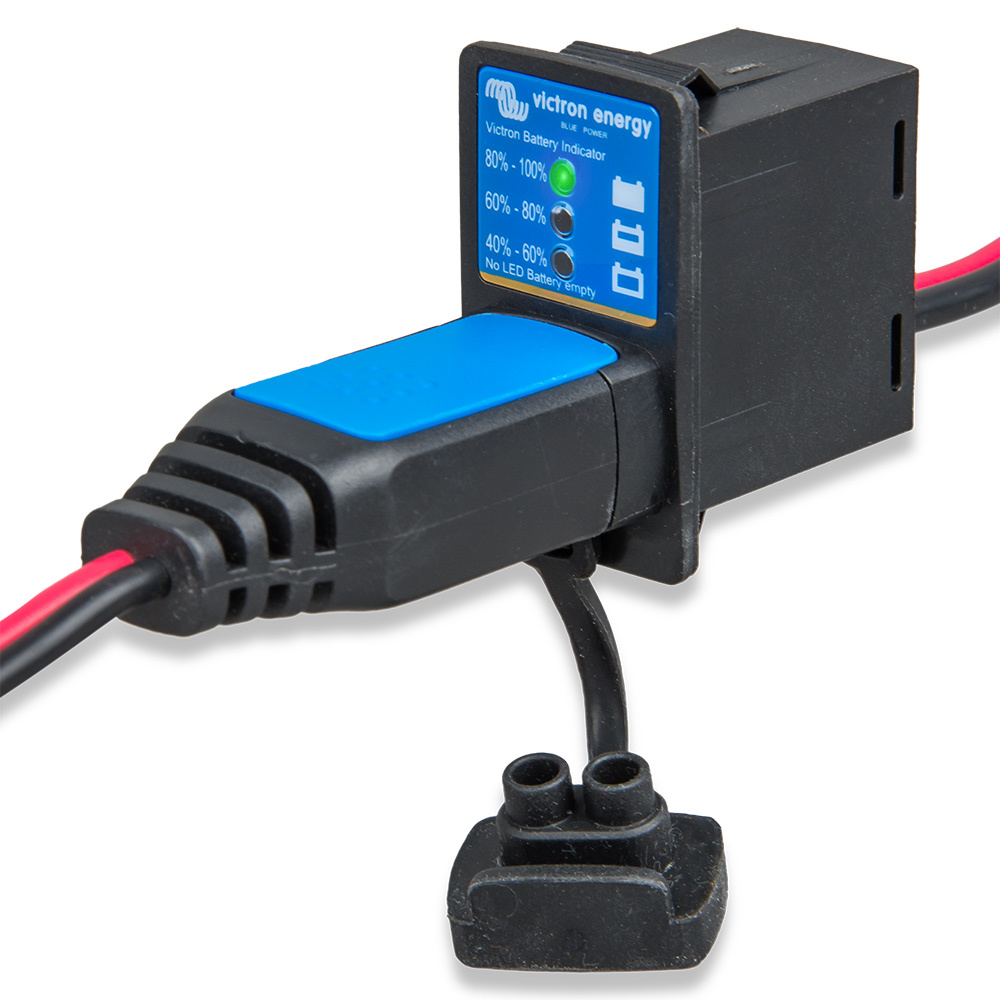

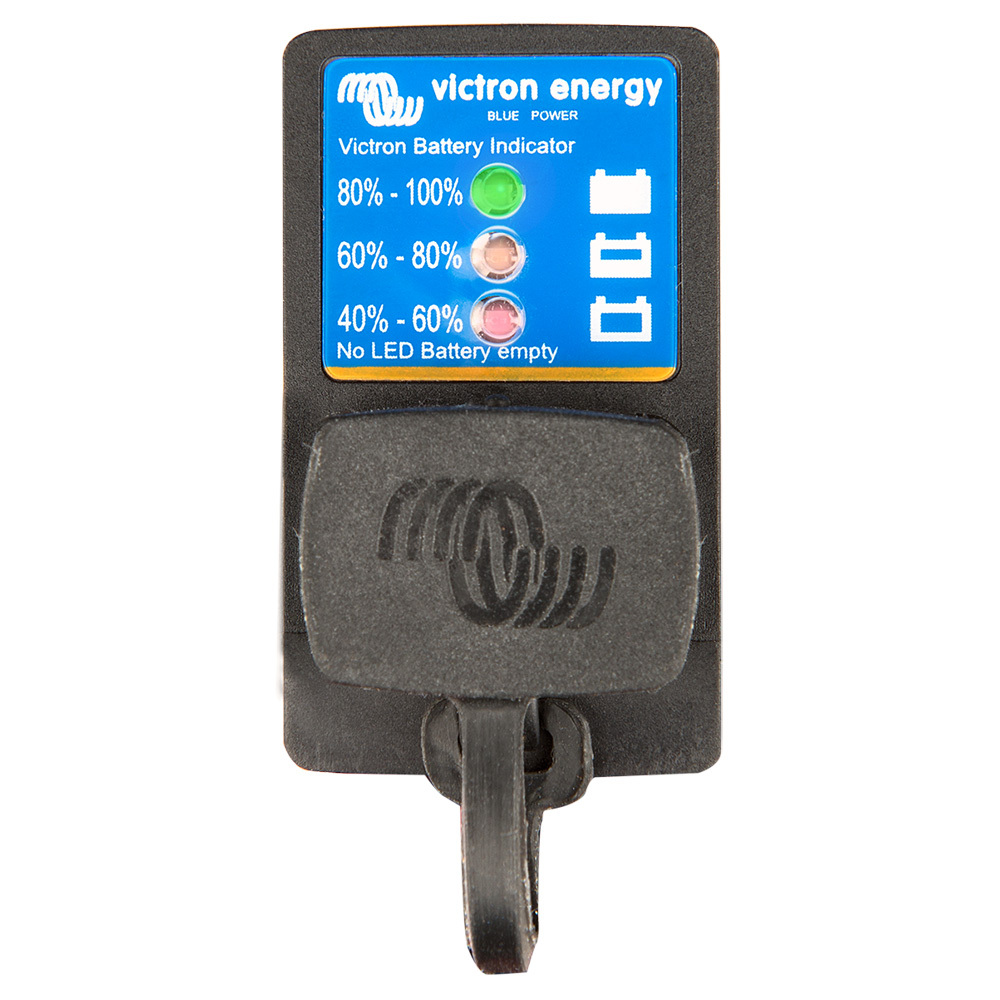

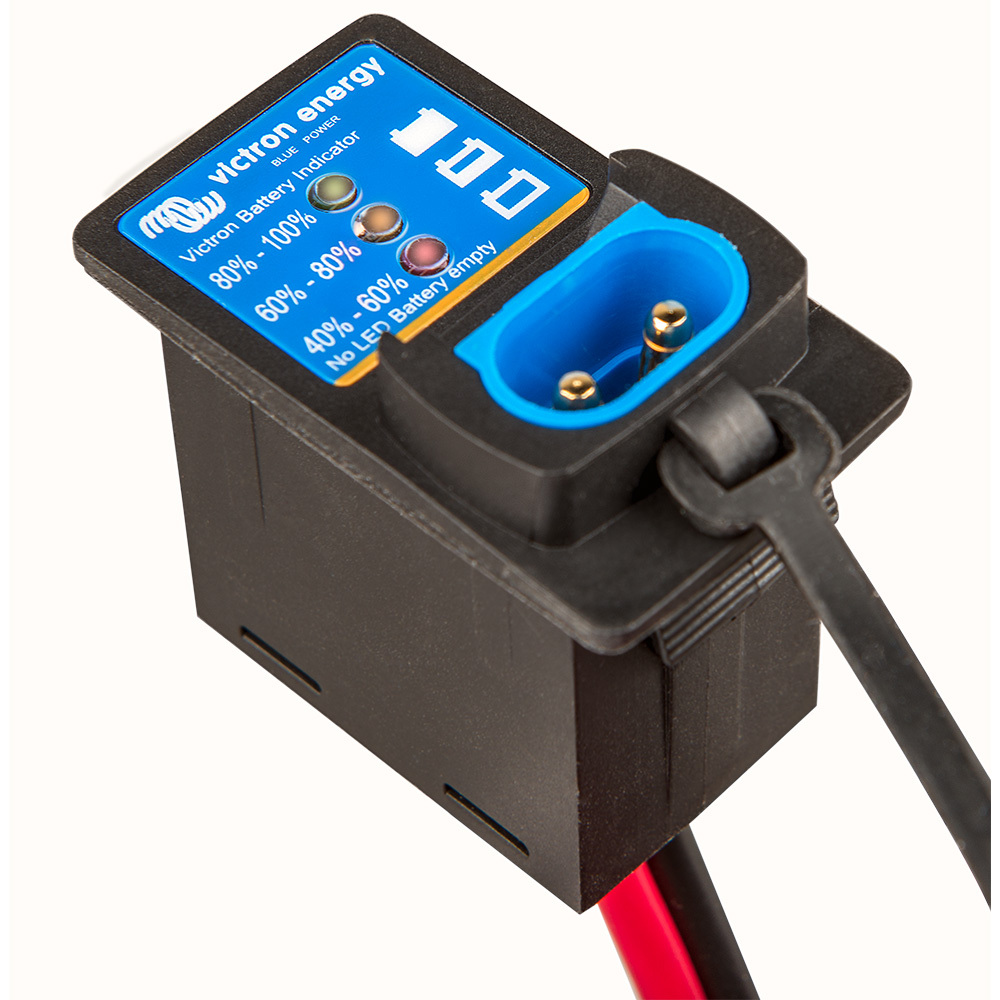

  • Green light: Battery does not need to be charged. Battery 80%-100%
  • Orange light: Battery can be charged. Battery 60%-80%
  • Red light: Battery needs charging. Battery 40%-60%
  • No light: charge immediately to prevent sulfation. Battery <40%



Dimensions:

  • Front Face - 26mm Wide x 45mm Height
  • Panel cut-out - 22-23mm Wide x 40-41mm Height
  • Depth - 33mm
  • Dimension Drawing - Battery Indicator Panel

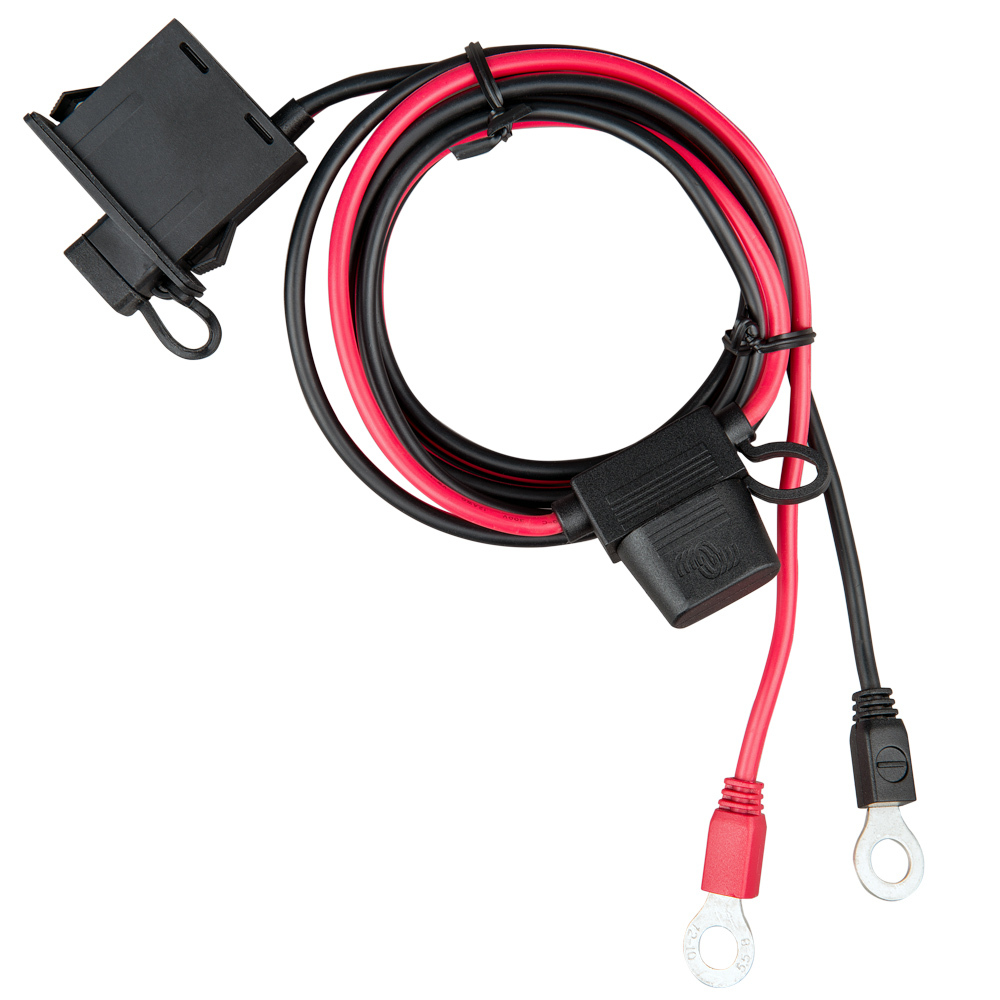

  Battery Indicator Panel Battery Indicator Eyelet
Voltage 6-15V 6-15V
Back current drain 0.9mA 0.9mA
Maximum Current 30A 30A
Length of cable 1.5m 0.3m
Cable diameter 3.3mm2 [AWG12] 3.3mm2 [AWG12]
Panel cut-out 39x22mm -
Size 45x26x50mm 22x18x55mm
Battery connection type M8 Eyelet connectors M8 Eyelet connectors
Fuse 30A ATO fuse 30A ATO fuse
Weight 0.17kg 0.17kg
Protection category IP65 IP65
SKU VIC.BPC900110114
Model # BPC900110114
UPC/EAN 8719076043072
Brand Victron Energy
Shipping Weight 0.2000kg
Shipping Width 0.080m
Shipping Height 0.140m
Shipping Length 0.040m
Shipping Cubic 0.000448000m3
Unit Of Measure ea
