The BMV monitors the voltage and current of a single battery bank and calculates power, state-of-charge, and time-to-go. Data can be transferred to smartphones or computers with the optional Bluetooth dongle and external alarms can be triggered with the relay contact.

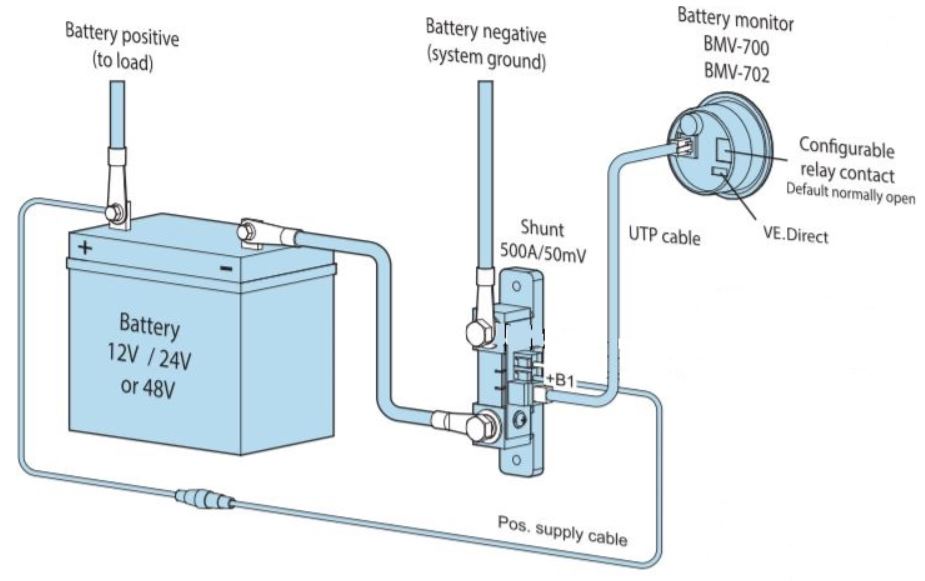

Installation is simply a case of connecting the supplied shunt in the negative battery cable, mounting the monitor in a 52mm diameter hole and connecting the wires. An optional wall enclosure is available if surface mounting is preferred.



How to set up a Victron BMV Battery Monitor for lead and lithium batteries



Whats in the box?

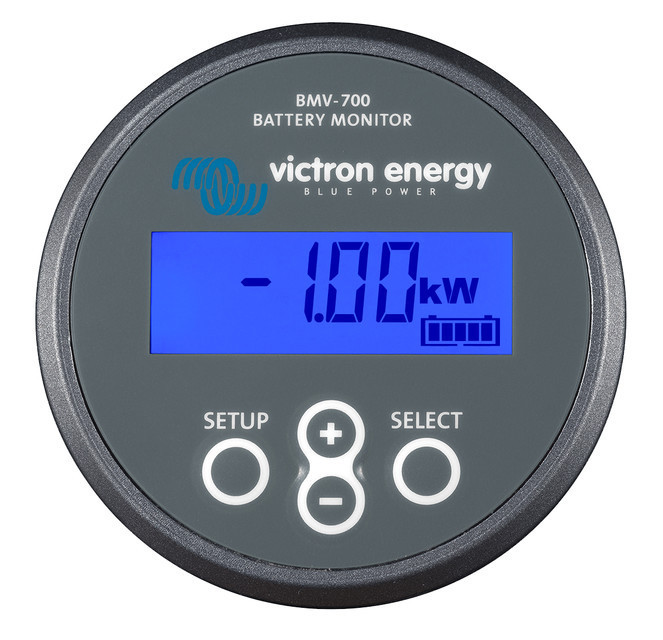

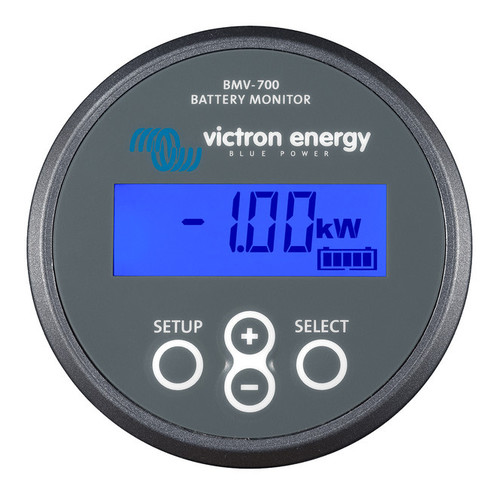

  • BMV 700 battery monitor

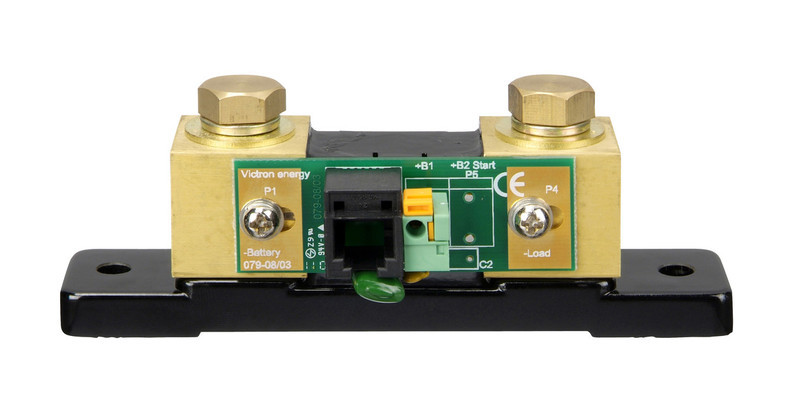

  • 500A shunt and adapter board
  • 10m cable to connect shunt to BMV
  • Positive voltage sense wire with fuse
SKU VIC.BAM010700000R
Model # BAM010700000R
UPC/EAN 8719076020073
Brand Victron Energy
Shipping Weight 1.0500kg
Shipping Width 0.230m
Shipping Height 0.280m
Shipping Length 0.070m
Shipping Cubic 0.004508000m3
