This main battery switch provides both surface or panel mount options providing flexibility when installing. Great as a master isolator switch from battery boxes through to Caravan/RV and Marine purposes. Features ignition protection making it suitable for engine rooms. The knob is also removable for isolation/safety.

Battery Switch Specifications
Max. continuous current 275 A
One minute rating 455 A
Cranking rating 1250 A
Voltage rating 48 V
Terminal material Tin-plated copper
Hex nut material Tin-plated copper
Terminal diameter 3/8 inch / 9.53 mm
Recommended torque 70 lbf·inch / 8 N·m
Base material Glass fiber reinforced nylon
Weight 0.4 lb / 0.2 kg

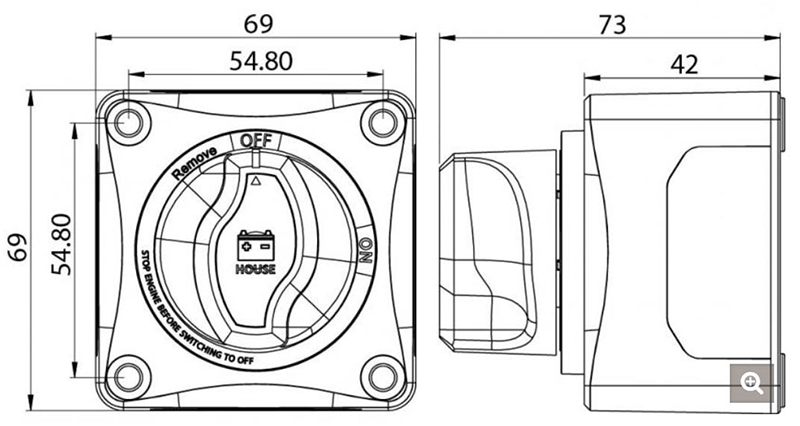

Dimensions (hxwxd) 1.8 x 6.0 x 1.25 inch
69 x 69 x 73 mm
Mounting Surface or rear panel mount
Ignition protected ISO8846 / SAE J1171





SKU VIC.VBS127010010
Model # VBS127010010
UPC/EAN 8719076052258
Brand Victron Energy
Shipping Weight 0.3000kg
Shipping Width 0.170m
Shipping Height 0.090m
Shipping Length 0.110m
Shipping Cubic 0.001683000m3
Unit Of Measure ea
