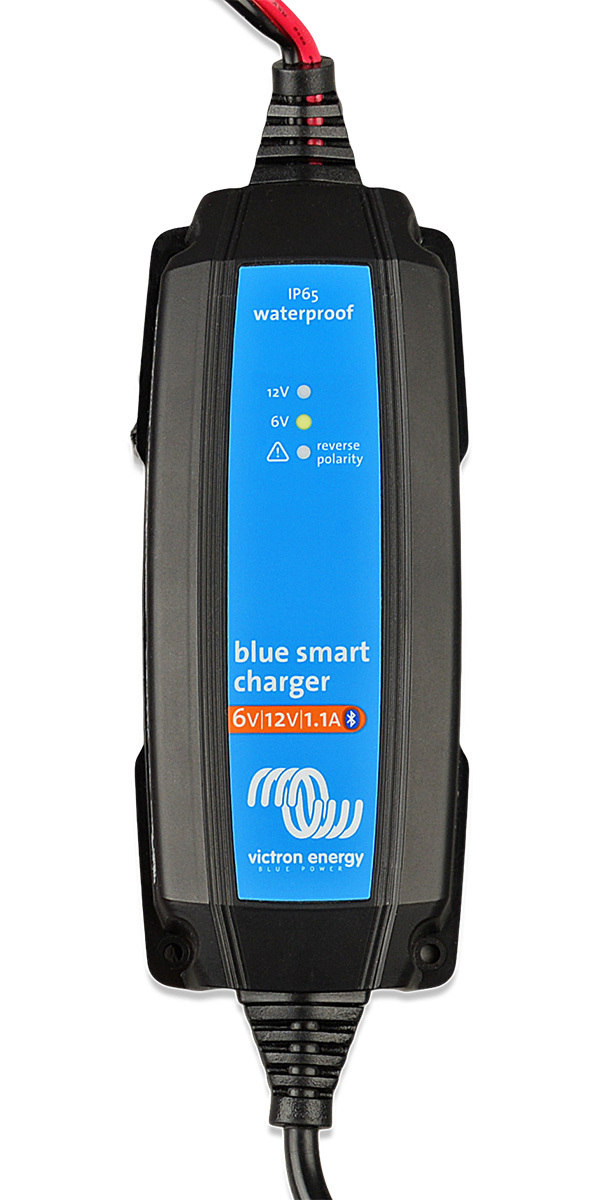

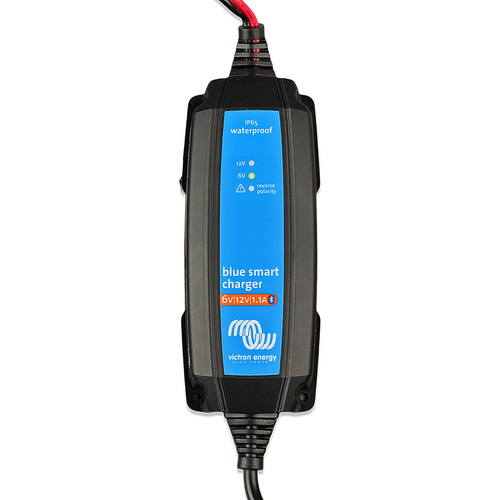

Victron Blue Smart IP65 Battery Charger

The Blue Smart IP65 Charger is a professional battery charger packed with features such as built-in Bluetooth to the Victron Connect App (Available on both iOS and Android). The Blue Smart IP65 Battery Chargers are ideal for use on cars, camper vans, caravans, RV's, tractors, motorcycles and boats and in the garage or on the farm.


Features:

  • Water, dust and chemical resistant
  • Seven step smart charge algorithm
  • Potential recovery of fully discharged ‘dead’ batteries
  • Automatic power supply function
  • Severe cold performance: down to -30°C
  • Several other battery life enhancing features
  • Temperature compensated charging
  • Low power mode to charge smaller batteries
  • Li-ion battery mode
  • Ultra high 95% efficiency “green” battery charger
  • Setup and configure, readout of voltage and current by Bluetooth Smart


The battery is charged, smartly and to perfect condition

The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life. Victron Blue Smart Chargers also feature a Storage Mode for less corrosion of the positive plates, typically most chargers only offer up to a float mode, the problem is that the lower float charge voltage that follows the absorption period will cause grid corrosion. It is therefore essential to reduce the charge voltage even further when the battery remains connected to the charger for more than 48 hours.


Recovery of deeply-discharged 'dead' batteries

Unlike other brands, the Blue Smart IP65 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.


Connect the battery with ease with Quick Fit connection

The charger comes supplied with both alligator clips and M8 eyelets - making it easy to connect to the battery. If you wish, you can leave it permanently connected to your battery. Additional Quick Connects and Accessories are also available to purchase separately.

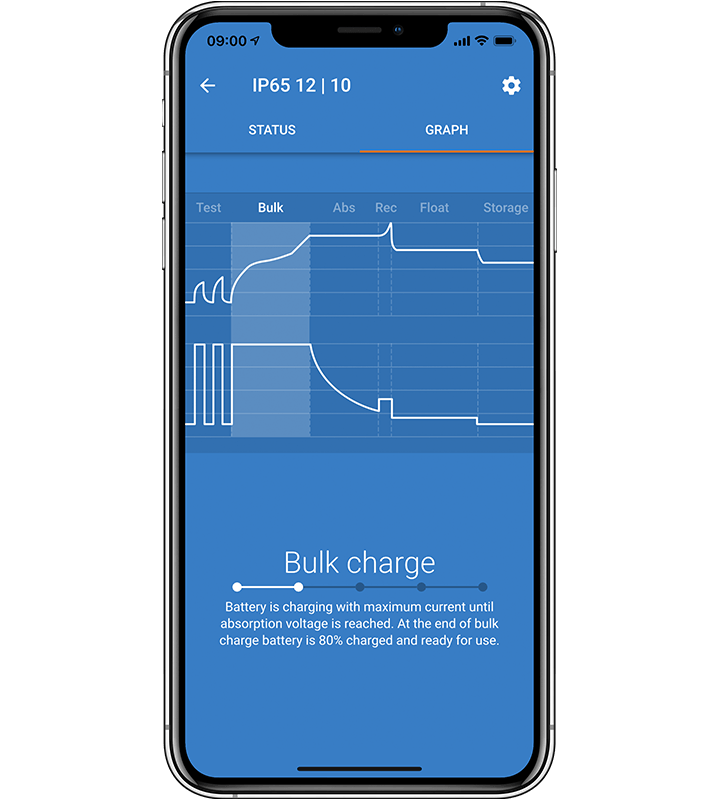

Check the status of your battery remotely

The Blue Smart IP65 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app. The VictronConnect app allows you to set up, readout and configure your Blue Smart IP65 Charger via your smartphone (Apple and Android). You can display the status of your charger and battery and even control the functions of your charger using the VictronConnect app. On your screen, the readout of voltage and current is default available.


Battery Reconditioning

A lead-acid battery that has been insufficiently charged or has been left discharged during days or weeks will deteriorate due to sulfation. If caught in time, sulfation can sometimes be partially reversed by charging the battery with a low current up to a higher voltage.






Blue Smart IP65 Charger

6 V/12 V - 1.1 A

Input voltage and frequency range 100 - 250VAC | 45 - 65Hz
Efficiency 82%
Minimum battery voltage Starts charging from down to 0 V
Charge voltage 'absorption' Normal: 7.2 V | 14.4 V
High: 7.35 V | 14.7 V
Li-ion: 7.1 V | 14.2 V
Charge voltage 'float' Normal: 6.9 V | 13.8 V
High: 6.9 V | 13.8 V
Li-ion: Disabled
Charge voltage 'storage' Normal: 6.6 V | 13.2 V
High: 6.6 V | 13.2 V
Li-ion: 6.75 V | 13.5 V
Charge current
Low current mode
1.1A
0.5A
Temperature compensation
(lead-acid batteries only)
8 mV/°C | 16 mV/°C
Back current drain 0.1 Ah/month (140uA)
Protection Reverse polarity, output short circuit, Over temperature
Operating temp. range -30 to +50°C
(full rated output up to 30°C)
Humidity (non-condensing) Max 95%
Charge algorithm 7-stage adaptive
Bluetooth -4dBm, 2402 – 2480 MHz
ENCLOSURE
Battery-connection Black and red cable of 1.5 metre
230V AC-connection 1.5m cable with AS/NZS 3112 plug
Protection category IP65 (splash and dustproof)
Weight 0.4 kg
Dimensions (h x w x d) 38 x 64 x 153 mm
STANDARDS
Safety EN 60335-1, EN 60335-2-29
Emission EN 55014-1, EN 61000-6-3, EN 61000-3-2
Immunity EN 55014-2,EN 61000-6-1, EN 61000-6-2, EN 61000-3-3



SKU VIC.BPC120134014R
Model # BPC120134014R
UPC/EAN 8719076055150
Brand Victron Energy
Shipping Weight 0.7600kg
Shipping Width 0.280m
Shipping Height 0.050m
Shipping Length 0.180m
Shipping Cubic 0.002520000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
