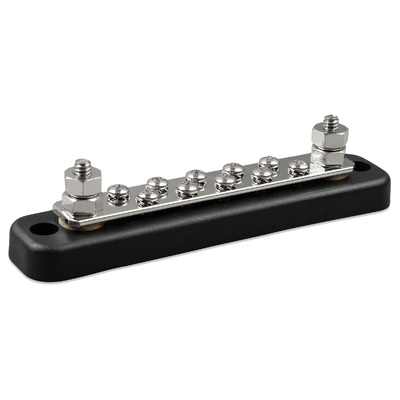

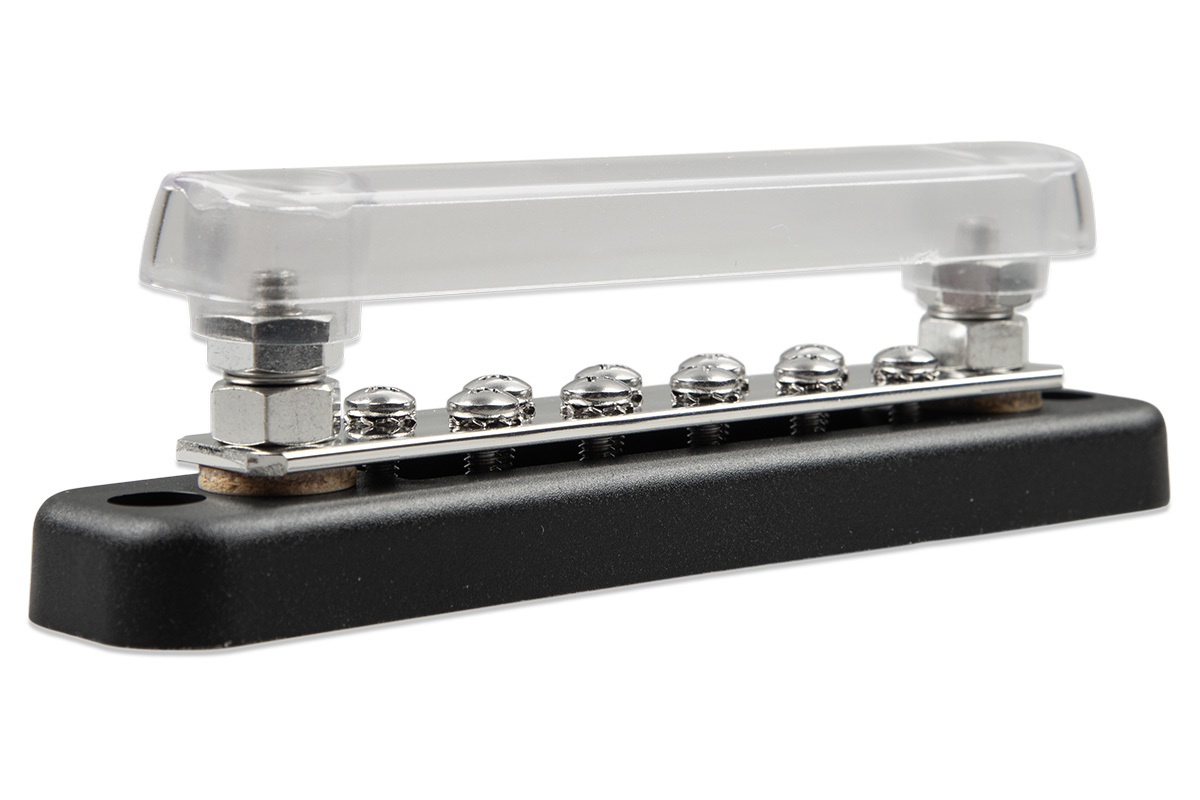

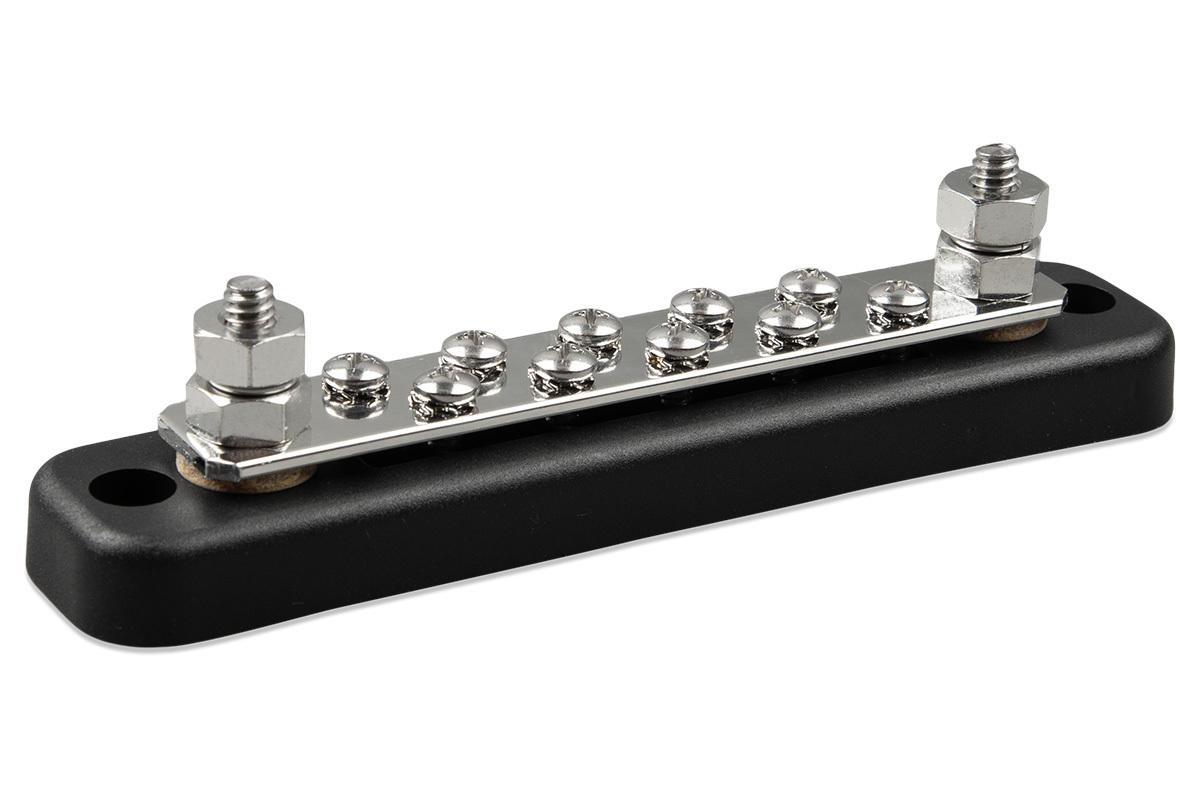

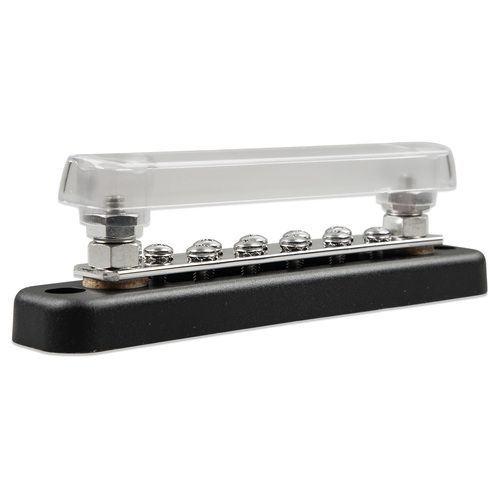

Busbar 150A  2P with 10 Screws and Cover
Max. current 150 A
Max. Voltage 70 VDC
Terminal diameter ¼ inch / 6.35 mm
Terminal height 0.67 inch / 17 mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 60 lbf·inch / 7 N·m
Terminal screws 8-32 / 4.2 mm
Terminal material Stainless steel
Busbar strip material Tin-plated copper (2.4 x 19 mm)
Base material ABS, black, UL 94 V-0
Cover material Clear Polycarbonate, UL 94 HB
Weight, 4 terminals 0,7 lb / 0,3 kg

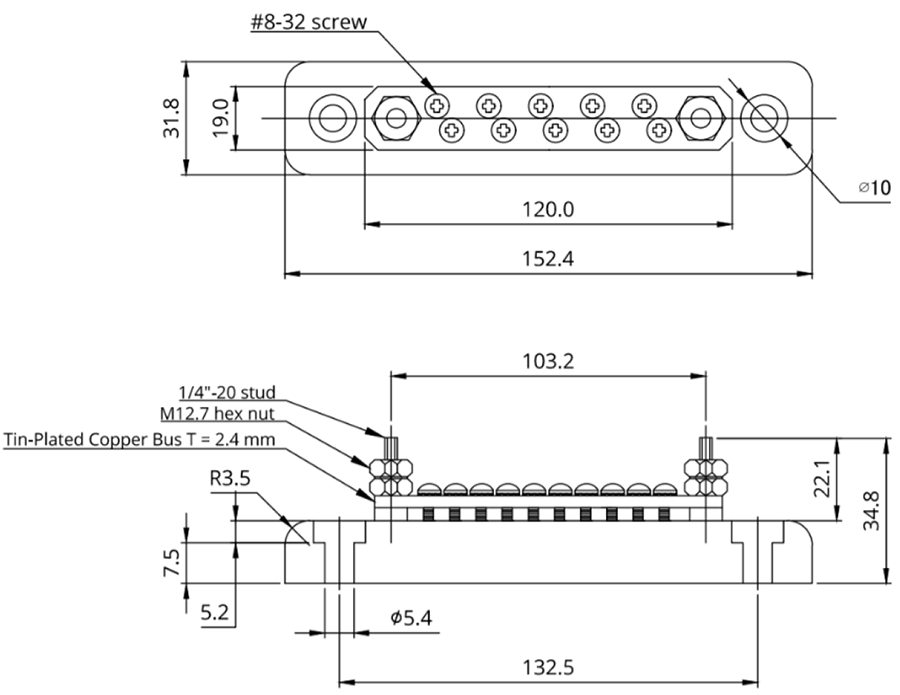

Dimensions (hxwxd)
(with cover)
1.8 x 6.0 x 1.25 inch
45 x 152,4 x 32 mm





SKU VIC.VBB115021020
Model # VBB115021020
UPC/EAN 8719076056355
Brand Victron Energy
Shipping Weight 0.1500kg
Shipping Width 0.025m
Shipping Height 0.016m
Shipping Length 0.200m
Shipping Cubic 0.000080000m3
Unit Of Measure ea
