Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

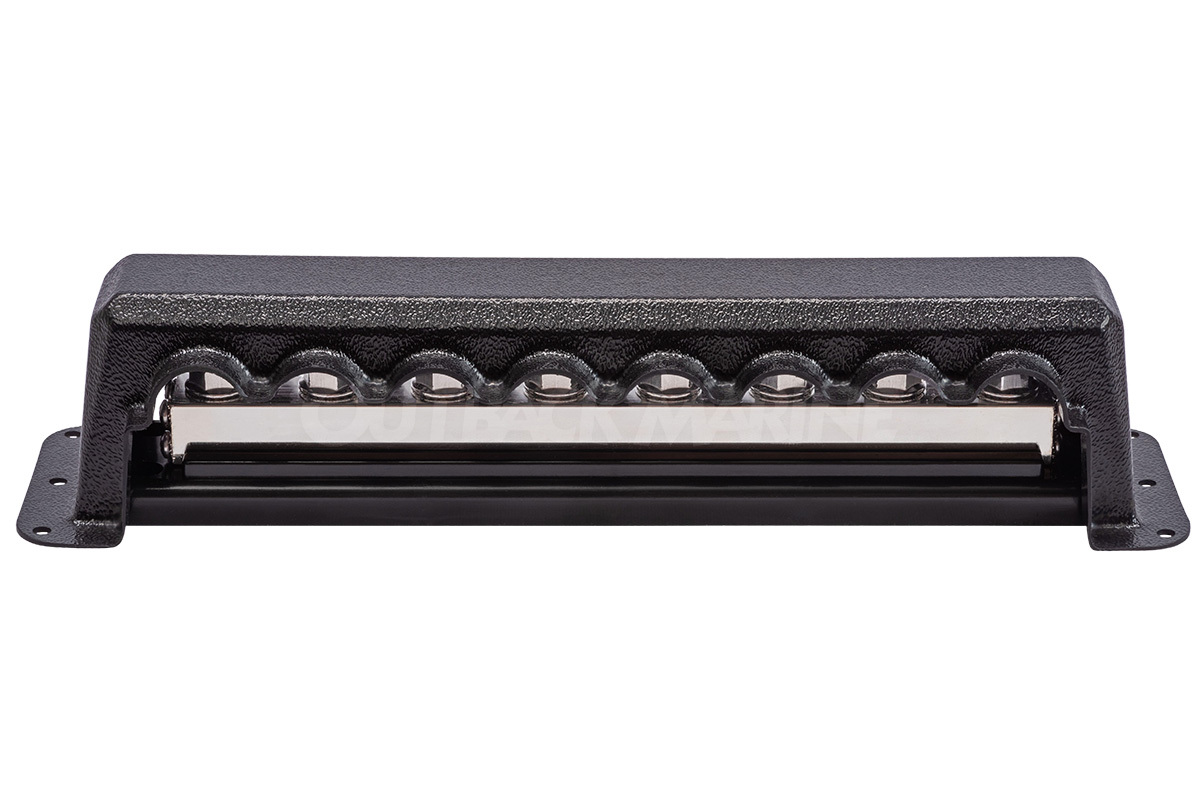

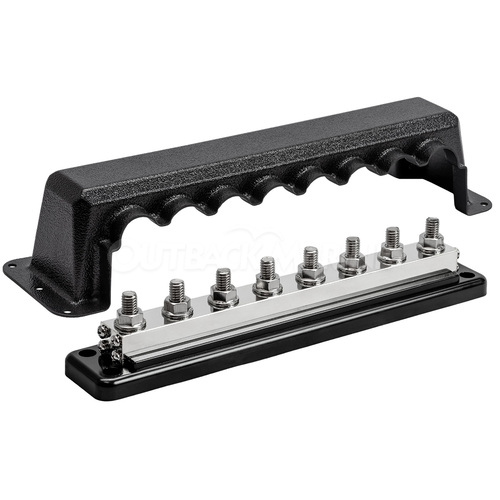

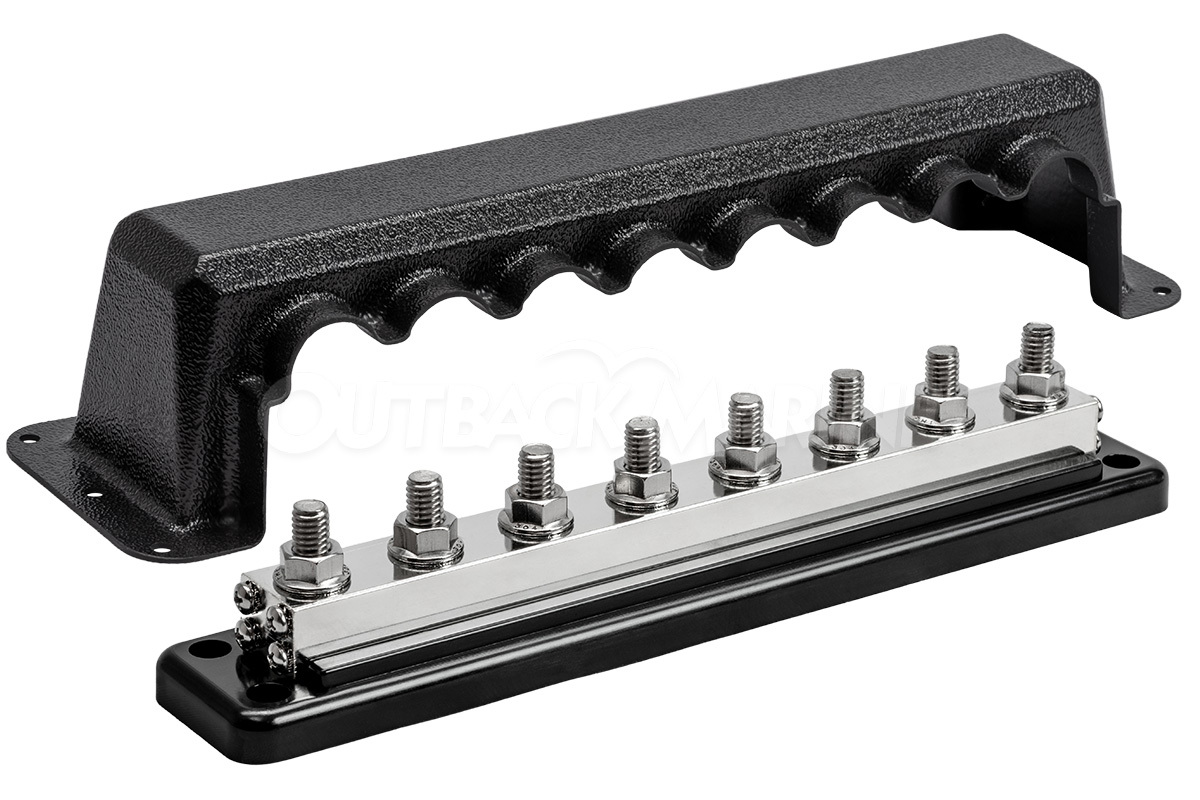

Busbar 600 A with cover
Max. current 600 A
Max. Voltage 70 VDC
Terminal diameter 3/8 inch / 9.53 mm
Terminal height 0.76 inch / 19 mm
Terminal material Stainless steel
Flange nut material Stainless steel
Recommended torque 180 lbf·inch / 20 N·m
Screw terminals diameter #8 (0.164 inch) / 4.2 mm
Screw material Stainless steel
Recommended torque 17 lbf-inch / 2 N·m
Busbar material Tin-plated copper (19 x 24 mm)
Base material ABS, black, UL 94 V-0
Cover material ABS, black, UL 94 V-2
Weight, 8 terminals 2.9 lb / 1.3 kg

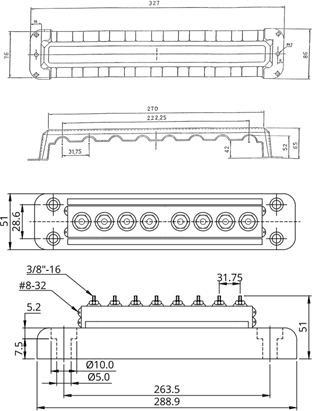

Dimensions (hxwxd) 2.6 x 12.9 x 3.4 inch
(with cover) 65 x 327 x 86 mm







SKU VIC.VBB160080010
Model # VBB160080010
UPC/EAN 8719076052234
Brand Victron Energy
Shipping Weight 1.3250kg
Shipping Width 0.070m
Shipping Height 0.090m
Shipping Length 0.350m
Shipping Cubic 0.002205000m3
Unit Of Measure ea
