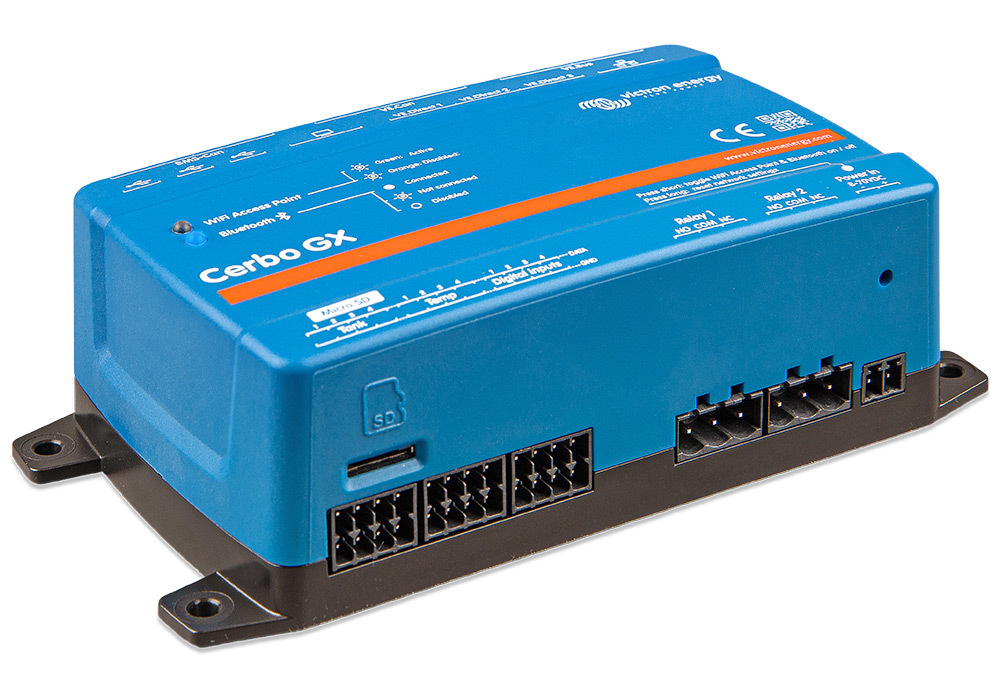

The Cerbo GX MK2 maximises the performance of your system's components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port, you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers.

Panels and system monitoring

The Cerbo GX MK2 acts as the communication hub of your energy system, but it brings new efficiencies. Wherever you are connecting through the Victron Remote Management (VRM) portal, or access directly using the included GX Touch 70, or the VictronConnect app (now with enhanced Bluetooth capabilities), the MK2 provides unparalleled system oversight and remote management capabilities.

Perfect monitoring & control

The Cerbo GX MK2 takes system monitoring and control to the next level. Track and manage the state of charge, power consumption, power generation (PV, generator, and mains), tank levels, and temperature measurements. The intuitive interface and robust remote management tools allow you to:

  • Set shore power input limits.
  • (Auto)start and stop generators.
  • Change settings to optimise the system remotely. The MK2 builds on the original by delivering a more seamless experience with improved hardware and connectivity options.

Maximise your system performance

The Cerbo GX MK2 expands on the original’s already impressive capabilities:

  • Dual CAN-bus ports for larger system integration.
  • NMEA 2000-out support for seamless integration with marine networks.

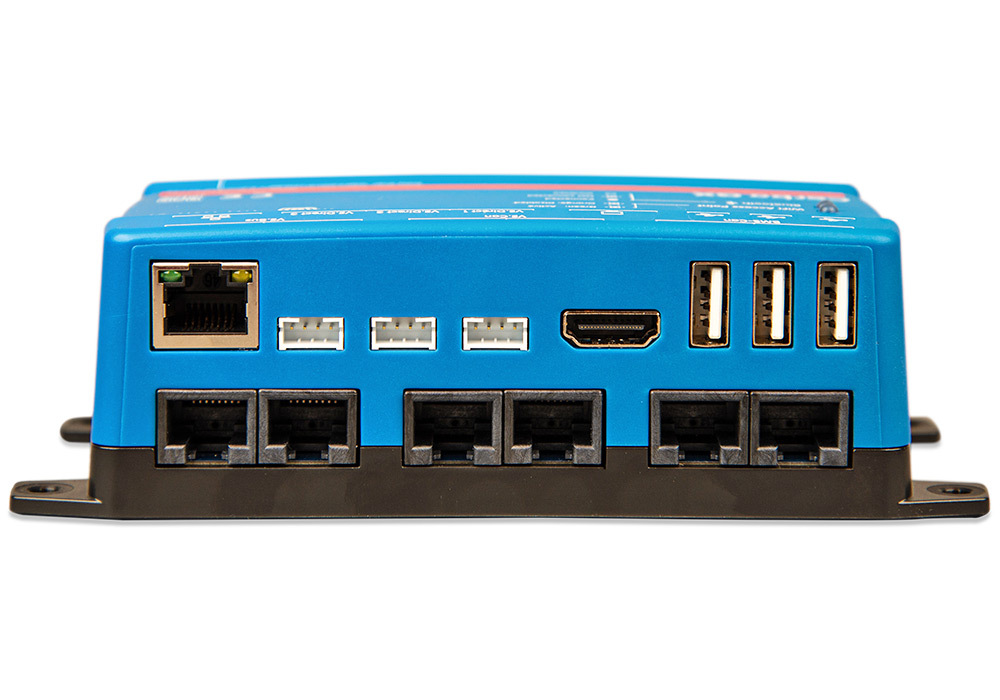

  • Enhanced connectivity with 3 VE.Direct ports, 3 USB ports, 4 digital inputs, and 2 relays.
  • Four tank and four temperature ports for extensive monitoring. The result is a smarter, more capable energy management centre that meets the needs of both residential and commercial users.

Expand your view

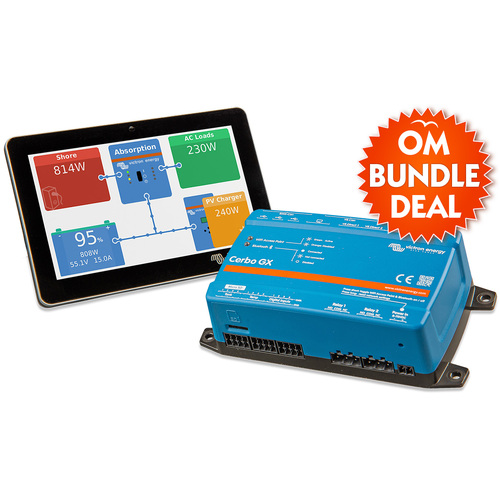

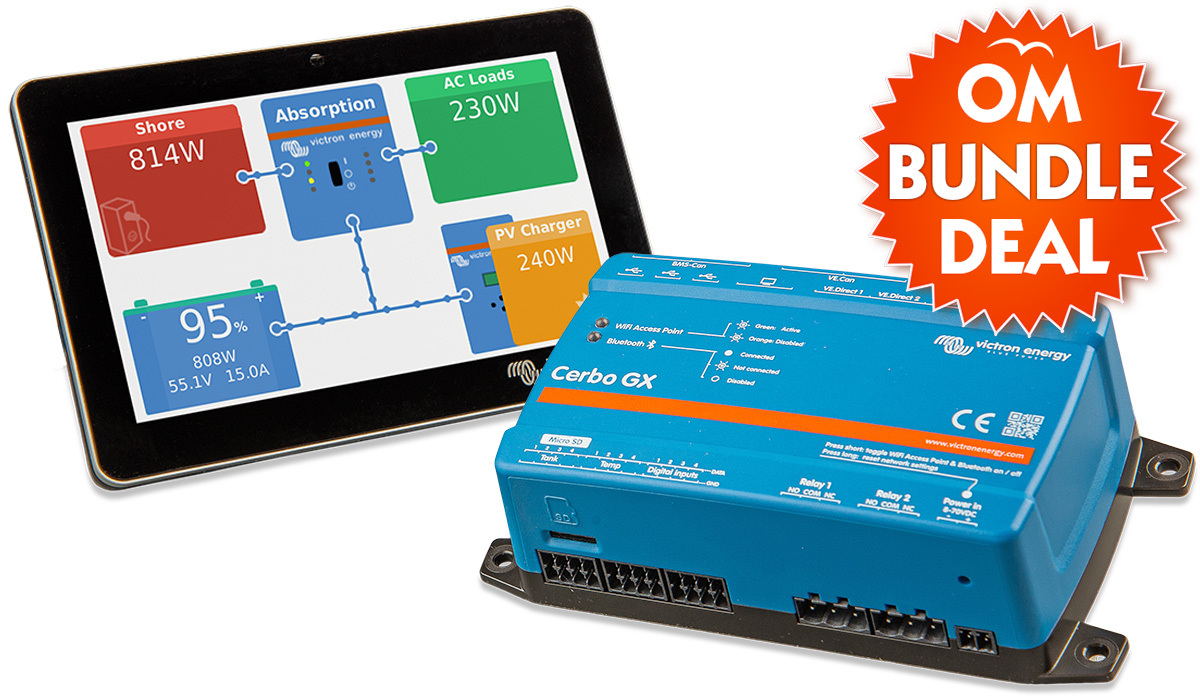

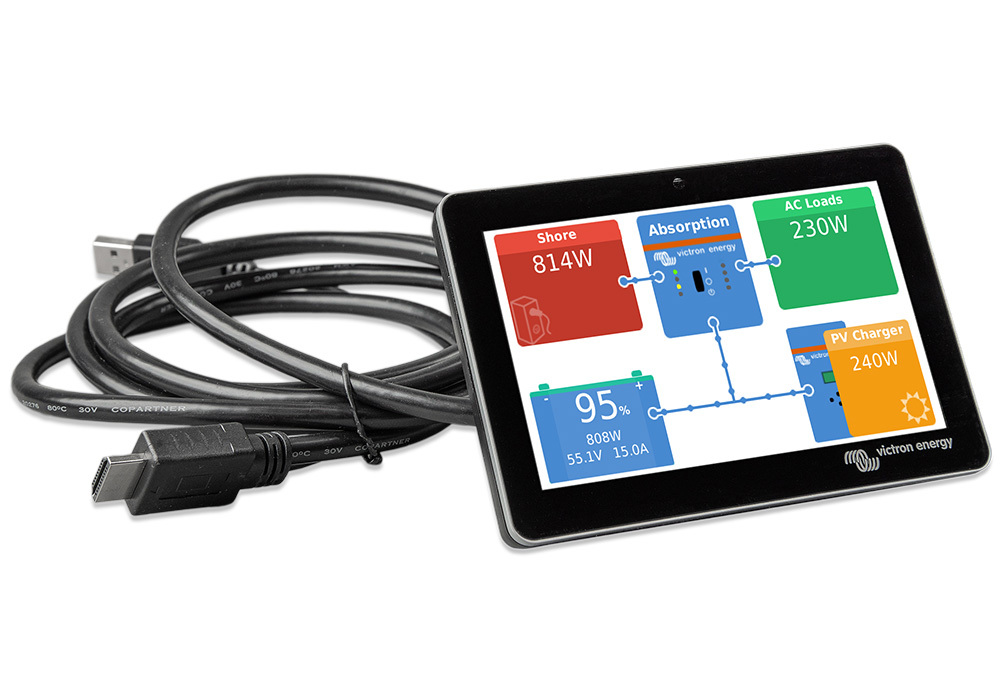

The GX Touch 70 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super-slim 7-inch waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.


Simple mounting and configuration

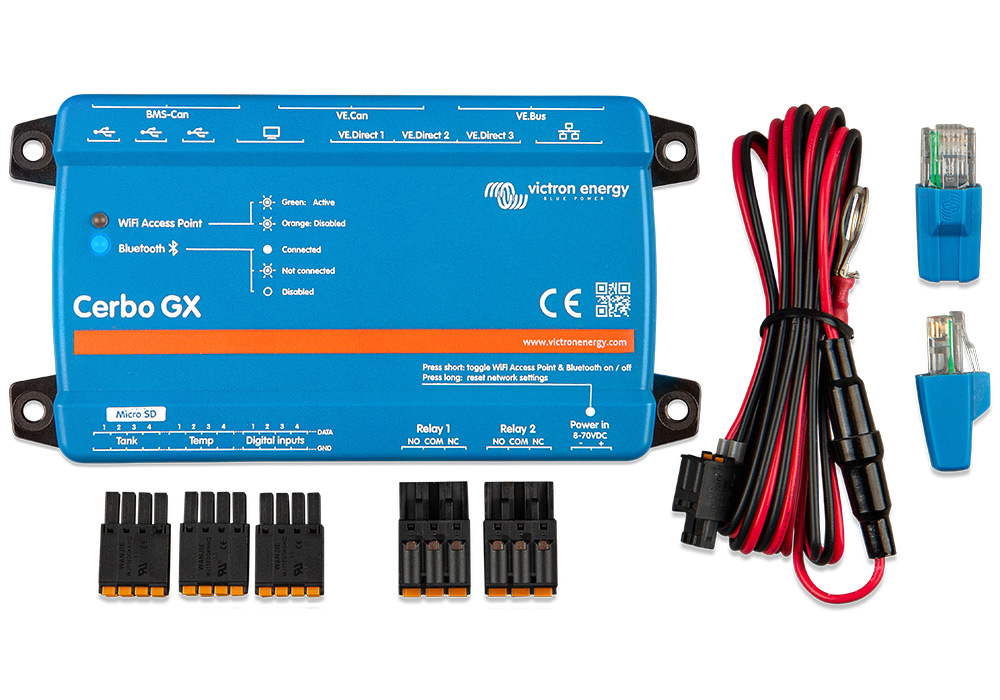

The Cerbo GX is now optimised to more than meet the standards of installer professionals. The device is easily mountable on a DIN-Rail (with DIN35 adapter small, not included) and its separate touchscreen can now be bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the Color Control GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard. Its new Bluetooth feature enables a quick connection and configuration via our VictronConnect app.


Outsmart any power challenge

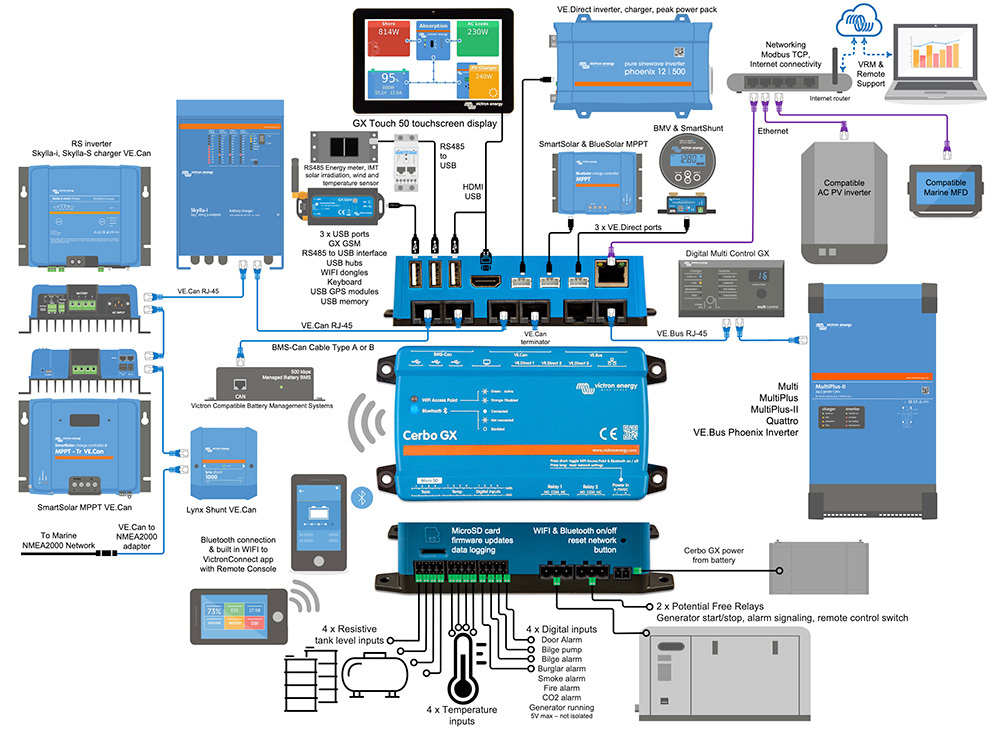

The Cerbo GX serves endless purposes, extending perfect control to the most diverse applications. For solutions including generators, such as Marine, or Backup & Off-grid, it will auto-start/stop your generator, or delay ignition until the end of ‘quiet’ periods. For Energy Storage Systems it keeps backup batteries at 100%, kicks in during power cuts and diverts excess (solar) power to self-consumption, saving you money. For RV and Emergency vehicles, it keeps vital systems functioning flawlessly. But that’s just to name a few...


Product Videos:

Cerbo GX Introduction

SKU VIC.CERBO_TOUCH_70
UPC/EAN 8719076048763
Brand Victron Energy
Shipping Weight 0.8500kg
Shipping Width 0.220m
Shipping Height 0.130m
Shipping Length 0.120m
Shipping Cubic 0.003432000m3
Unit Of Measure kit

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
