The GX LTE 4G-E is a versatile modem designed to provide reliable internet access to Victron GX devices through 2G, 3G, and 4G networks. This modem connects your GX system to the VRM Portal, enabling remote monitoring and management of your system from anywhere. Its broad compatibility across various network bands makes it ideal for installations in Europe, the Middle East, Africa, Korea, and Thailand, ensuring connectivity in diverse environments.

Key Features:

  • Multi-Network Connectivity (2G, 3G, and 4G)
  • Built-in GPS Receiver
  • GX Device Compatibility
  • Dedicated SIM Card Slot
  • Power Efficient

Integrated GPS for Enhanced Tracking

Equipped with a built-in GPS receiver, the GX LTE 4G-E offers additional features beyond internet connectivity. By connecting an optional active GPS antenna, users can track their system's location and set up geofencing through the VRM Portal. This functionality is particularly useful for mobile setups such as RVs, boats, and off-grid systems, adding a layer of security and control.

Easy Installation and Versatile Antenna Options

The GX LTE 4G-E is simple to set up, with easy integration into existing GX devices using a supplied USB connection and direct power input ranging from 8 to 70 VDC. It comes with an indoor LTE antenna, and for challenging environments, an optional outdoor antenna can be installed to extend range and reliability. This flexibility ensures that your system remains connected, even in remote or signal-challenging locations.



Model Version GX LTE 4G
Supported Networks 2G, 3G, 4G
Supported LTE Bands
  • GSM100100400: 1, 3, 5, 7, 8, 20, 38, 40, 41
  • GSM100200400: 2, 4, 12
  • GSM100300400: 1, 2, 3, 4, 5, 7, 8, 20, 28, 40, 66
GNSS Support GPS, Beidou, GLONASS, GALILEO, QZSS
SIM Card Type Mini SIM (supports 1.8V and 3V)
Data Transmission (max.)
  • LTE Cat-1: 10 Mbps / 5 Mbps
  • 3G (HSPA+): 42 Mbps / 5.76 Mbps
  • 2G (EDGE): 236.8 Kbps / 236.8 Kbps
  • 2G (GPRS): 85.6 Kbps / 85.6 Kbps
Power Supply Range 8 - 70 VDC
Power Consumption
  • 2.5 W during data transfer
  • <1.0 W in idle mode
  • +0.4 W if GPS is enabled
Operating Temperature Range -40 to +50 °C
Dimensions 106 × 42.5 × 22 mm
Weight 0.08 kg
USB Communication Port 1.0 m cable with USB-A connector
LTE Antenna Connector SMA Female
GPS Antenna Connector SMA Female

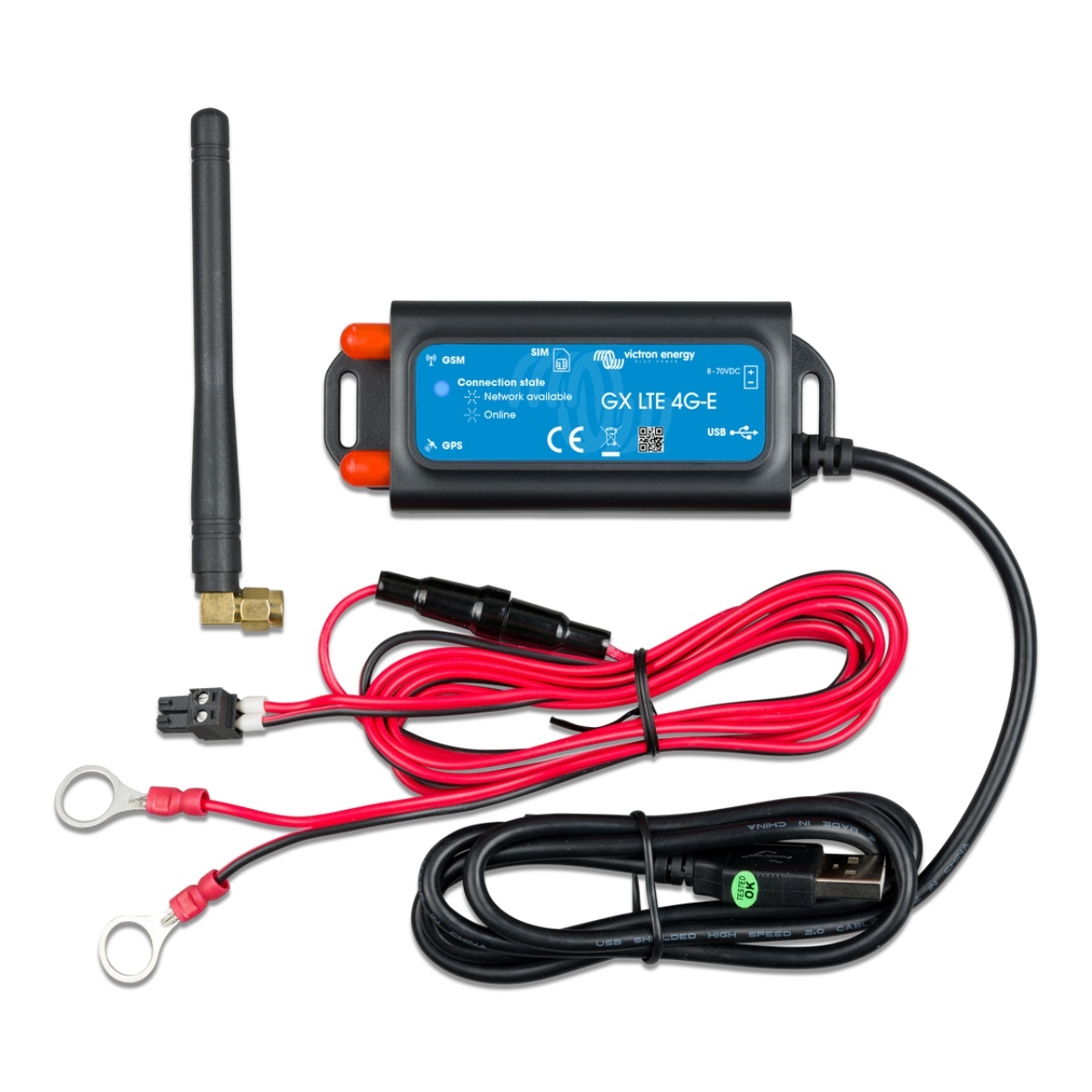

Included Accessories
  • GX LTE 4G with integrated USB cable
  • GSM 2G/3G/4G mini rod antenna
  • DC power cable with inline fuse
Standards
  • Safety: EN 60335-1, EN 60335-2-29, EN 62368-1
  • Emission / Immunity: ECE R10-5
  • QM: EN 9001:2015
SKU VIC.GSM100100400
Model # GSM100100400
UPC/EAN 8719076052937
Brand Victron Energy
Shipping Weight 0.0900kg
Shipping Width 0.035m
Shipping Height 0.085m
Shipping Length 0.110m
Shipping Cubic 0.000327000m3

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
