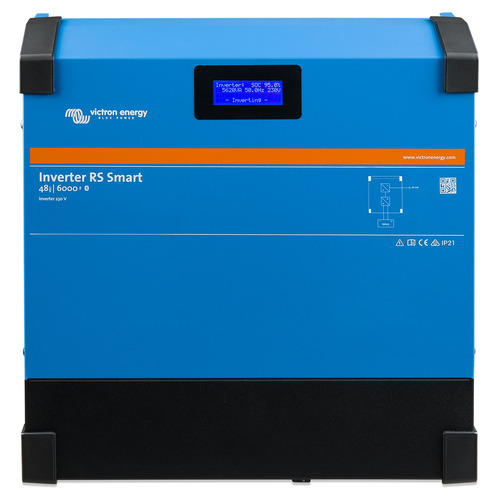

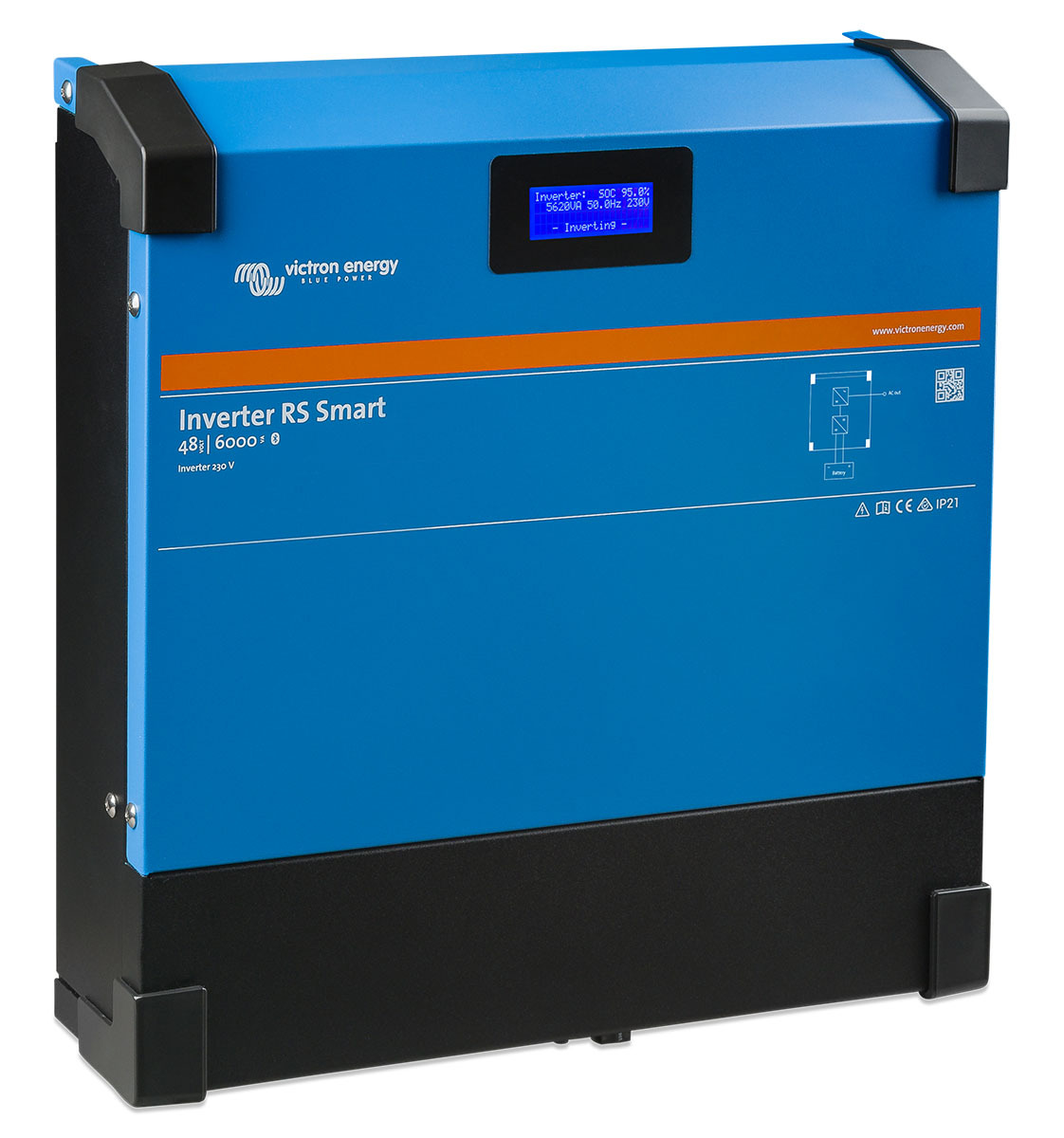

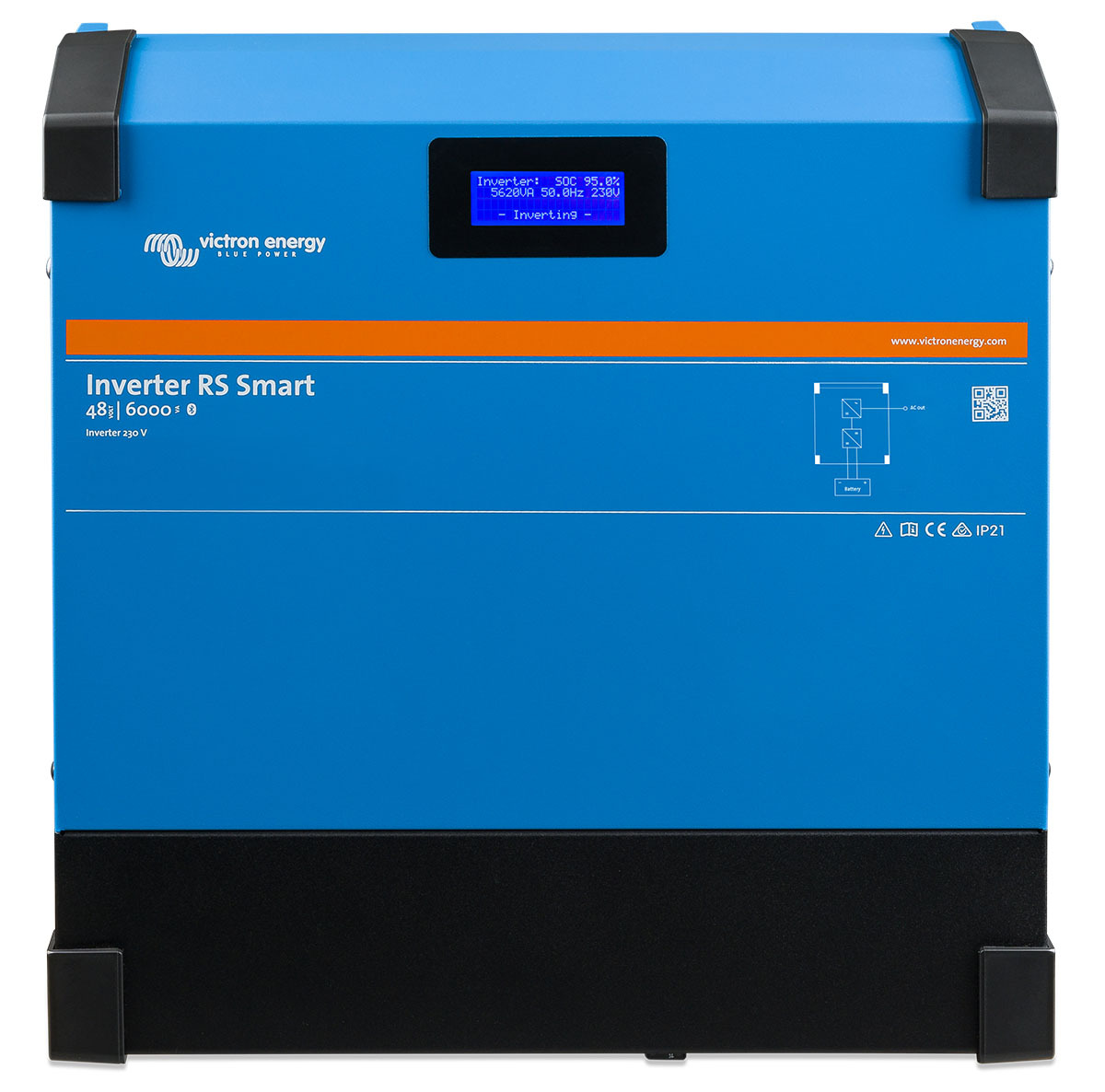

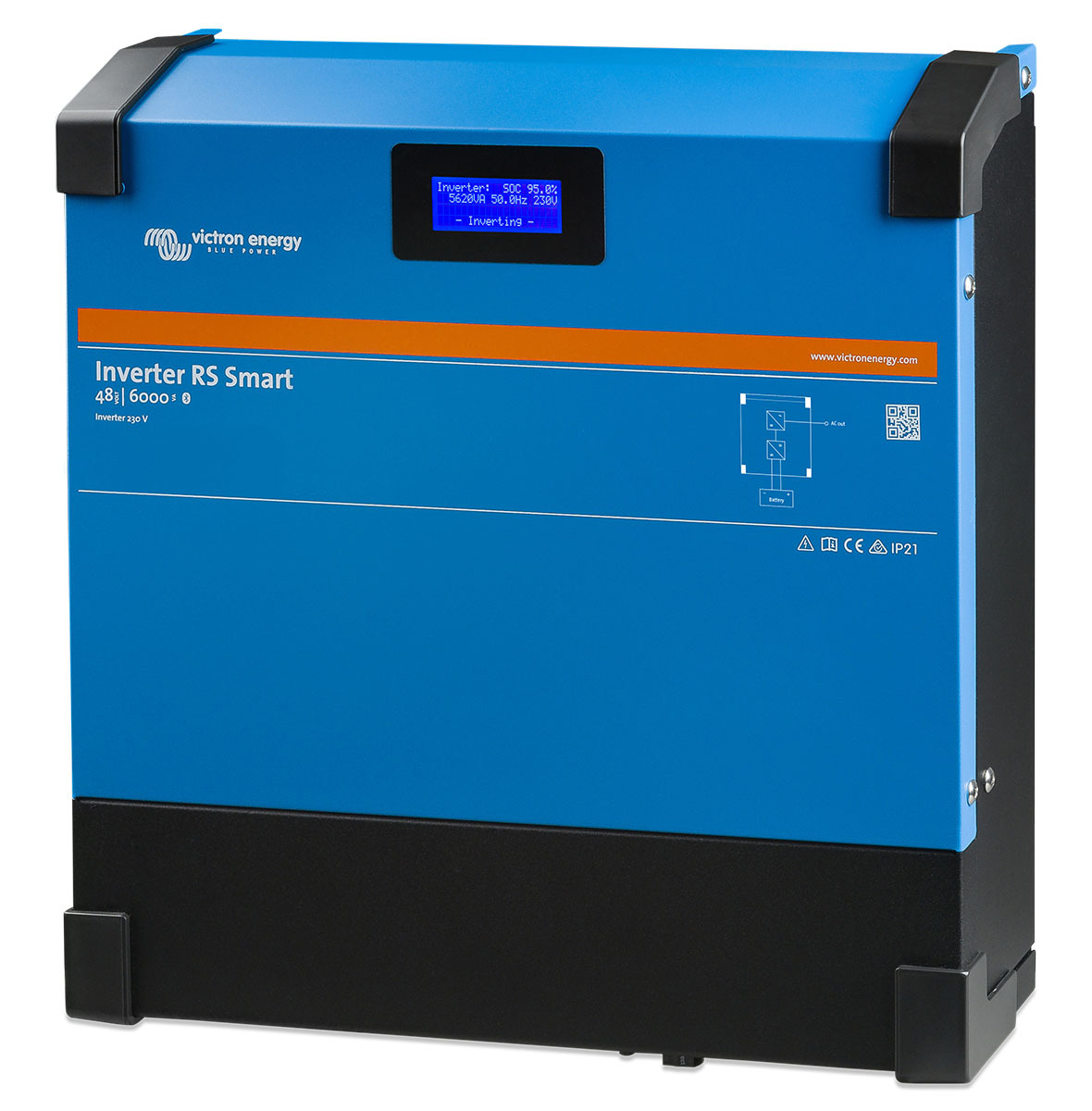

The Inverter RS Smart is a powerful 48VDC, 6kVA 230VAC inverter. It features a modern design and high frequency technology, weighing only 11kg and has excellent efficiency, low standby power, and very quiet operation.

The inverter is equipped with a display to read out battery and inverter details. These parameters can also be read out via Bluetooth by the VictronConnect app. In addition to this, the inverter has a VE.Can Port, for connection to a GX device for system monitoring.

Light weight, efficient and quiet

Thanks to high frequency technology and a new design this powerful inverter weighs only 11kg. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.

Display and Bluetooth

The display reads battery and inverter parameters.

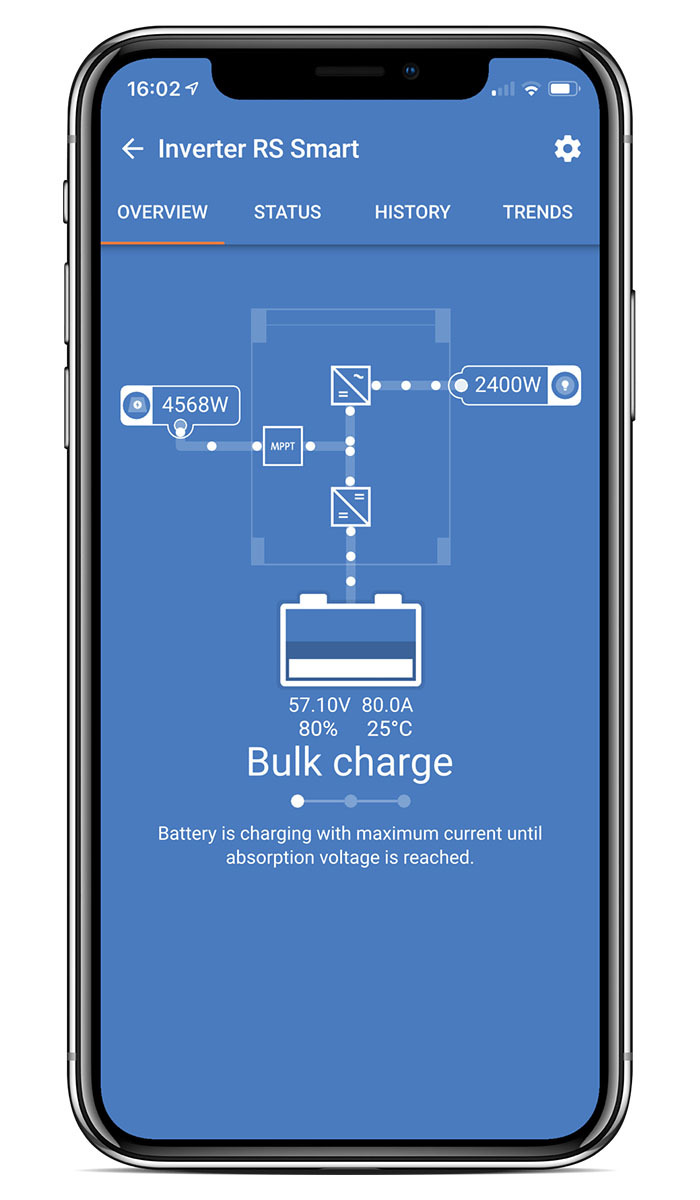

The same parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with VictronConnect.

VE.Can Port

For connection to a GX device for system monitoring, data logging, and remote firmware updates.

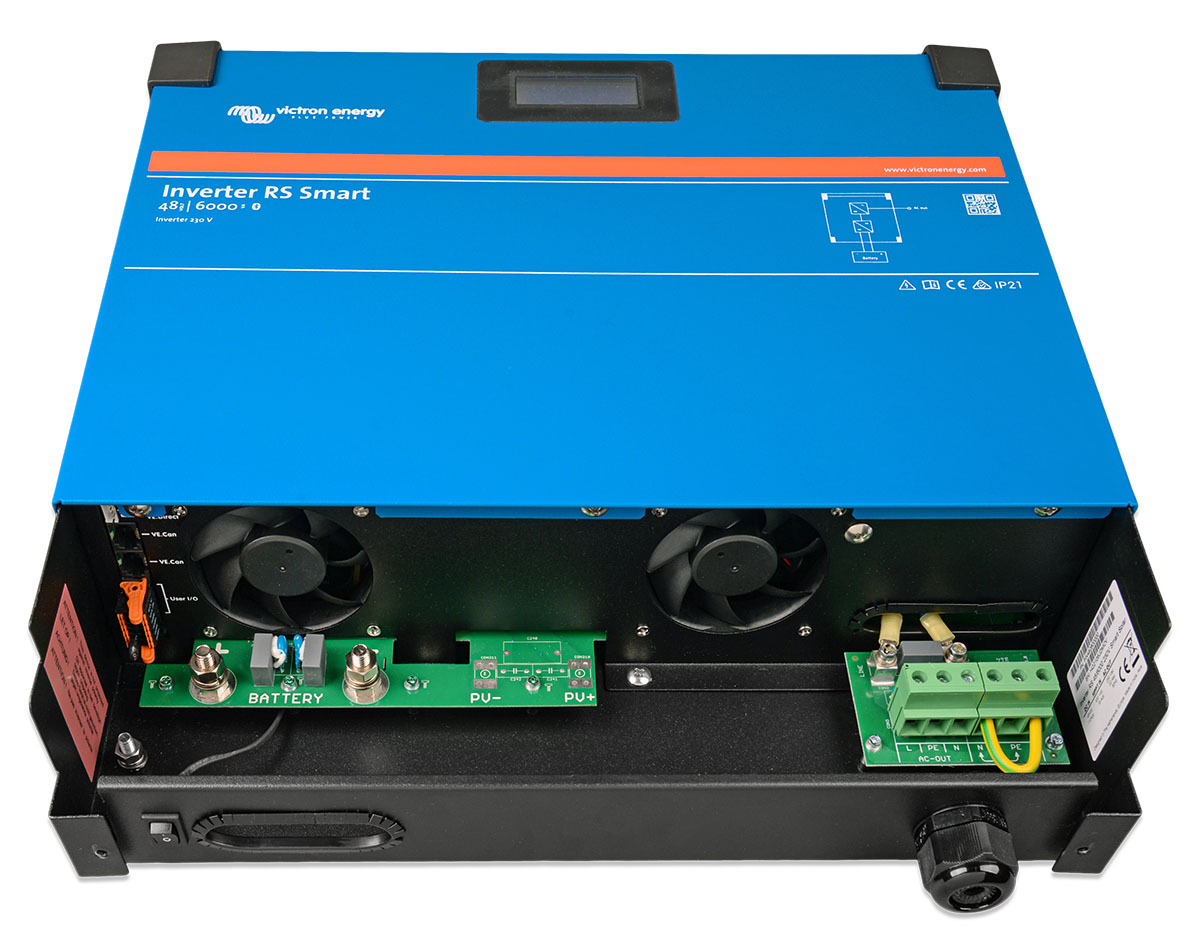

I/O Connections

Programmable Relay, temperature sensor and voltage sensor connections. The remote input can also be configured to accept the Victron smallBMS.

This item must be installed by a licensed Electrician



Inverter RS Smart 48/6000
INVERTER
DC Input voltage range 38 – 64 V (4)
Output Output voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0.1% (1)
Continuous output power at 25°C Increases linearly from 4800 W at 46 VDC
to 5300 W at 52 VDC
Continuous output power at 40°C 4500W
Continuous output power at 65°C 3000W
Peak power 9 kW for 3 seconds
Short-circuit output current 50A
Maximum efficiency 96.5% at 1 kW load
94% at 5 kW load
Zero load power 20W
GENERAL
Parallel and 3-phase operation No
Programmable relay (3) Yes
Protection (2) a - f
Data Communications Ports VE.Direct port and VE.Can port
General purpose analogue/digital in port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
ENCLOSURE
Material & Colour steel, blue RAL 5012
Protection category IP21
Battery-connection M8 bolts
230 V AC-connection Screw terminals 13 mm² (6 AWG)
Weight 11 kg
Dimensions (hxwxd) 425 x 440 x 125 mm
STANDARDS
Safety EN-IEC 60335-1, EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
1) Can be adjusted to 60 Hz 3) Programmable relay which can be set for general
2) Protection key: alarm, DC under voltage or genset start/stop
a) output short circuit function. DC rating: 4A up to 35VDC and 1A up to
b) overload 70VDC
c) battery voltage too high 4) Minimum start-up voltage is 41V. Inverter
d) battery voltage too low shutdown can be set as low as 32V DC, but may shut
e) temperature too high down on low AC output voltage (due to load). Over-
f) 230 VAC on inverter output voltage disconnect is 65.5V.
SKU VIC.PIN482600000
Model # PIN482600000
UPC/EAN 8719076046059
Brand Victron Energy
Shipping Weight 14.0000kg
Shipping Width 0.230m
Shipping Height 0.490m
Shipping Length 0.540m
Shipping Cubic 0.060858000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
