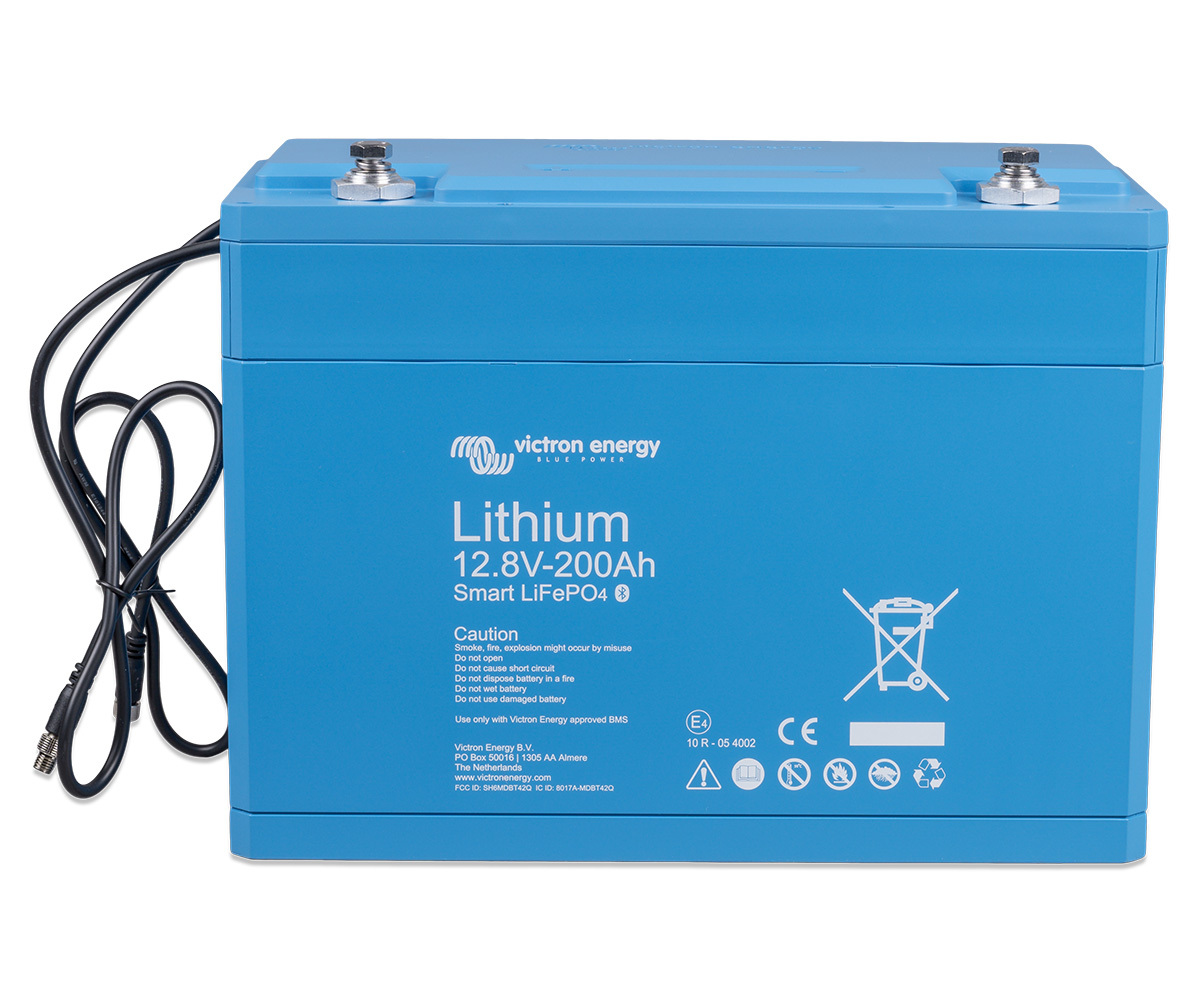

Victron Energy Lithium Battery Smart batteries are Lithium Iron Phosphate (LiFePO4) batteries have integrated cell balancing and cell monitoring. They can be connected in series, parallel and series/parallel combination so that a battery bank can be built for system voltages of 12V, 24V or 48V. The maximum number of batteries in one system is 20 allowing for large and flexible demanding power system configurations for your application.

Victron Energy LFP batteries have integrated cell balancing and cell monitoring. The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS).

Setup, monitoring and control via Bluetooth and the VictronConnect App. Battery setup, configuration and monitoring is done entirely via Bluetooth and the VictronConnect app. View battery parameters such as cell status, voltages and temperature in real-time, configure the battery limits or update the battery firmware.

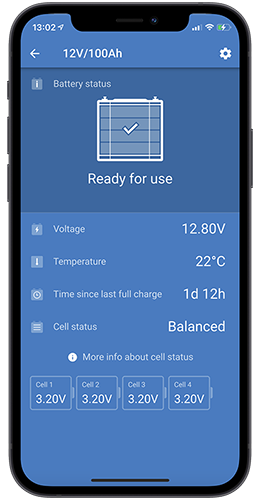

Victron Connect App showing Lithium Battery StatusFeatures:

  • With integrated cell balancing
  • Can be parallel and series connected
  • Bluetooth app available to monitor cell voltage and temperature
  • High round-trip efficiency
  • High energy density - More capacity with less weight and volume
  • High charge and discharge currents, enabling fast charging and discharging



Victron Smart Lithium Battery range requires one of these BMS-es:

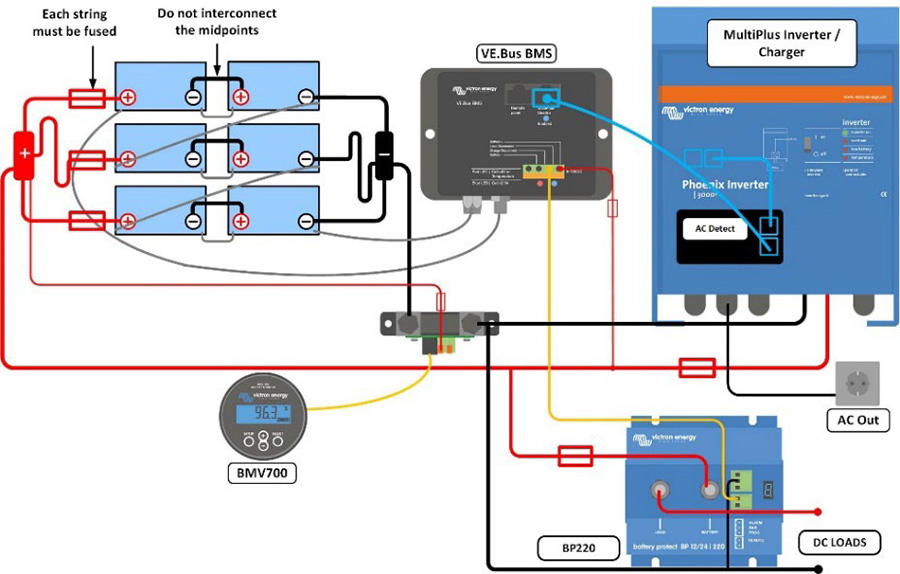

Example Setup of Victron Smart Lithium Batteries

Victron Smart Lithium Battery Specifications

VOLTAGE AND CAPACITY

LFP-
Smart 12,8/50

LFP-
Smart 12,8/100

LFP-
Smart 12,8/180

LFP-
Smart 12,8/200

LFP- Smart 12,8/330

LFP- Smart 25,6/100

LFP-
Smart 25,6/200-a
Nominal voltage 12,8 V 12,8 V 12,8 V 12,8 V 12,8 V 25,6 V 25,6 V
Nominal capacity @ 25°C* 50 Ah 100 Ah 180 Ah 200 Ah 330 Ah 100 Ah 200 Ah
Nominal capacity @ 0°C* 40 Ah 80 Ah 150 Ah 160 Ah 260 Ah 80 Ah 160 Ah
Nominal capacity @ -20°C* 25 Ah 50 Ah 90 Ah 100 Ah 160 Ah 50 Ah 100 Ah
Nominal energy @ 25°C* 640 Wh 1280 Wh 2304 Wh 2560 Wh 4220 Wh 2560 Wh 5120 Wh
*Discharge current ≤1C

CYCLE LIFE (capacity ≥ 80 % of nominal)
80 % DoD 2500 cycles
70 % DoD 3000 cycles
50 % DoD 5000 cycles

DISCHARGE
Maximum continuous
discharge current		 100 A 200 A 360 A 400 A 400 A 200 A 400 A
Recommended continuous
discharge current		 ≤50 A ≤100 A ≤180 A ≤200 A ≤300 A ≤100 A ≤200 A
End of discharge voltage 11,2 V 11,2 V 11,2 V 11,2 V 11,2 V 22,4 V 22,4 V
Internal resistance 2mΩ 0,8mΩ 0,9mΩ 0,8mΩ 0,8mΩ 1,6mΩ 1,5mΩ

OPERATING CONDITIONS
Operating temperature Discharge: -20°C to +50°C Charge: +5°C to +50°C
Storage temperature -45°C to +70°C
Humidity (non-condensing) Max. 95 %
Protection class IP 22

CHARGE
Charge voltage Between 14 V/28 V and 14,4 V/28,8 V (14,2 V/28,4 V recommended)
Float voltage 13,5 V/27 V
Maximum charge current 100 A 200 A 360 A 400 A 400 A 200 A 400 A
Recommended charge
current		 ≤30 A ≤50 A ≤90 A ≤100 A ≤150 A ≤50 A ≤100 A

OTHER
Max storage time @ 25°C* 1 year
BMS connection Male + female cable with M8 circular connector, length 50cm
Power connection
(threaded inserts)		 M8 M8 M8 M8 M10 M8 M8
Dimensions (hxwxd) mm 199 x 188 x 147 197 x 321 x 152 237 x 321 x 152 237 x 321 x 152 265 x 359 x 206 197 x 650 x 163 237 x 650 x 163
Weight 7 kg 14 kg 18 kg 20 kg 29 kg 28 kg 39 kg
* When fully charged
SKU VIC.BAT512120610
Model # BAT512120610
UPC/EAN 8719076045526
Brand Victron Energy
Shipping Weight 21.3000kg
Shipping Width 0.310m
Shipping Height 0.430m
Shipping Length 0.200m
Shipping Cubic 0.026660000m3
Unit Of Measure ea
Assembled Width 0.560m
