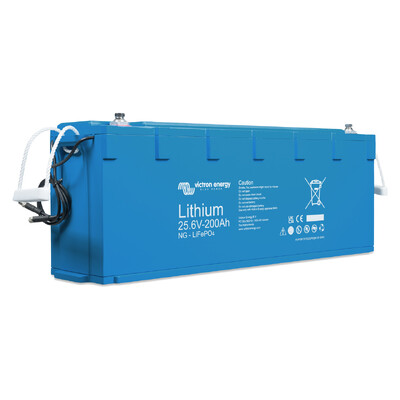

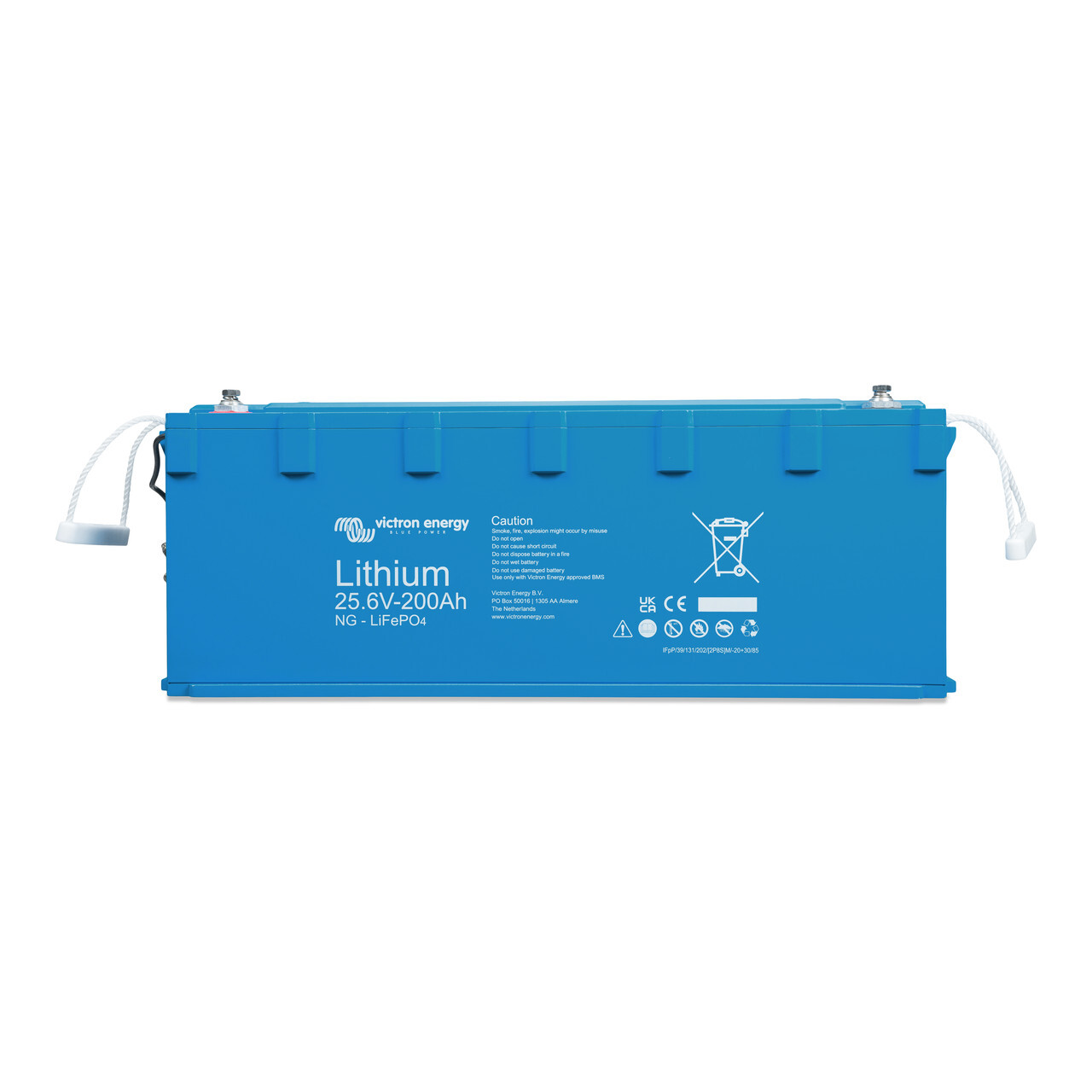

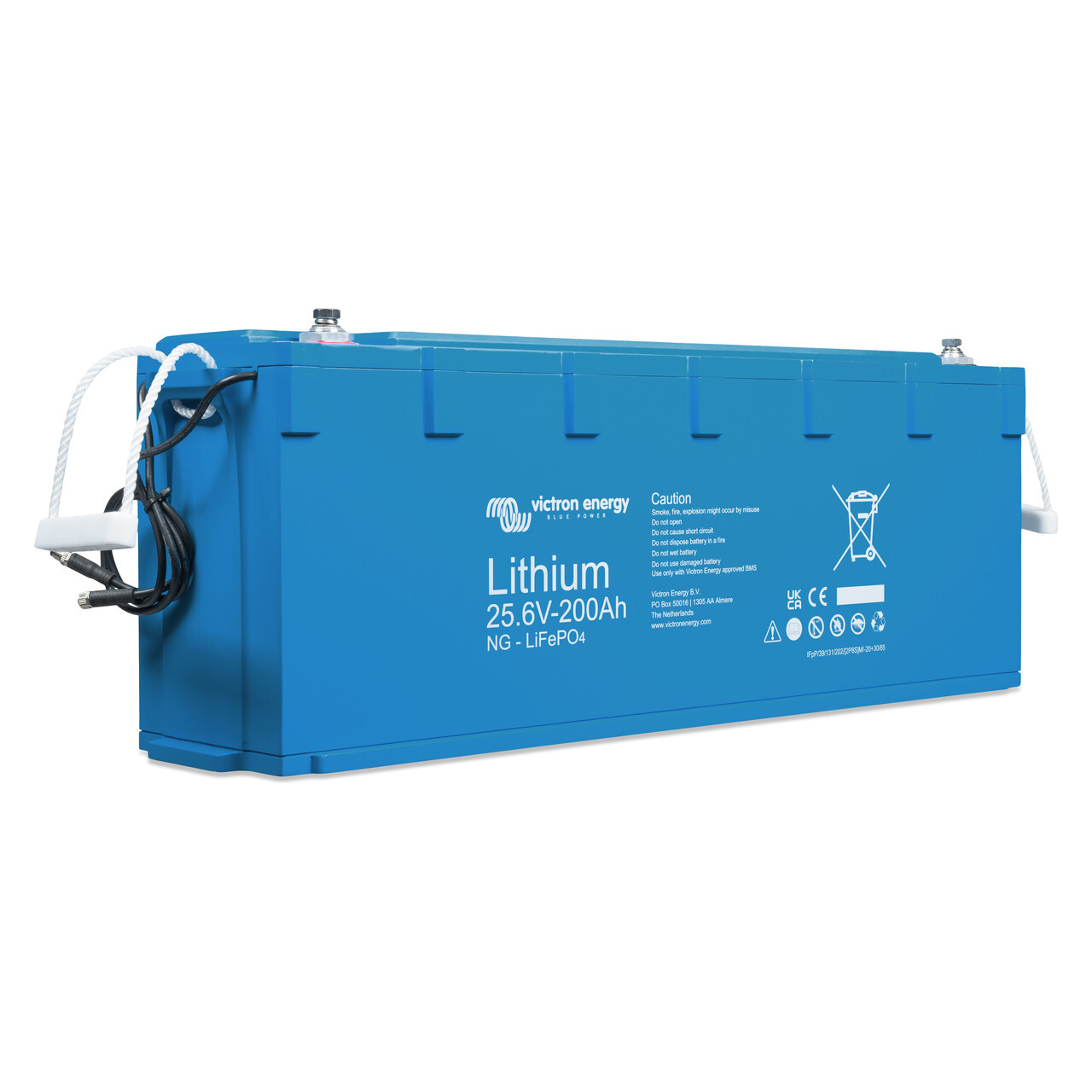

Victron Energy Lithium NG batteries are Lithium Iron Phosphate (LiFePO4 or LFP) batteries. They can be connected in series, parallel and series/parallel. The maximum number of batteries in one system is 50, which results in a maximum energy storage of up to 384kWh in a 24V system.

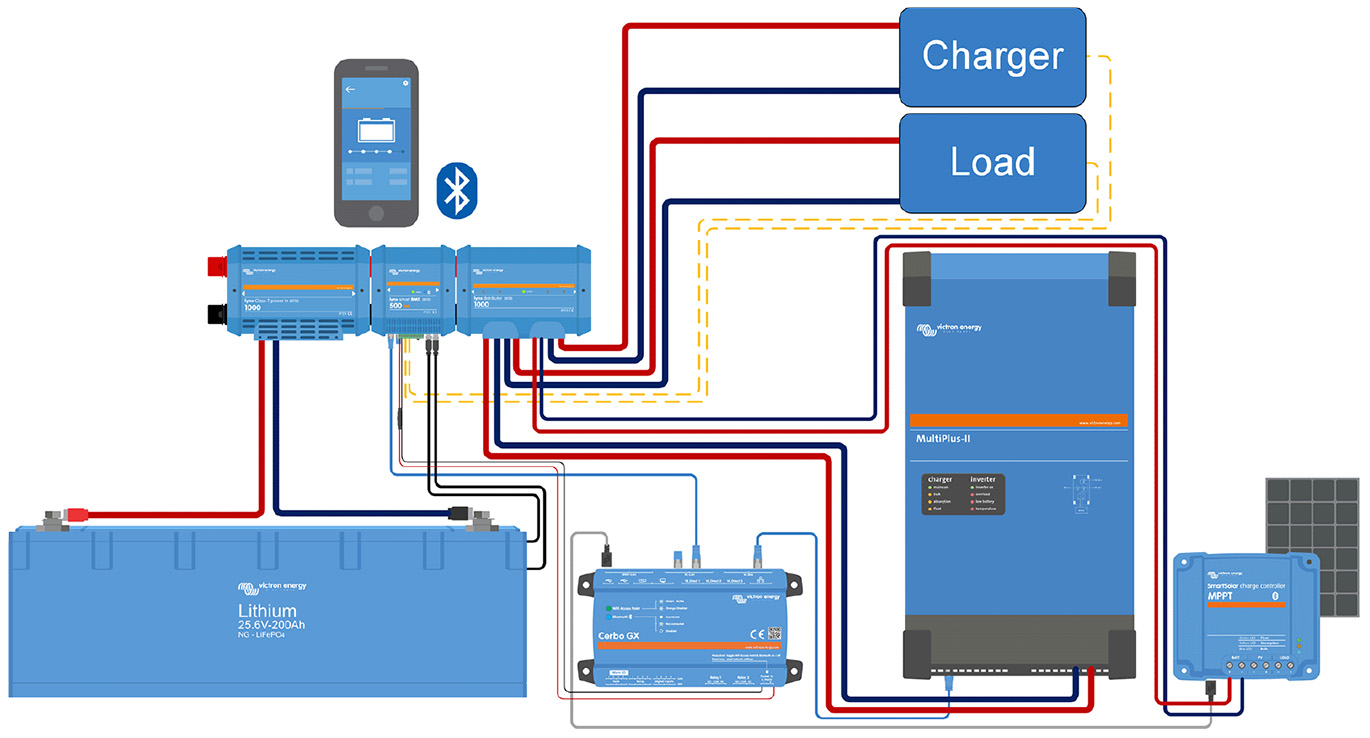

The battery data (battery voltage, current and temperature) are transmitted to the BMS and evaluated there, i.e. to calculate the state of charge, which can then be read out via VictronConnect or a GX communication centre, or to create and issue specific warnings and alarms.
All battery parameters are managed by the BMS automatically. The BMS automatically detects the system voltage and the number of batteries in parallel, series and series/parallel connection. The BMS (from now on Lynx Smart BMS NG 500 A/1000 A, further models to follow) is mandatory and must be purchased separately.
Monitoring and control take place via VictronConnect (every BMS model has Bluetooth), a GX communication centre or the VRM Portal. You can view battery parameters such as cell status, cell voltages, battery current and temperatures in real-time. The battery firmware is automatically updated by the BMS.

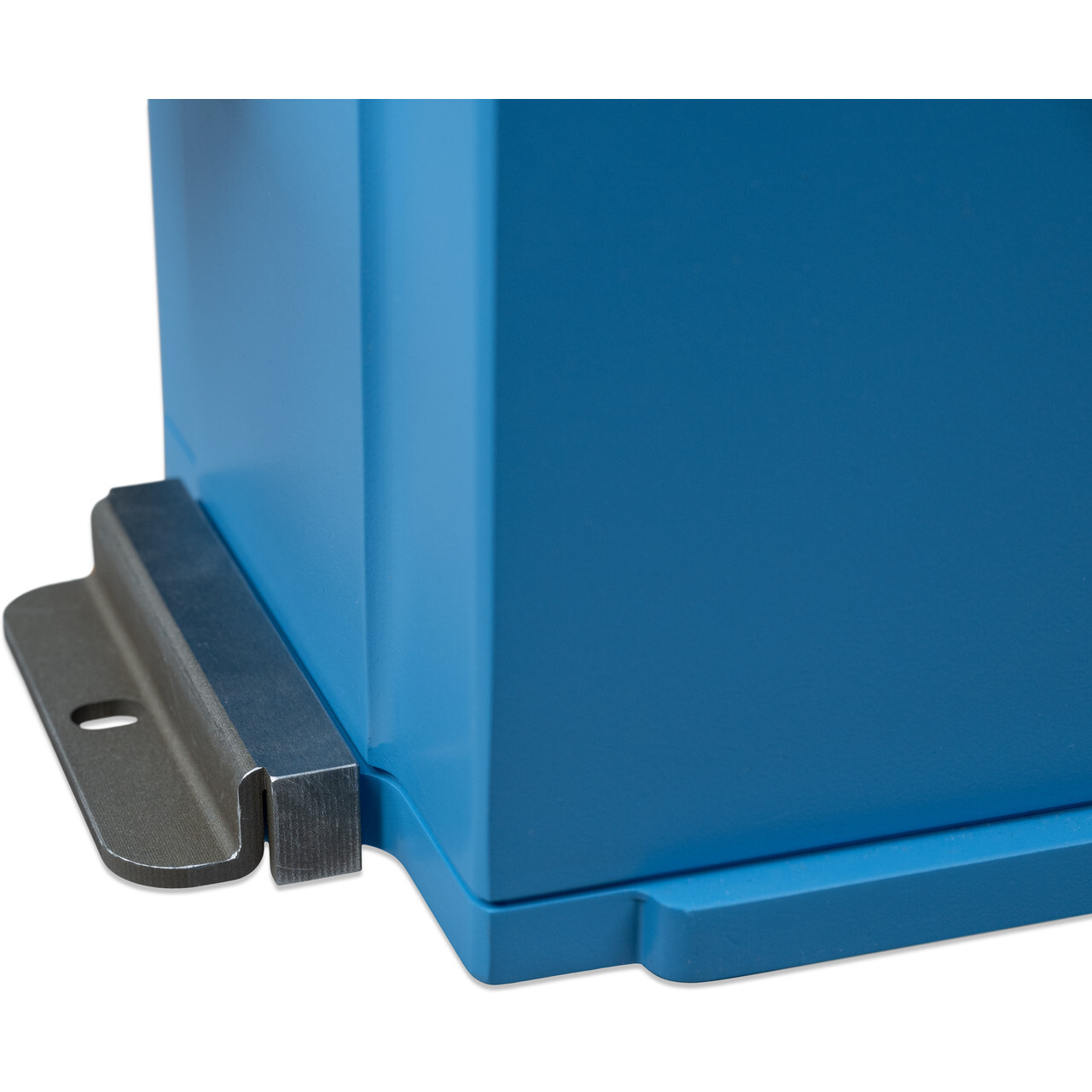

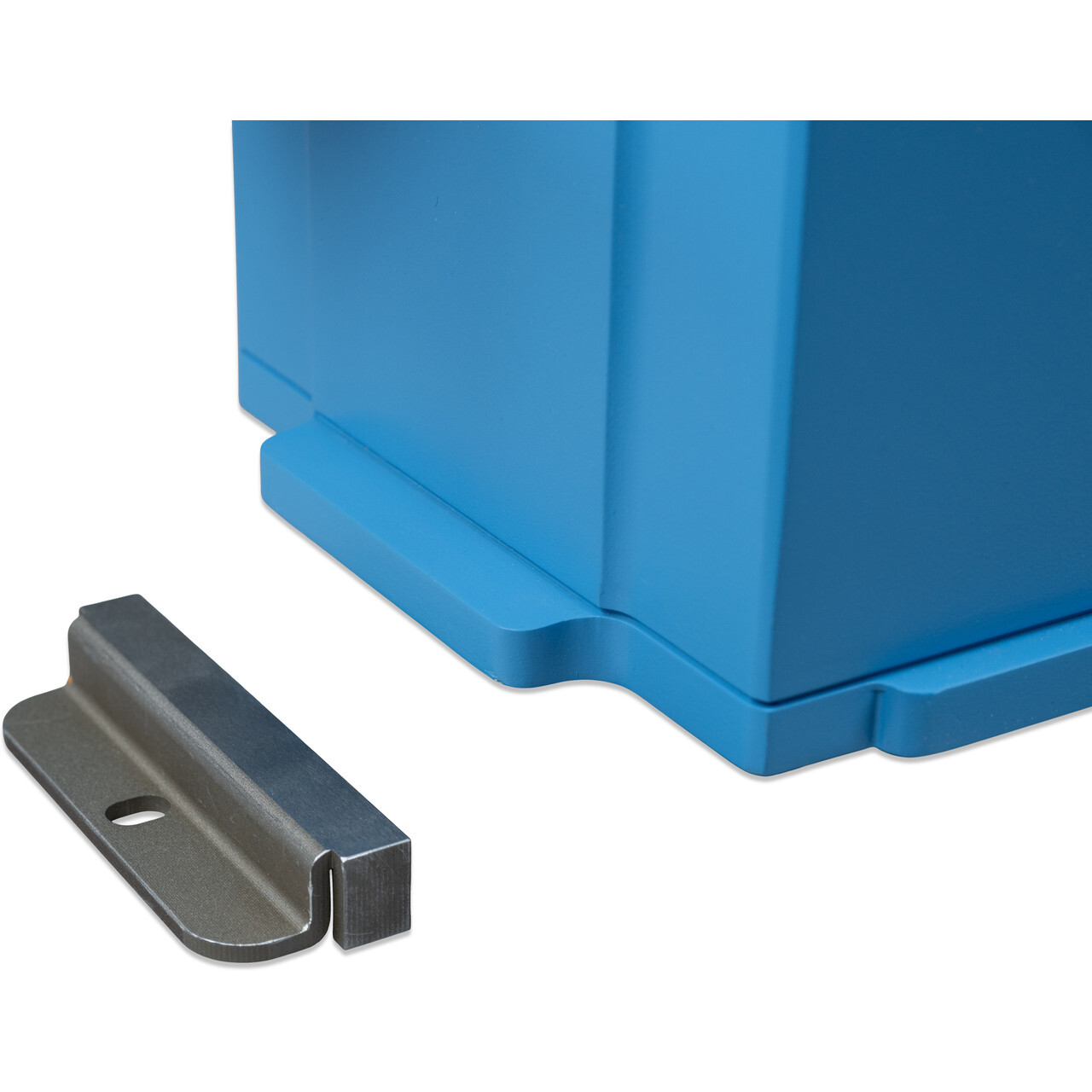

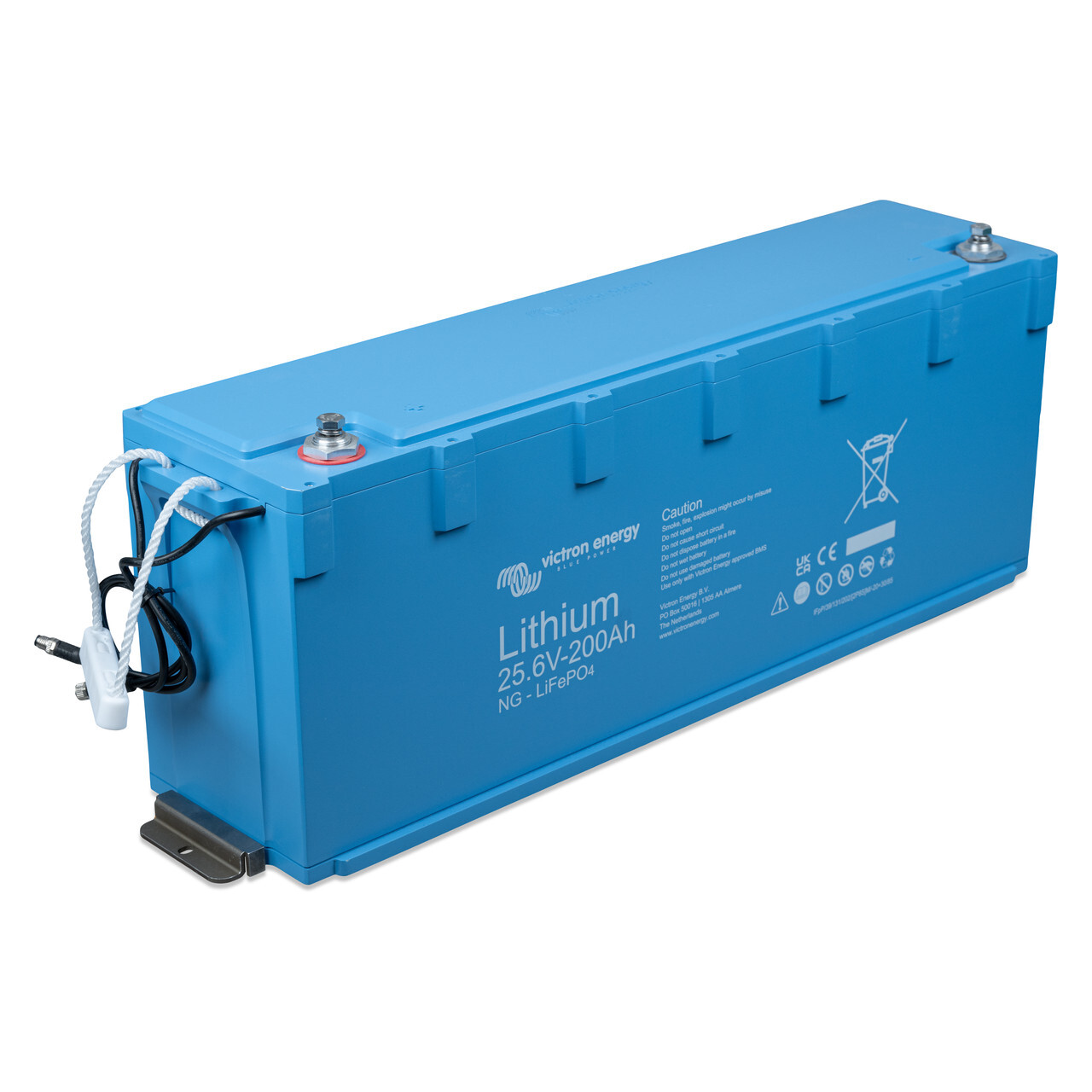

Mounting brackets make the installation easier and ensure that the battery is optimally secured against slipping and tipping over.
The Lithium NG batteries are effectively sealed against dust and can withstand low-pressure water jets, making them suitable for environments where exposure to dust and water is a concern.
The self-discharge rate has been significantly improved and is now a maximum of 2 % of the battery capacity per month. A low self-discharge rate contributes to the overall performance, longevity, and reliability of the NG batteries.
Category | Specification | Details |
---|---|---|
Nominal Voltage | Value | 25.6 V |
Nominal Capacity @ 25°C | Value | 200 Ah |
Nominal Energy @ 25°C | Value | 5120 Wh |
Cycle Life (capacity ≥ 80% of nominal) | 80% DoD | 2500 cycles |
70% DoD | 3000 cycles | |
50% DoD | 5000 cycles | |
Max Continuous Discharge Current | Value | 200 A |
Max Pulse Discharge Current (10s) | Value | 400 A |
End of Discharge Voltage | Value | 22.4 V |
Internal Resistance | Value | 4 mΩ |
Charge Voltage | Range | Between 28 V and 28.8 V |
Float Voltage | Value | 27 V |
Max Continuous Charge Current | Value | 100 A |
Max Pulse Charge Current (10s) | Value | 200 A |
Operating Temperature | Discharge | -20 °C to +50 °C |
Charge | +5 °C to +50 °C | |
Storage Temperature | Range | -45 °C to +70 °C |
Humidity (non-condensing) | Value | Max. 95% |
Protection Class | Rating | IP65 |
Mounting Options | Details | Strap or mounting brackets, can be placed on their sides |
Self-discharge Rate | Value | ≤ 3% per month @ 25 °C |
Power Connection | Type | M8 (threaded inserts and bolts) |
Dimensions (h x w x d) | Size | 235 x 648 x 162 mm |
Weight (est.) | Value | 37 kg |
Standards | Safety | Cells: UL1973, UL9540A, IEC62619 (all pending) |
EMC | EN 61000-6-3, EN 61000-6-2 | |
Automotive | ECE R10-6 (pending) | |
Performance | IEC 62620 (pending) |
SKU | VIC.BAT524120620 |
Model # | BAT524120620 |
Brand | Victron Energy |
Shipping Weight | 44.0000kg |
Shipping Width | 0.390m |
Shipping Height | 0.220m |
Shipping Length | 0.710m |
Shipping Cubic | 0.060918000m3 |
