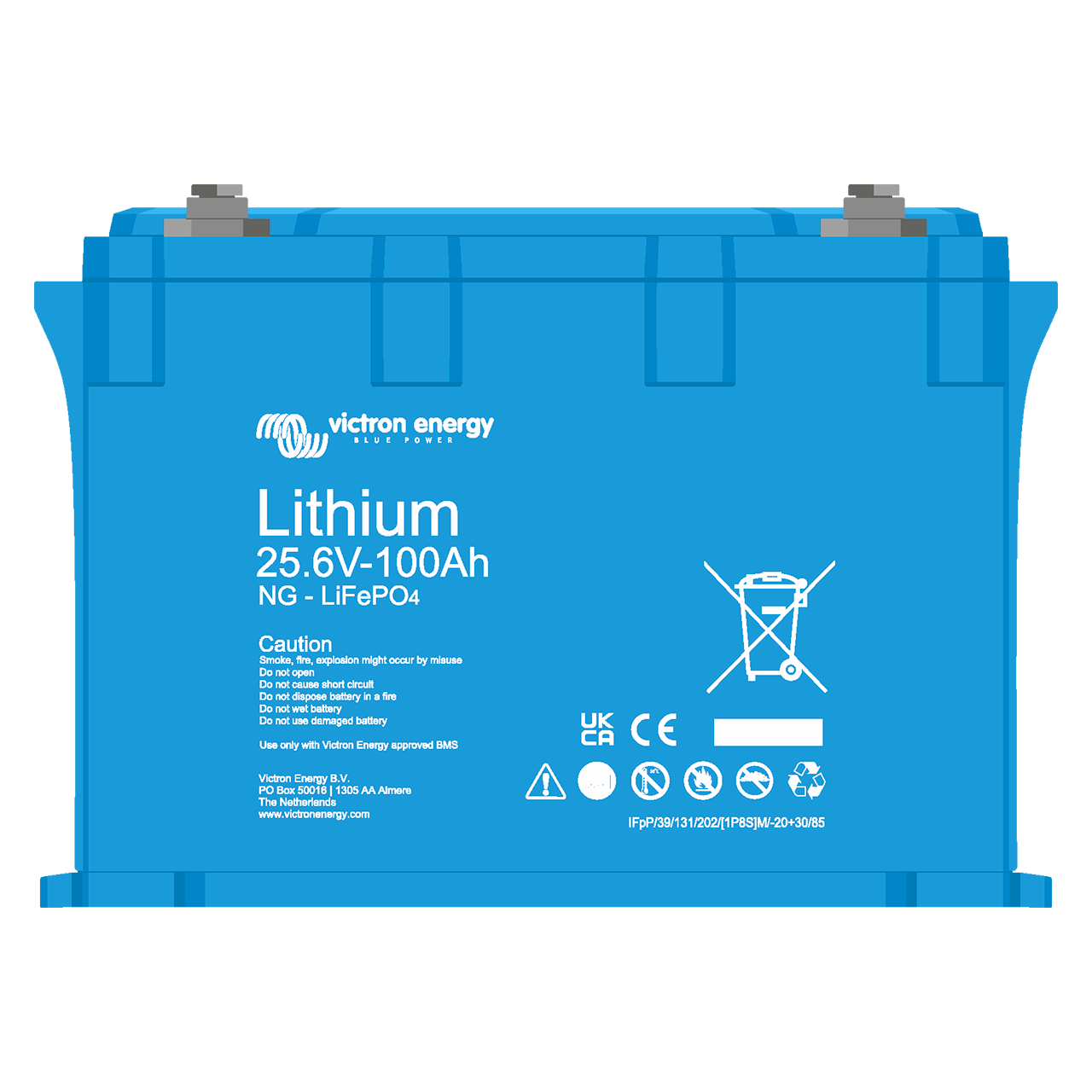

The Victron Lithium LiFePO4 Battery 25,6V/100Ah NG Series (BAT524110620) harnesses advanced Lithium Iron Phosphate (LiFePO4) technology for long-lasting, safe, and reliable energy storage. With a nominal voltage of 25.6V and a capacity of 100Ah, this battery delivers up to 2.56 kWh of energy, perfect for high-demand systems. It boasts an impressive cycle life of up to 5,000 cycles at 50% depth of discharge (DoD), ensuring extended use in a variety of applications.

Key Features:

• Integrated shunt for real-time battery data transmission
• Automatic setup and control via VictronConnect or GX device
• Easy monitoring of battery parameters through the VictronConnect app or VRM portal
• Secure installation with provided mounting brackets
• IP65-rated f
• Low self-discharge rate of 2% per month
• High cycle life with 2500 cycles at 80% DoD
• Repairable design with removable cover.
• Can be mounted upright or on its side (not with terminals facing down)

Integrated Battery Management System (BMS) for Seamless Monitoring

Equipped with a built-in Battery Management System (BMS), the Victron Lithium LiFePO4 Battery ensures optimal operation and protection. The BMS continuously monitors critical parameters, including battery voltage, temperature, and current, and provides real-time data through VictronConnect or a GX device. The BMS also enables automatic setup and adjustments based on system requirements, ensuring efficiency and safety throughout the battery's life.

Easy Installation and Durability

Designed for versatility, the Victron Lithium LiFePO4 Battery features an easy bracket mounting system, ensuring quick and secure installation. With an ingress protection rating of IP65, the battery is highly resistant to dust and low-pressure water jets, making it suitable for both indoor and outdoor use. This durability, combined with a low self-discharge rate of less than 3% per month, guarantees long-term reliability and performance in challenging environments.

Enhanced Flexibility and Scalability

The Victron Lithium LiFePO4 Battery is scalable, allowing multiple units to be connected in series, parallel, or a combination of both to build a battery bank tailored to system voltage needs of 12V, 24V, or 48V. With up to 50 batteries capable of being connected to a single system, it supports a maximum energy storage of 384 kWh. This flexibility makes it an ideal choice for a wide range of applications, from residential setups to larger commercial systems.

How does the new Victron Energy Lithium NG Battery & BMS NG work?
