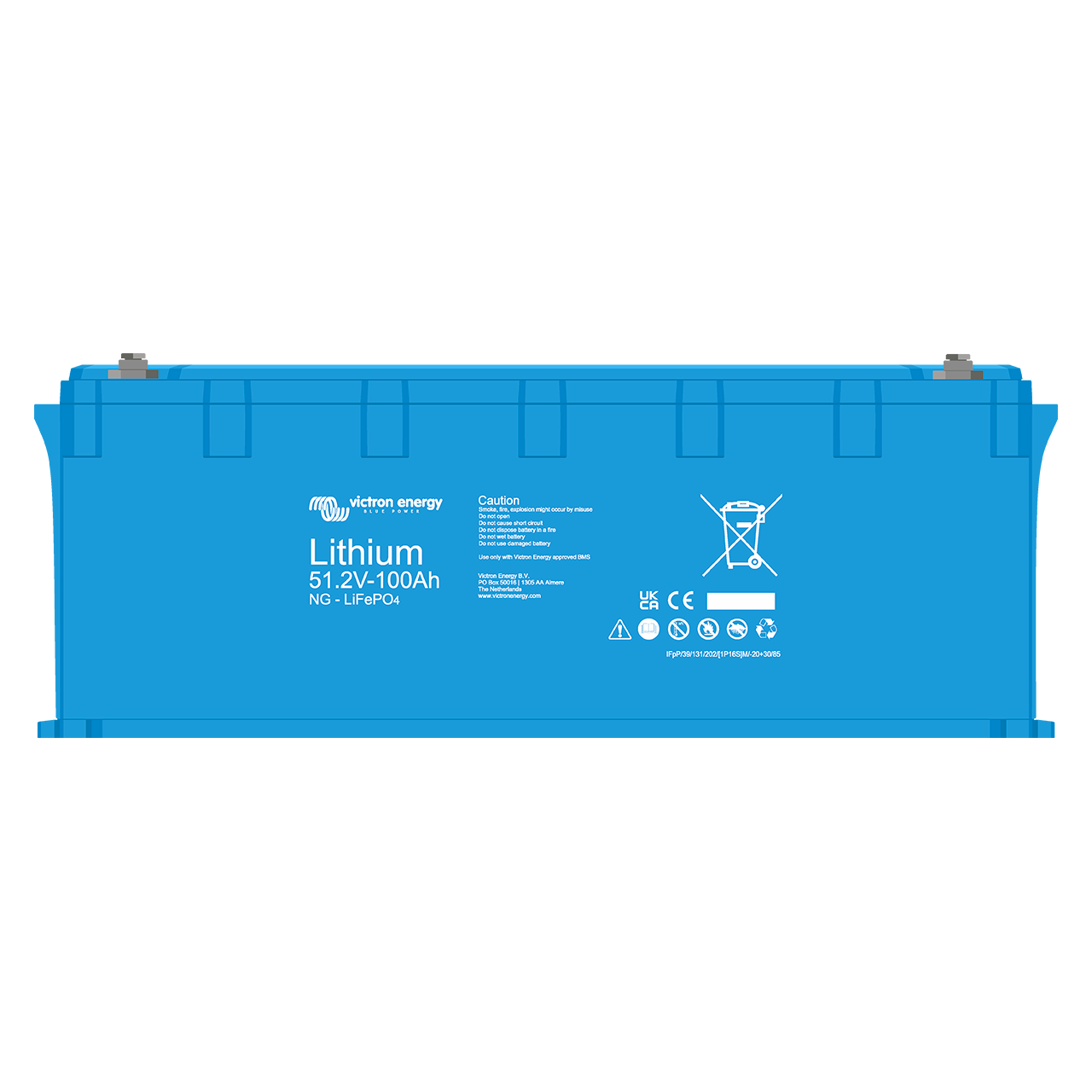

The Victron Energy Lithium LiFePO4 Battery 51.2V/100Ah NG Series (BAT548110620) offers a powerful solution for demanding applications. Designed with advanced Lithium Iron Phosphate (LiFePO4) technology, this battery delivers exceptional capacity and cycle life, ensuring reliable power storage with up to 5000 cycles at 50% DoD. With a nominal energy of 5120 Wh, it provides a robust power reserve for off-grid systems, renewable energy setups, and mobile applications.

Key Features:

• Integrated shunt for real-time battery data transmission
• Automatic setup and management via VictronConnect, GX device, or VRM portal
• BMS ensures automatic detection of system voltage and battery configuration
• Easy installation with mounting brackets
• IP65 rating
• Low self-discharge rate of 2% per month
• High cycle life: 2500 cycles at 80% DoD, 3000 cycles at 70% DoD, and 5000 cycles at 50% DoD
• Integrated cell balancing and monitoring
• Battery Management System (BMS) with alarms for under-voltage, over-voltage, and temperature protection

Integrated Battery Management System (BMS)

The battery integrates an advanced Battery Management System (BMS), which ensures optimal performance and protection. The BMS automatically adjusts settings such as voltage and current, continuously monitoring the battery’s health and status. Users can access real-time data, including cell voltages, temperatures, and overall battery performance, via the VictronConnect app, GX communication centre, or VRM portal. Additionally, the BMS prevents overcharging and over-discharging to maintain safety and longevity.

Superior Durability and Environmental Protection

With an IP65 rating, the Victron LiFePO4 battery is built to withstand harsh environments. It is sealed against dust and resistant to low-pressure water jets, making it ideal for outdoor and industrial use. Furthermore, the battery is designed to operate in a wide temperature range, from -20°C to +50°C for discharge and +5°C to +50°C for charging, ensuring reliability even in extreme conditions.

Efficient and Easy Installation

The battery comes equipped with mounting brackets that simplify installation, keeping the battery securely in place. Its low self-discharge rate of up to 2% per month enhances its long-term reliability, while the system supports up to 50 batteries in series/parallel configurations. Whether in a 12V, 24V, or 48V system, it offers a scalable energy solution, with a maximum energy storage capacity of up to 384 kWh in larger systems.
