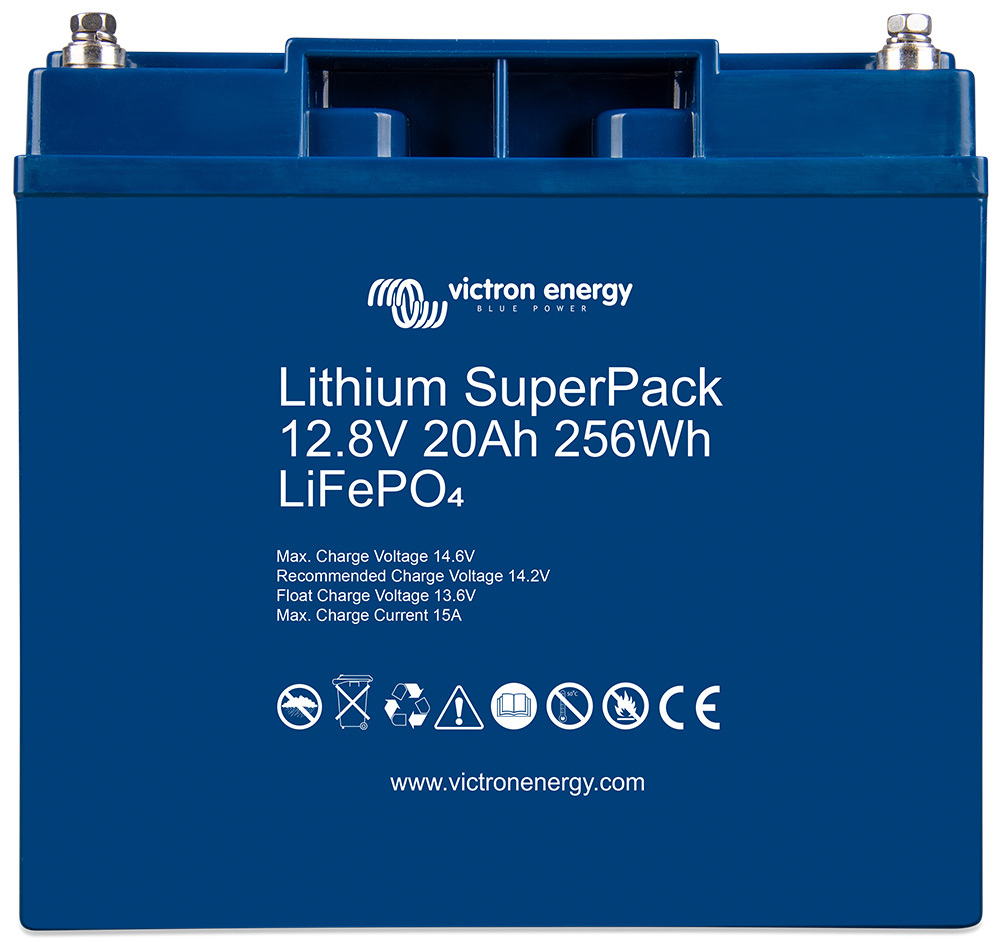

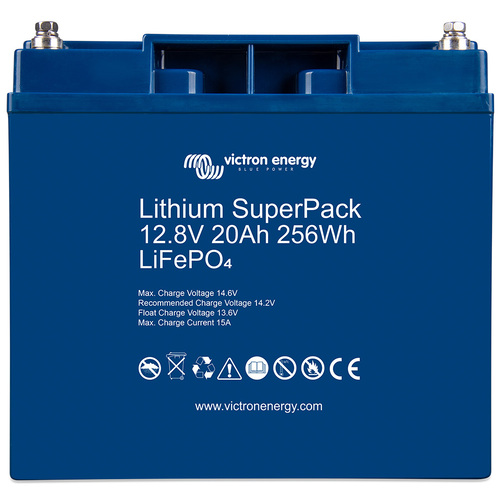

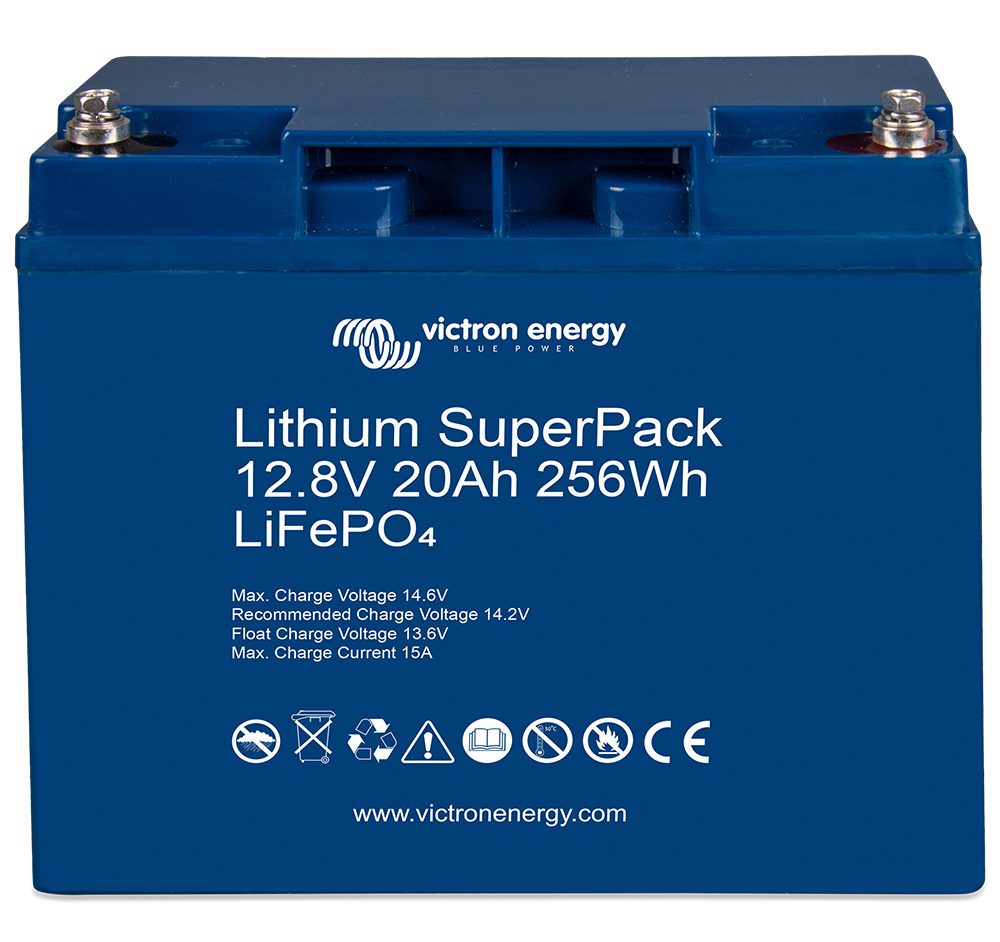

Victron Lithium SuperPack Battery 12,8V/20Ah 256Wh LiFePO4 (M5)
Victron Lithium SuperPack Battery 12,8V/20Ah 256Wh LiFePO4 (M5) with Integrated BMS and safety switch
SKU: VIC.BAT512020705 | MPN: BAT512020705
SAVE 33%!
Out of Stock at Vendor Warehouse. Contact Us for an update on when stock will be available.
Integrated BMS and safety switch
The SuperPack batteries are extremely easy to install, needing no additional components such as an external BMS. The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.
Abuse proof
A lead-acid battery will fail prematurely due to sulfation:
- If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
- If it is left partially charged or worse, fully discharged.
A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion xompared to lead-acid. The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are reached.
Efficient
In several applications (especially off-grid solar), energy efficiency can be of crucial importance. The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80% however the round-trip energy efficiency of a Li-ion battery is 92%.
The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state). In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.
Can be connected in Parallel
The SuperPack Litium batteries can be connected in parallel to increase capacity. Series connection however is not allowed and will result in damaged batteries if done so.
Use in an upright position only.
Lithium SuperPack | 12,8/20 | 12,8/60 | 12,8/100 | 12,8/200 | 25,6/50 | |
Chemistry | LiFePO4 | |||||
Nominal voltage | 12,8V | 25,6V | ||||
Nominal capacity @ 25°C | 20Ah | 60Ah | 100Ah | 200Ah | 50Ah | |
Nominal capacity @ 0°C | 16Ah | 48Ah | 80Ah | 160Ah | 40Ah | |
Nominal energy @ 25°C | 256Wh | 768Wh | 1280Wh | 2560Wh | 1280Wh | |
Cycle life @ 80% DoD and 25°C | 2500 cycles | |||||
CHARGE and DISCHARGE | ||||||
Max. cont. discharge current* | 30A | 30A | 50A | 70A | 50A | |
Peak discharge current (10 sec) | 80A | 80A | 100A | 100A | 100A | |
End of discharge voltage | 10V | 20V | ||||
Charge voltage, absorption** | 14,2V – 14,4V | 28,4V – 28,8V | ||||
Charge voltage, float | 13,5V | 27V | ||||
Max. cont. charge current | 15A | 30A | 50A | 70A | 50A | |
OPERATING CONDITIONS | ||||||
Parallel configuration | Yes, unlimited | |||||
Series configuration | No | |||||
Operating temperature | Discharge: -10°C to +50°C Charge: +5°C to +45°C | |||||
Storage temperature | -40°C to +65°C | |||||
Max. storage time when fully charged |
1 year ≤ 25°C | 3 months ≤ 40°C | ||||
Humidity (non-condensing) | Max. 95% | |||||
Protection class | IP 43 | |||||
OTHER | ||||||
Power connection (threaded inserts) |
M6 | M6 | M8 | M8 | M8 | |
Dimensions (LxWxH) mm |
181 x 77 x 167 |
229 x 138 x 213 |
330 x 171 x 220 |
520 x 269 x 208 |
330 x 171 x 220 | |
Weight | 3,5kg | 9,5kg | 14kg | 31kg | 14kg | |
* The battery may disconnect when a load with a high input capacitance is connected, such as an inverter. The battery will however retry and connect after approximately 10 seconds. **The absorption period should preferably not exceed 4 hrs. A longer absorption period may slightly reduce service life. |
