Integrated BMS and safety switch

The SuperPack batteries are extremely easy to install, needing no additional components such as an external BMS. The internal switch will disconnect the battery in case of over discharge, over charge or high temperature.


Abuse proof

A lead-acid battery will fail prematurely due to sulfation:

  • If it operates in deficit mode during long periods of time (i.e. if the battery is rarely, or never at all, fully charged).
  • If it is left partially charged or worse, fully discharged.

A Lithium-Ion battery does not need to be fully charged. Service life even slightly improves in case of partial charge instead of a full charge. This is a major advantage of Li-ion xompared to lead-acid. The SuperPack batteries will cut-off the charge or discharge current when the maximum ratings are reached.


Efficient

In several applications (especially off-grid solar), energy efficiency can be of crucial importance. The round-trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of the average lead-acid battery is 80% however the round-trip energy efficiency of a Li-ion battery is 92%.

The charge process of lead-acid batteries becomes particularly inefficient when the 80% state of charge has been reached, resulting in efficiencies of 50% or even less in solar systems where several days of reserve energy are required (battery operating in 70% to 100% charged state). In contrast, a Li-ion battery will still achieve 90% efficiency even under shallow discharge conditions.


Can be connected in Parallel

The SuperPack Litium batteries can be connected in parallel to increase capacity. Series connection however is not allowed and will result in damaged batteries if done so.
Use in an upright position only.

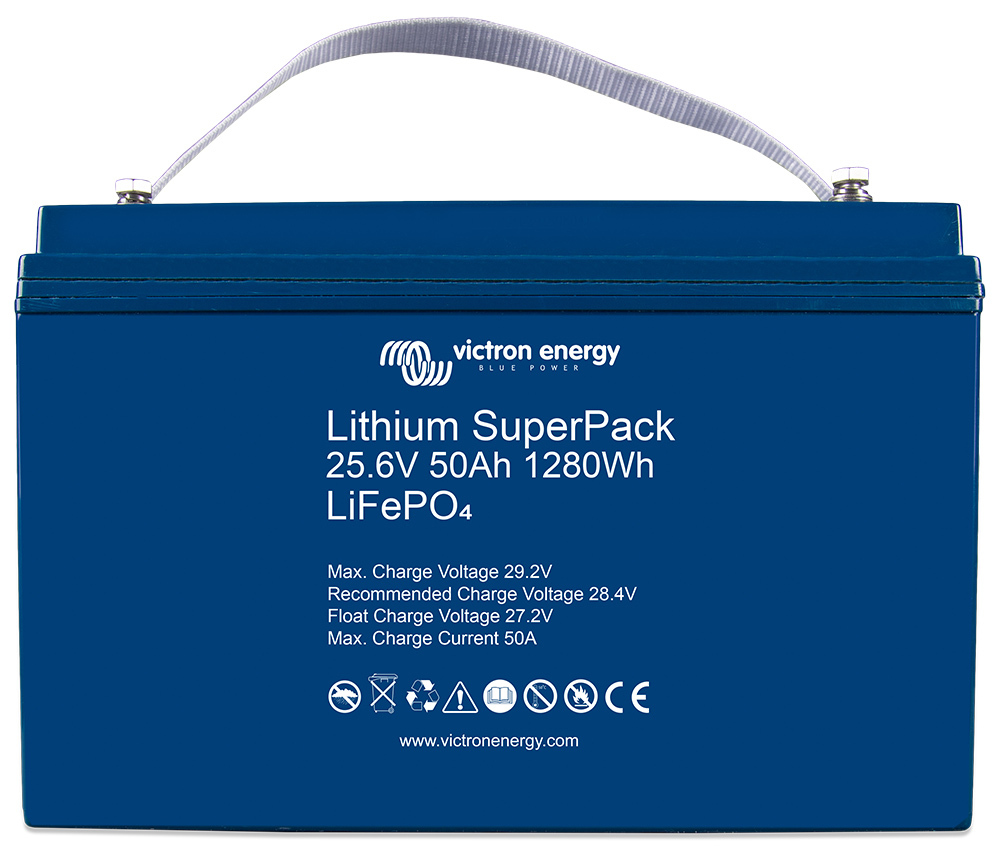

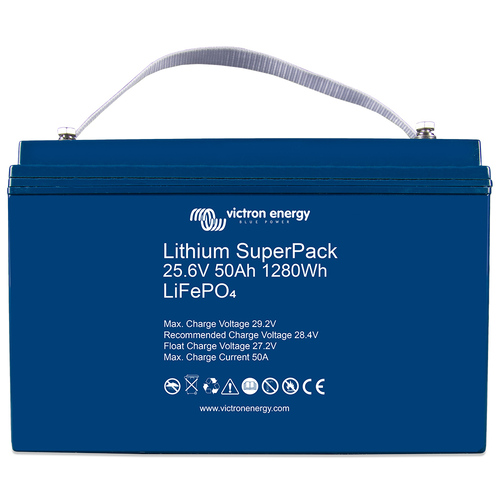

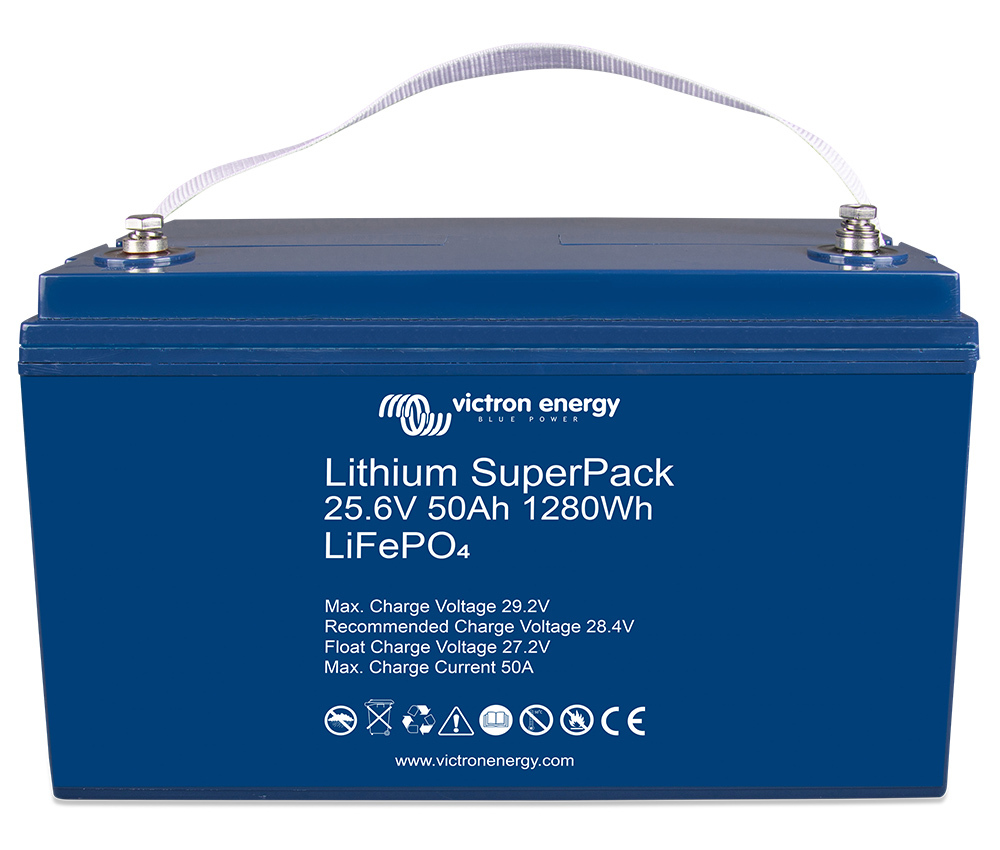

Lithium SuperPack 12,8/20 12,8/60 12,8/100 12,8/200 25,6/50
Chemistry LiFePO4
Nominal voltage 12,8V 25,6V
Nominal capacity @ 25°C 20Ah 60Ah 100Ah 200Ah 50Ah
Nominal capacity @ 0°C 16Ah 48Ah 80Ah 160Ah 40Ah
Nominal energy @ 25°C 256Wh 768Wh 1280Wh 2560Wh 1280Wh
Cycle life @ 80% DoD and 25°C 2500 cycles
CHARGE and DISCHARGE
Max. cont. discharge current* 30A 30A 50A 70A 50A
Peak discharge current (10 sec) 80A 80A 100A 100A 100A
End of discharge voltage 10V 20V
Charge voltage, absorption** 14,2V – 14,4V 28,4V – 28,8V
Charge voltage, float 13,5V 27V
Max. cont. charge current 15A 30A 50A 70A 50A
OPERATING CONDITIONS
Parallel configuration Yes, unlimited
Series configuration No
Operating temperature Discharge: -10°C to +50°C Charge: +5°C to +45°C
Storage temperature -40°C to +65°C
Max. storage time when fully
charged		 1 year ≤ 25°C 3 months ≤ 40°C
Humidity (non-condensing) Max. 95%
Protection class IP 43
OTHER
Power connection (threaded
inserts)		 M6 M6 M8 M8 M8
Dimensions
(LxWxH) mm		 181 x 77
x 167		 229 x 138
x 213		 330 x 171 x
220		 520 x 269
x 208		 330 x 171 x 220
Weight 3,5kg 9,5kg 14kg 31kg 14kg
* The battery may disconnect when a load with a high input capacitance is connected, such as an inverter. The battery will however retry and connect after approximately 10 seconds.
**The absorption period should preferably not exceed 4 hrs. A longer absorption period may slightly reduce service life.
SKU VIC.BAT524050705
Model # BAT524050705
UPC/EAN 8719076047575
Brand Victron Energy
Shipping Weight 14.0000kg
Shipping Width 0.370m
Shipping Height 0.270m
Shipping Length 0.215m
Shipping Cubic 0.021479000m3
Unit Of Measure ea
