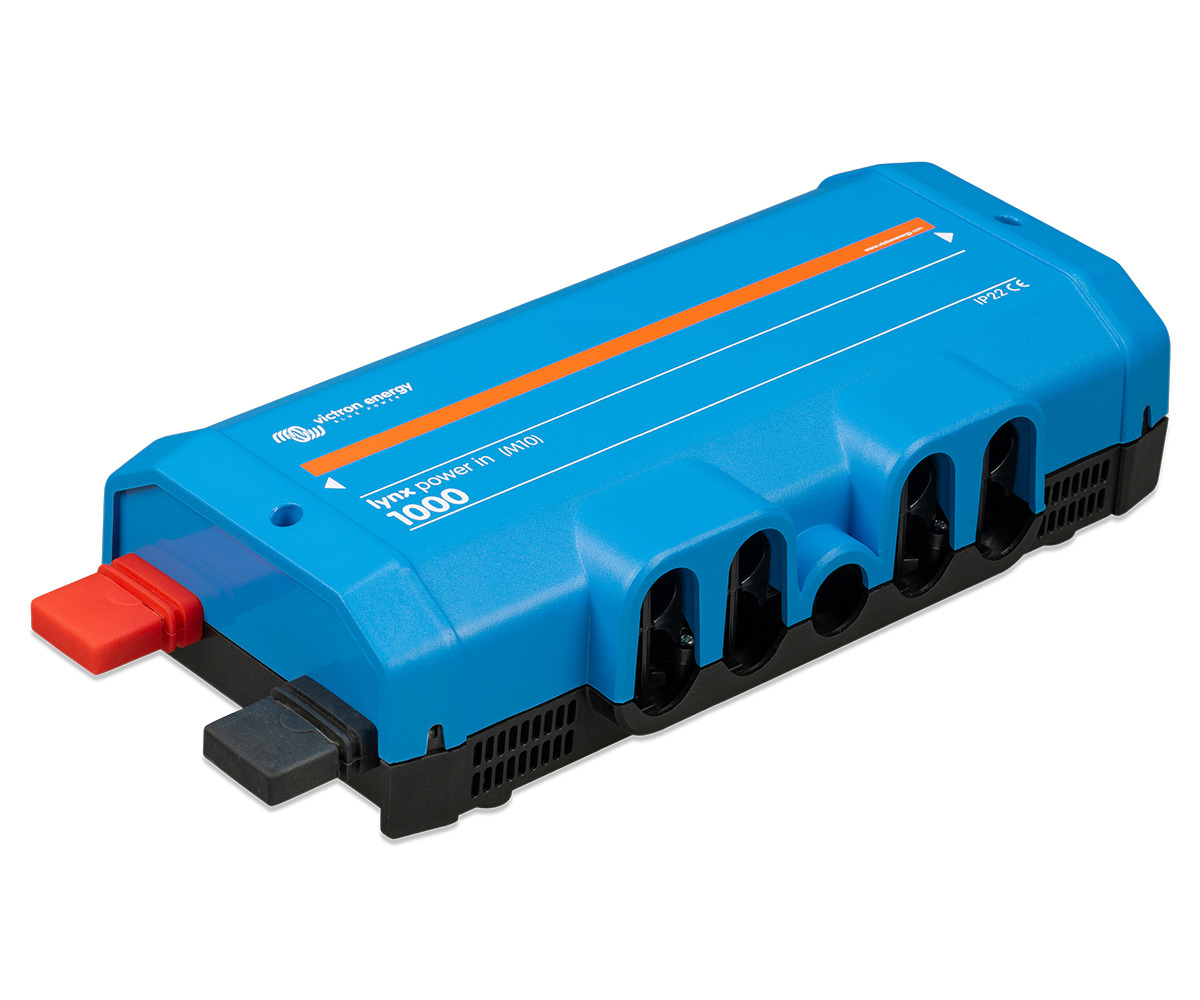

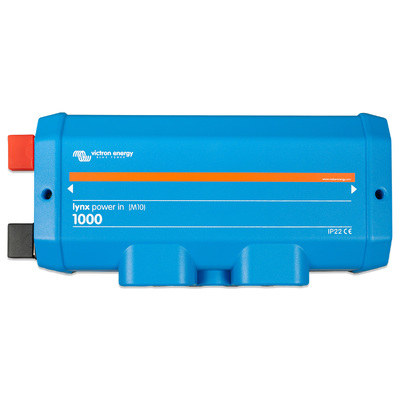

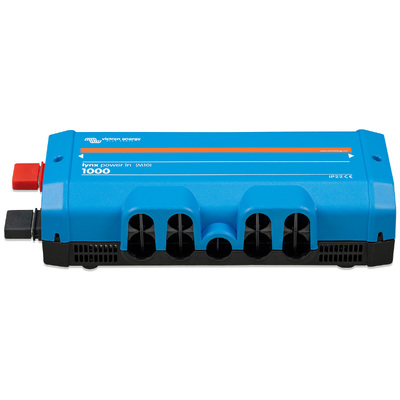

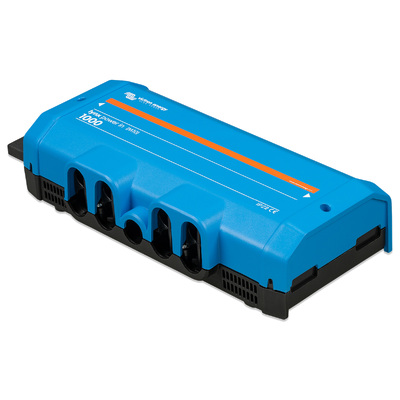

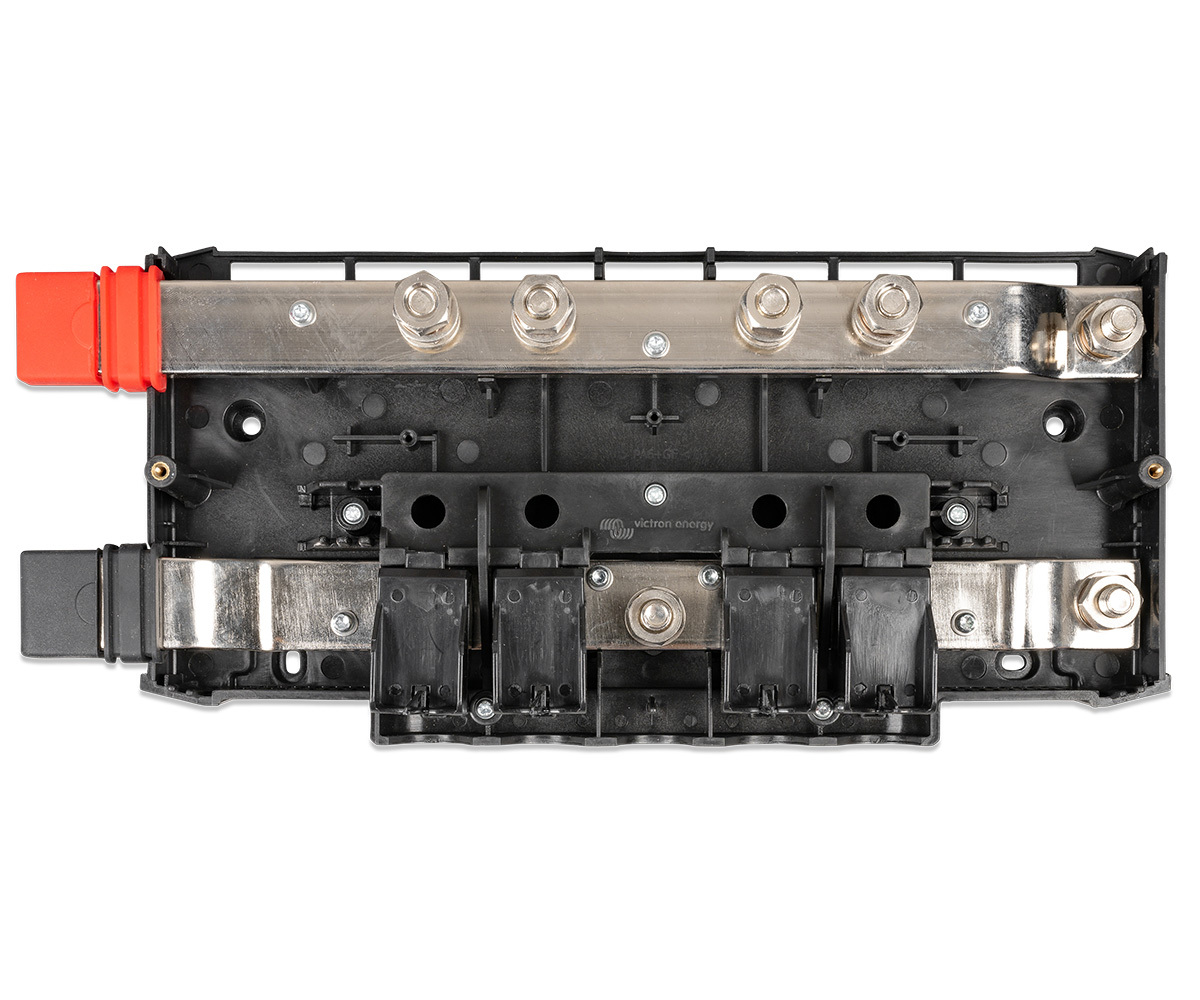

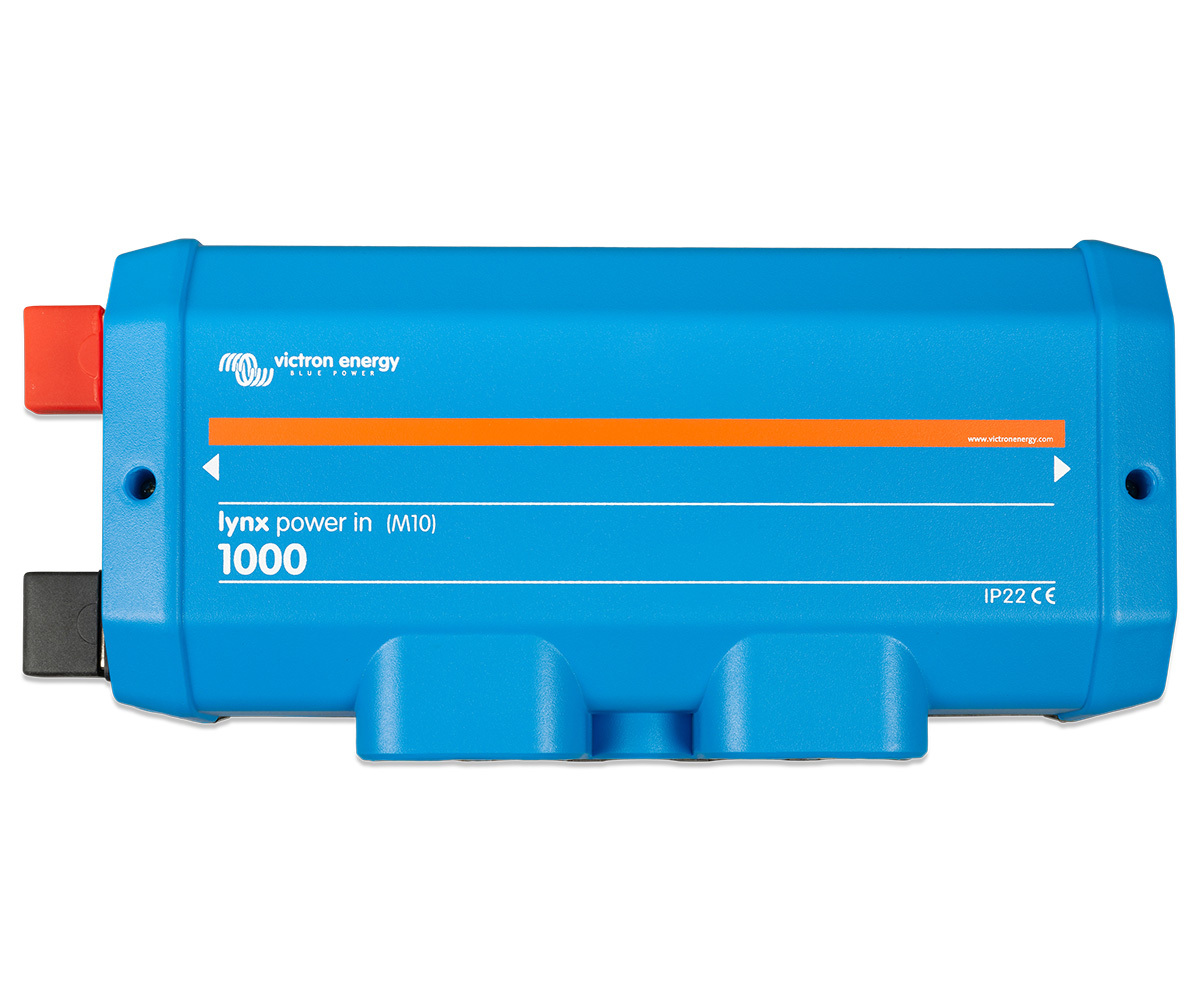

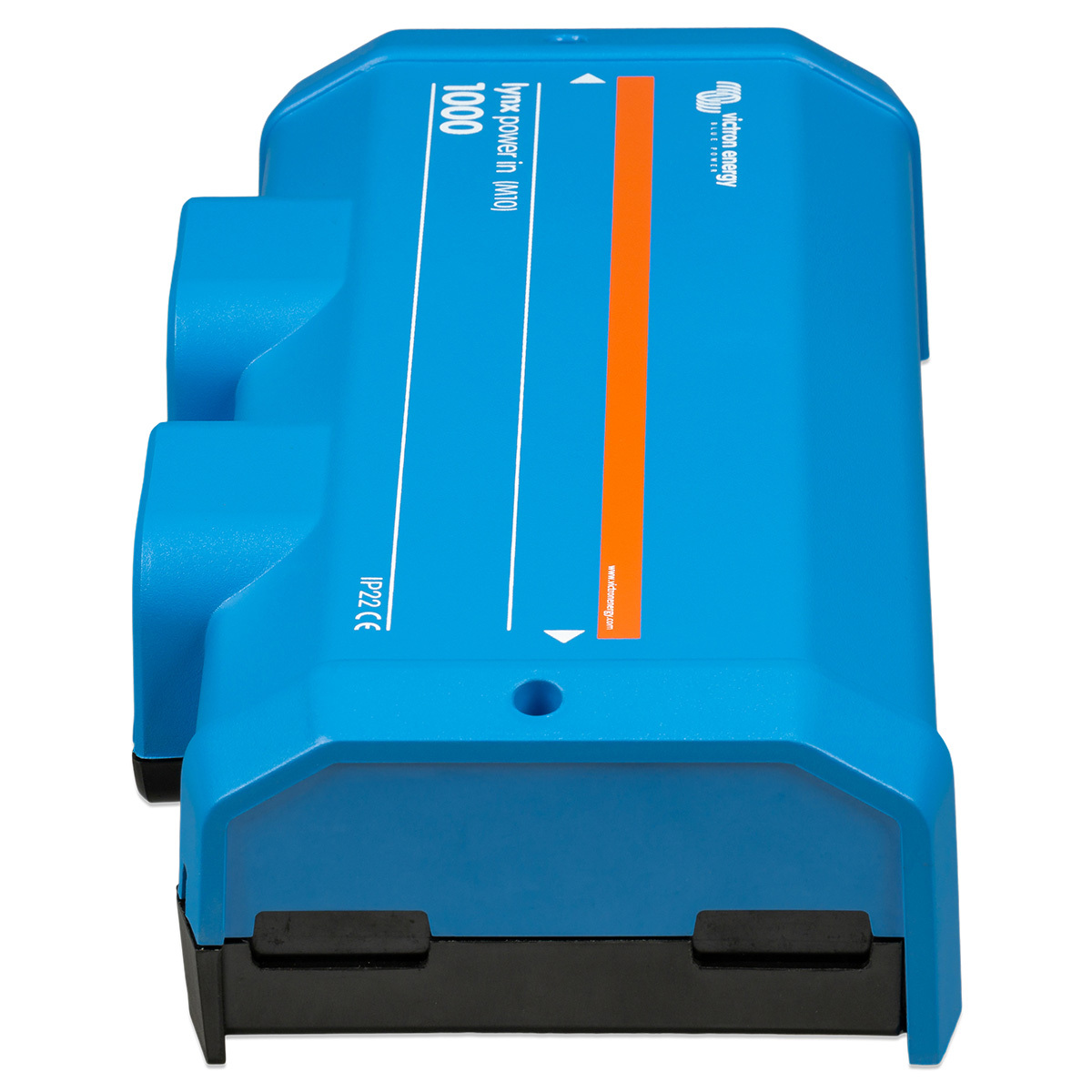

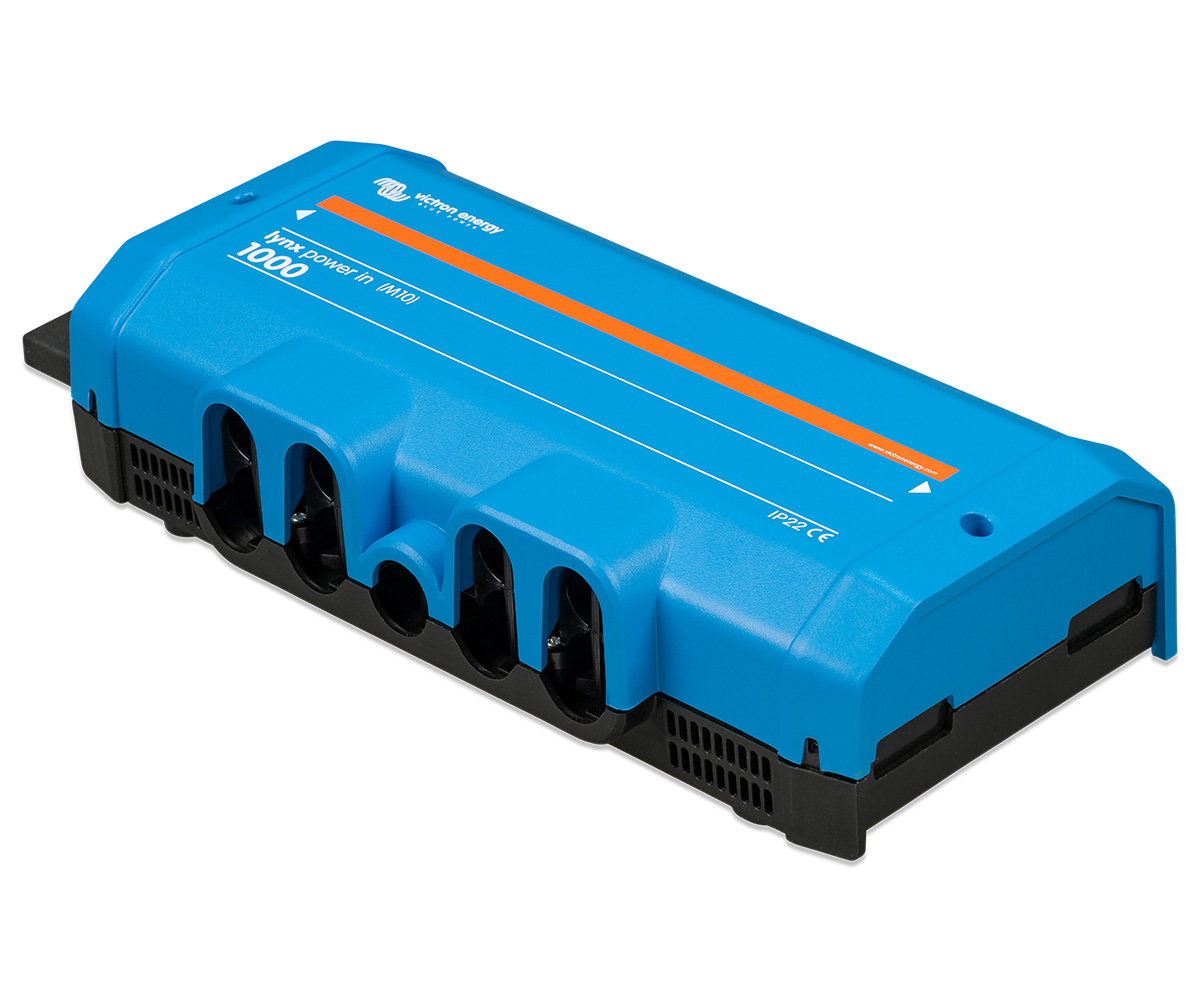

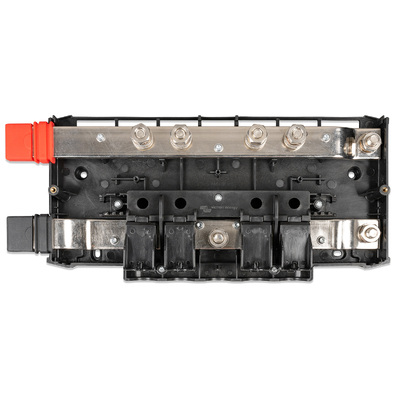

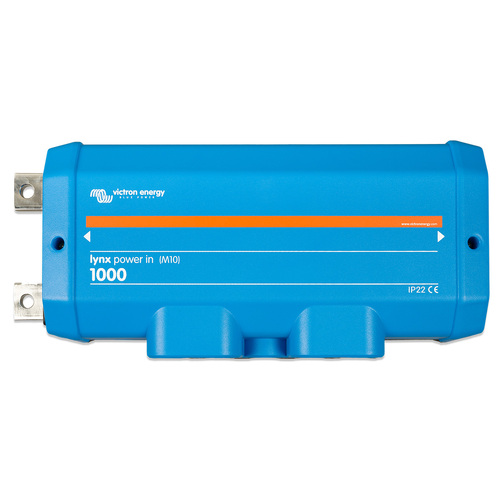

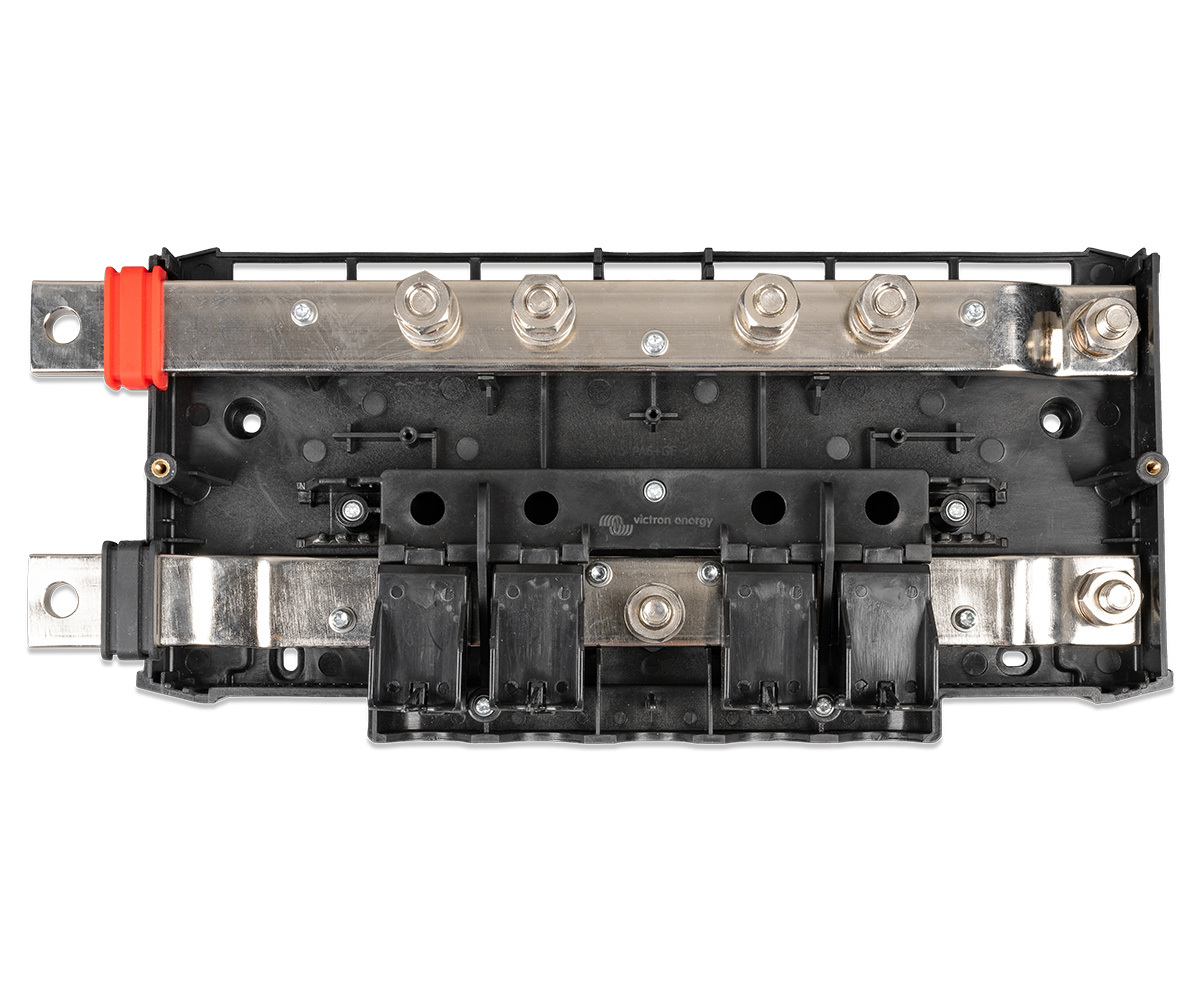

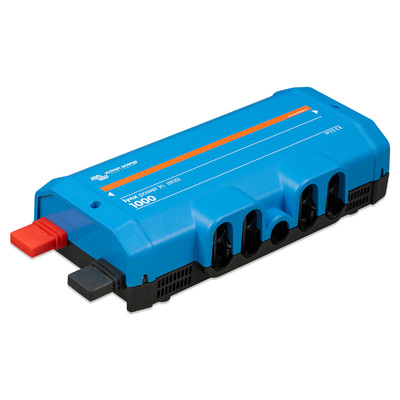

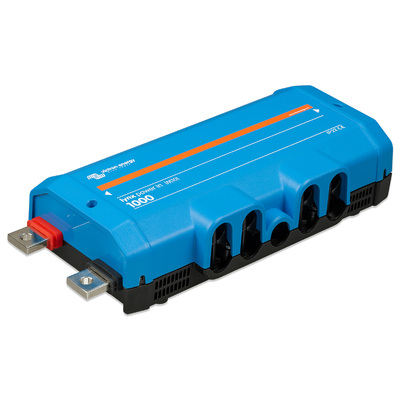

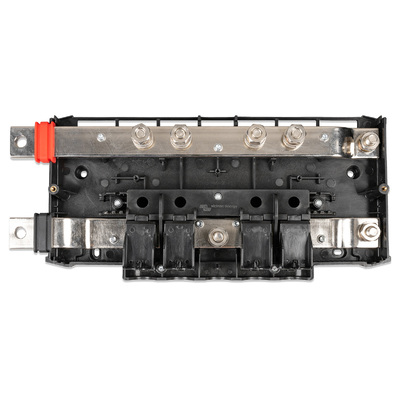

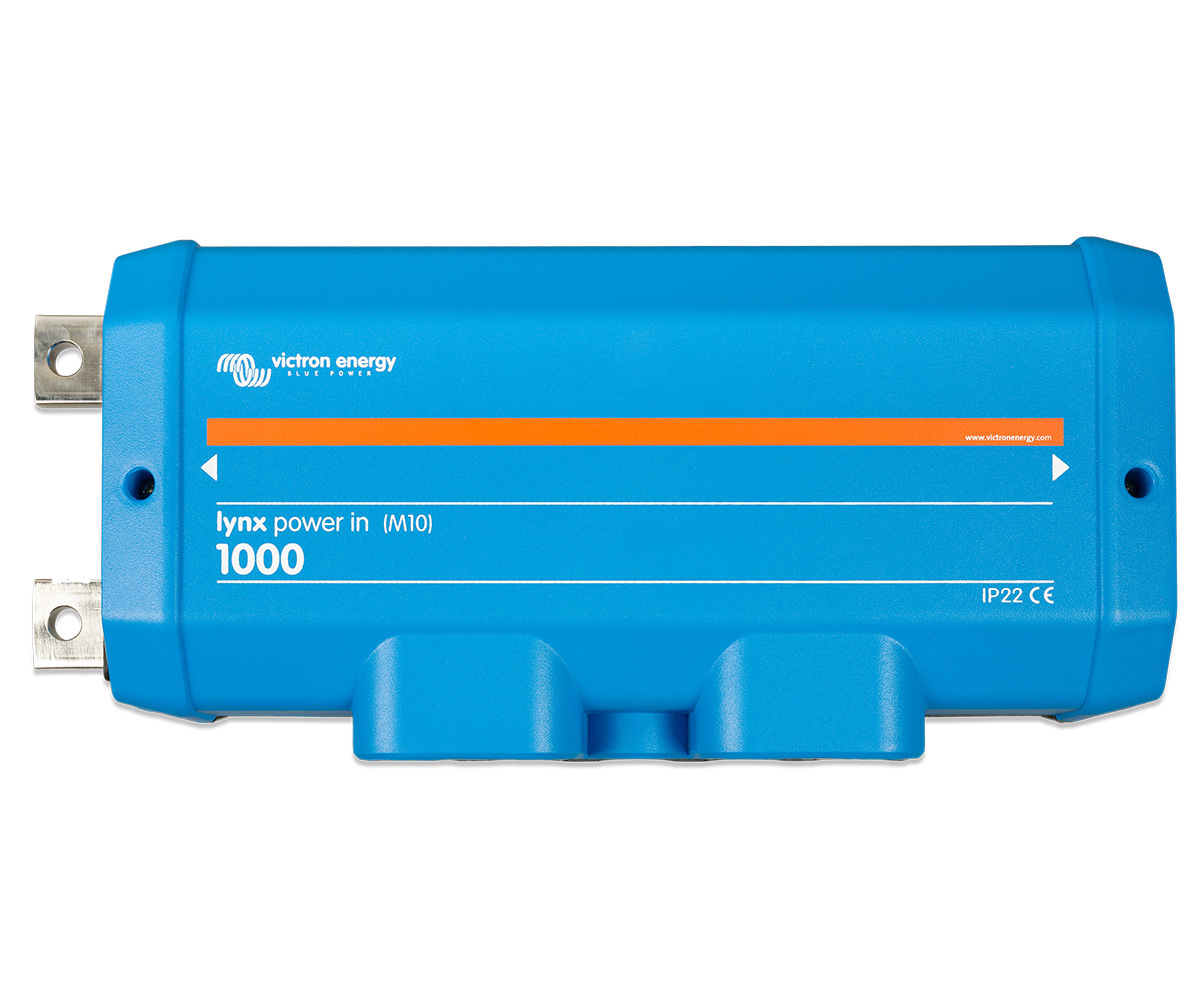

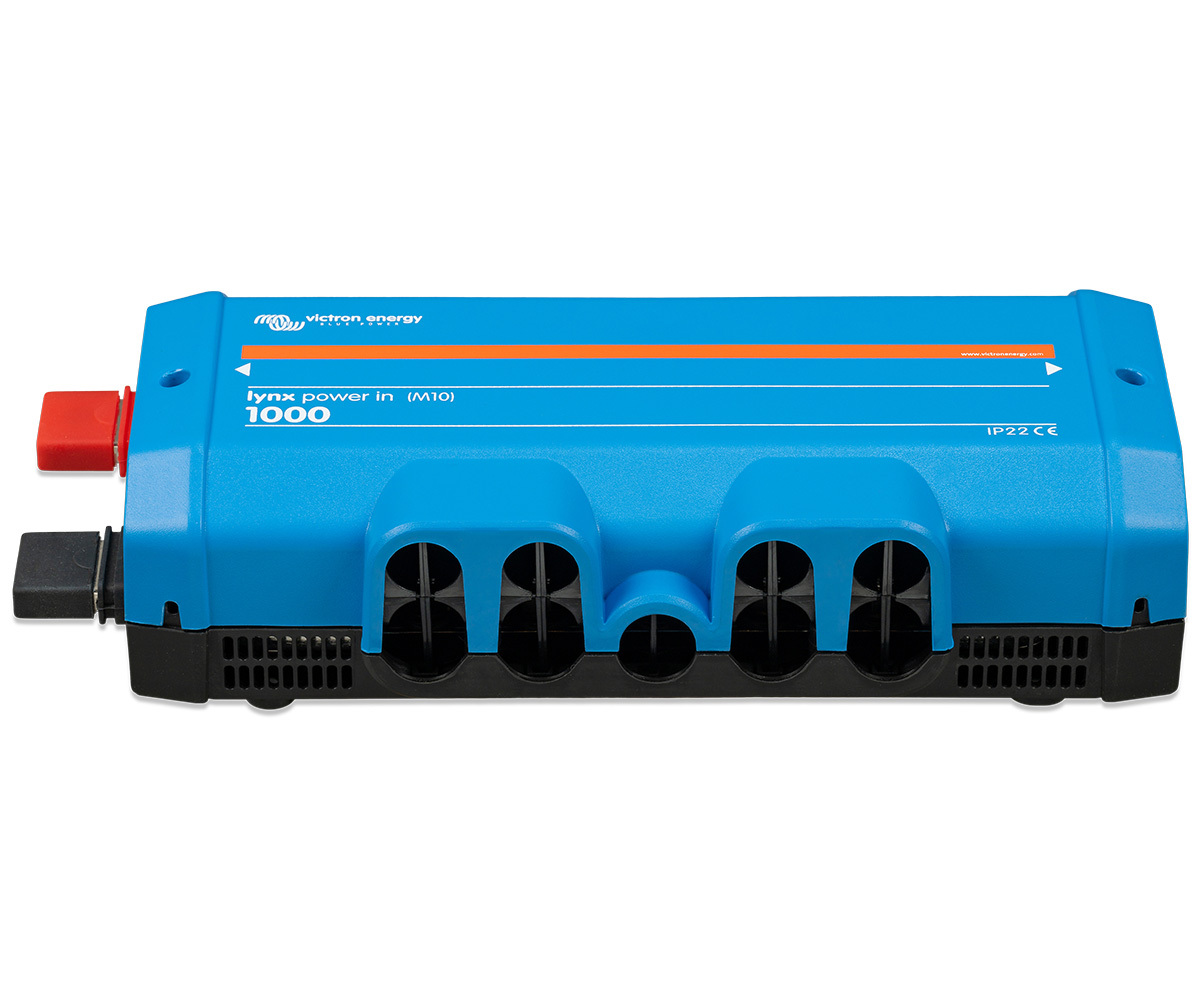

The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. It is a modular DC busbar, used to connect batteries to the Lynx DC distribution system.

FEATURES:

  • Voltage range 9 - 60Vdc
  • Current rating 1000A
  • Busbar M10 size
  • Enclosure material ABS
  • Enclosure dimensions (hxwxd) 290 x 170 x 80mm
  • Unit weight 2.1 kg
  • Busbar material Tinned copper
  • Busbar dimensions (hxw) 8 x 30mm
  • Operating temperature range -40°C to +60°
  • Storage temperature range -40°C to +60°
  • Protection class IP22

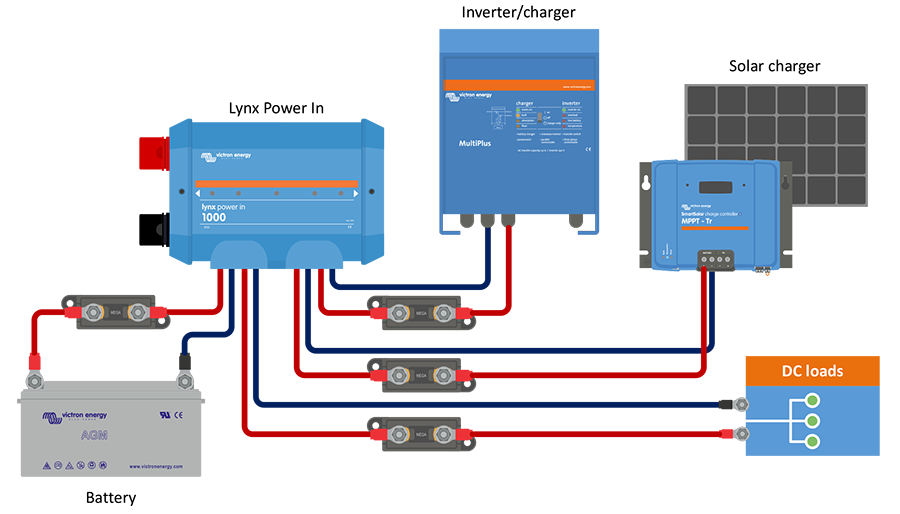

System Example - Lynx Power In

Victron Lynx Power In System Example





SKU VIC.LYN020102010
Model # LYN020102010
UPC/EAN 8719076057581
Brand Victron Energy
Shipping Weight 2.1000kg
Shipping Width 0.290m
Shipping Height 0.080m
Shipping Length 0.170m
Shipping Cubic 0.003944000m3
