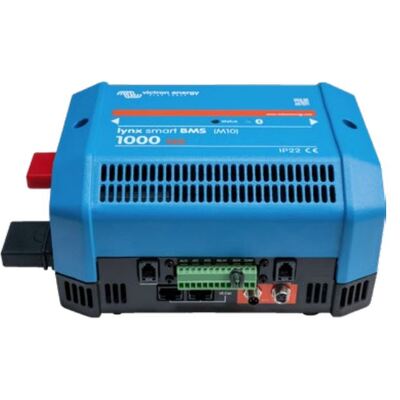

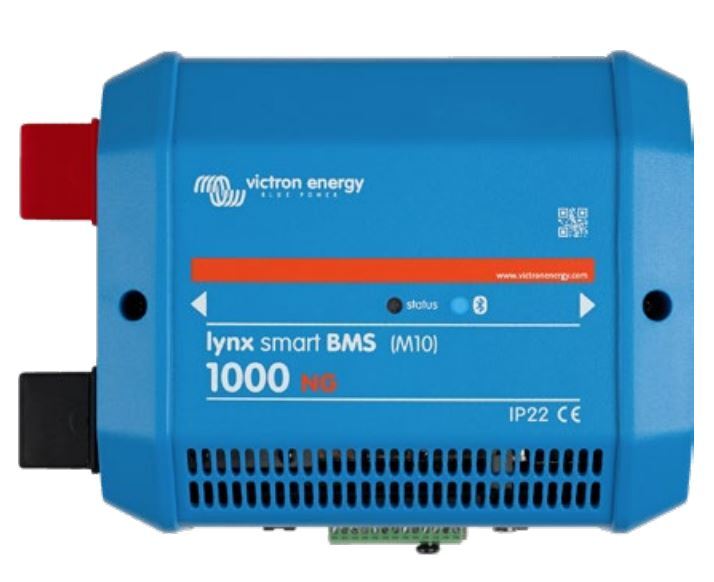

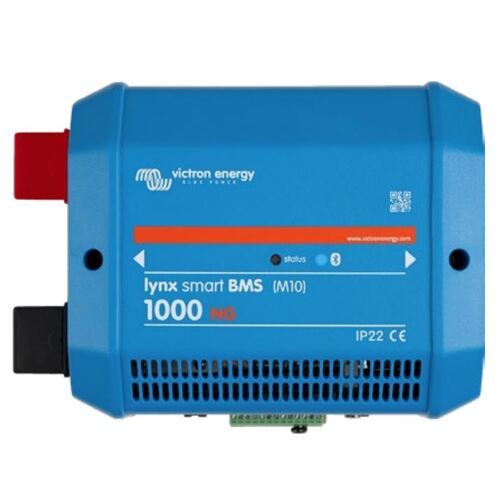

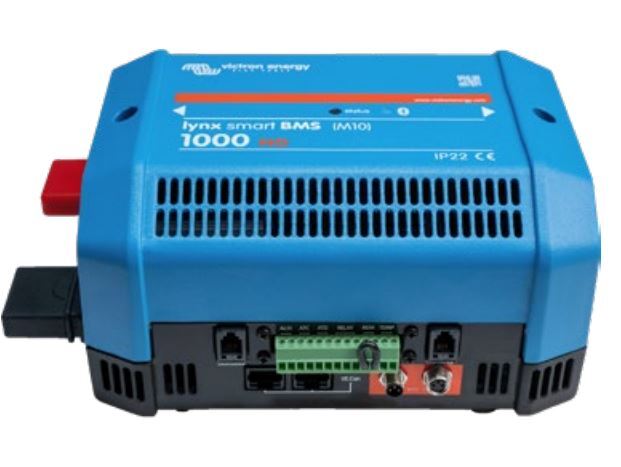

The Lynx Smart BMS NG 1000 Amp (M10) is a specialized Battery Management System designed exclusively for Victron's Lithium NG batteries. These batteries, which utilise Lithium Iron Phosphate (LiFePO4) technology, come in 12.8V, 25.6V, and 51.2V versions with various capacities. They can be arranged in series, parallel, or series/parallel configurations to create battery banks with system voltages of 12V, 24V, or 48V. Up to 50 batteries can be connected in a single system, providing a maximum energy storage capacity of 192kWh in a 12V system and up to 384kWh in 24V and 48V systems. For full details, visit the Victron Lithium NG battery product page.

Among the BMS options for the Lithium NG batteries, the Lynx Smart BMS NG stands out as the most feature-rich and comprehensive choice. It integrates smoothly with other M10 products in the Lynx Distributor system and is available in 500A (M10) and 1000A (M10) versions.

Key Features

  • Versatile Configuration: Supports up to 50 batteries in a single system, providing energy storage capabilities of up to 192kWh in a 12V system, and 384kWh in 24V and 48V systems.
  • High-Powered Options: Available in 500A (M10) and 1000A (M10) versions, featuring a built-in safety contactor for enhanced battery protection.
  • Seamless Integration: Integrates smoothly with other M10 products in the Lynx Distributor system, ensuring a comprehensive power management solution.
  • Advanced Monitoring & Control:
    • Bluetooth connectivity for real-time monitoring via the VictronConnect App.
    • VE.Can connectivity for integration with GX devices like Cerbo GX or Ekrano GX, and monitoring via the VRM portal.
    • Diagnostic tools such as Instant Readout for quick status checks.
  • Pre-Charge Circuit: Prevents high inrush currents when connecting capacitive loads, eliminating the need for external pre-charging devices.
  • AUX Power Supply: Onboard auxiliary power supply (1.1 A @ system voltage) for powering specific loads even after BMS shutdown.
  • Programmable Relay: Can be used as an alarm relay or to control an alternator via its external regulator.

Technical Specifications

  • Battery Voltage Range: 9 – 60 VDC
  • Maximum Input Voltage: 75 VDC
  • Supported System Voltages: 12V, 24V, 48V
  • Safety Contactor Continuous Current Rating:
    • 500A continuous (500A version)
    • 1000A continuous (1000A version)
  • Power Consumption:
    • Off Mode: 0.3 mA
    • Standby Mode: 0.6W (50mA at 12V)
    • On Mode: 2.6W (500A) to 4.2W (1000A)
  • Operating Temperature Range: -40°C to +60°C
  • Protection Class: IP22

Applications

The Lynx Smart BMS NG is ideal for use in advanced energy storage systems, particularly where large-scale battery banks are required. Its integration capabilities make it perfect for marine, automotive, and off-grid energy solutions, ensuring reliable and safe energy management.

How does the new Victron Energy Lithium NG Battery & BMS NG work?

Lynx Smart BMS NG 500 A (M10) (LYN034160310) 1000 A (M10) (LYN034170310)

POWER
Battery voltage range 9 – 60 VDC
Maximum input voltage 75 VDC
Supported system voltages 12, 24 or 48 V
Reverse polarity protection No
Main safety contactor continuous current rating 500 A continuous 1000 A continuous
Main safety contactor peak current rating 600 A for 5 minutes 1200 A for 5 minutes
Power consumption OFF mode 0.3 mA for all system voltages
Power consumption in Standby mode Approximately 0.6 W (50 mA at 12 V)
Power consumption in ON mode Approx. 2.6 W (217 mA at 12 V)
depending on the state of the relays		 Approximately 4.2 W (350 mA at
12 V) depending on the state of the relays
Minimum load resistance for pre-charging 10 Ω and above for 12 V systems
20 Ω and above for 24 V and 48 V systems
AUX output maximum current rating 1.1 A continuous, protected by resettable fuse
Allow-to-charge port Maximum current rating 0.5 A at 60 VDC, protected by resettable fuse
Allow-to-discharge port
Maximum current rating		 0.5 A at 60VDC, protected by resettable fuse
Alarm relay (SPDT) Maximum current rating 2 A at 60 VDC

CONNECTIONS
Busbar M10 (Torque: 33 Nm) – can be combined with all M10 Lynx products
VE.Can RJ45
I/O Removable multi-connector with screw terminals
Battery BTV cables Male and female circular 3-pole connector with M8 screw ring Up to 50 batteries can be connected in one system
Lynx Distributor fuse monitoring (up to 4 modules) RJ10 (cable ships with each Lynx Distributor)

PHYSICAL
Enclosure material ABS
Enclosure dimensions (h x w x d) 190 x 180 x 80 mm 230 x 180 x 100 mm
Unit weight 1.9 kg 2.7 kg
Busbar material Tinned copper
Busbar dimensions (h x w) 8 x 30 mm

ENVIRONMENTAL
Operating temperature range -40 °C to +60 °C
Storage temperature range -40 °C to +60 °C
Humidity Max. 95 % (non-condensing)
Protection class IP22

STANDARDS
Safety EN-IEC 63000:2018
EMC EN-IEC 61000-6-3:2007/A1:2011/AC:2012
QMS NEN-EN-ISO 9001:2015
SKU VIC.LYN034170310
Model # LYN034170310
UPC/EAN 8719076063568
Brand Victron Energy
Shipping Weight 3.0000kg
Shipping Width 0.110m
Shipping Height 0.190m
Shipping Length 0.300m
Shipping Cubic 0.006270000m3
