Inverter/Charger with GX inside

The MultiPlus-II GX is an Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features - such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power - can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

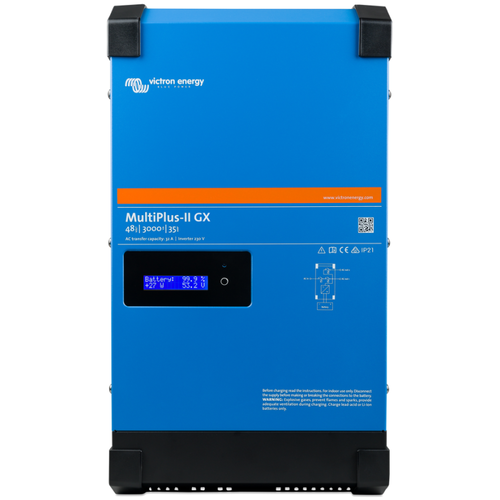

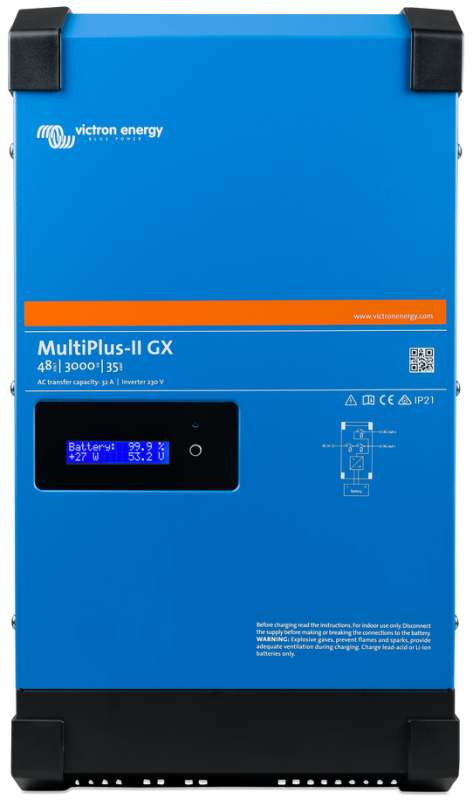

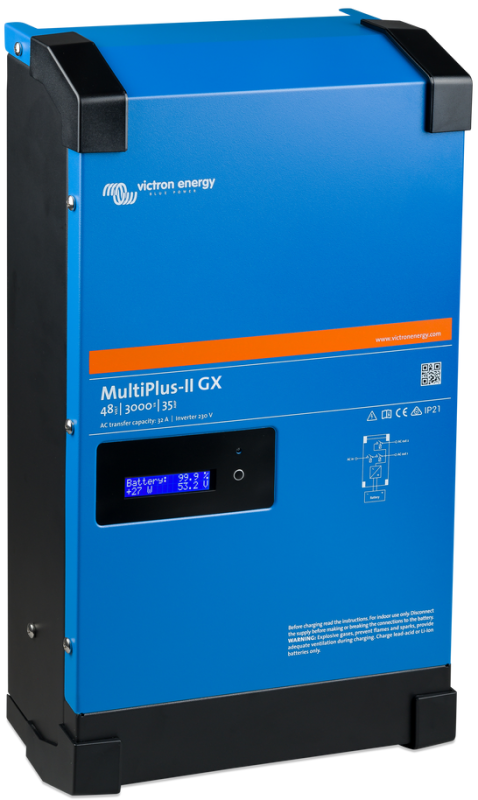

A MultiPlus-II with LCD and GX functionality

The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.


GX Device Inbuilt

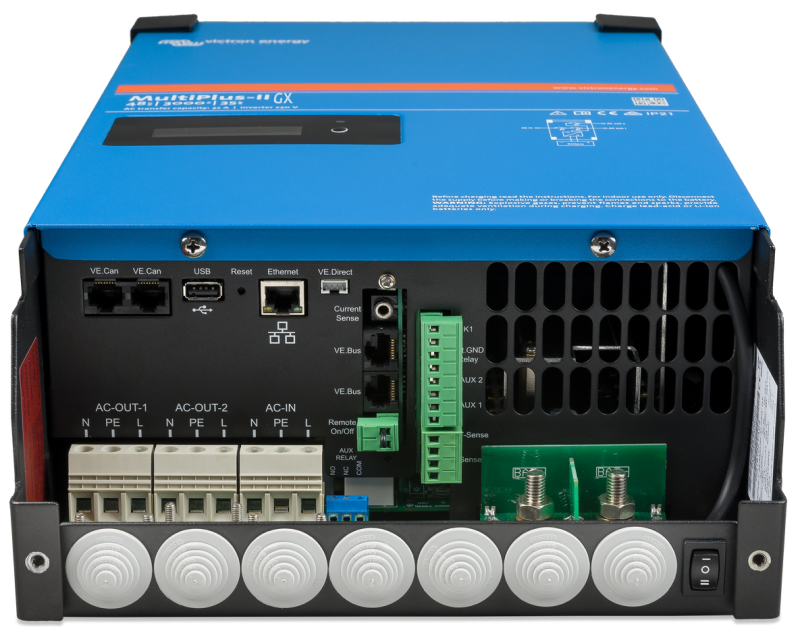

The integrated GX device includes:

  • A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
  • A USB port.
  • A Ethernet port.
  • A VE.Direct port.


Display and Wi-Fi

The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.


Applications

The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote monitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.


Parallel and three phase operation

Only one GX unit is needed in case of Parallel and three phase operation.

This item must be installed by a licensed Electrician

Victron EasyPlus Basic Setup



The basics of using VE Configure



MultiPlus-II GX 48/3000/35-32

INVERTER/CHARGER

PowerControl & PowerAssist Yes
Transfer switch 32A
Maximum AC input current 32A
Auxiliary output Yes (32A)

INVERTER

Input voltage range 38 – 66V
Output Output voltage: 230 VAC ± 2%
Frequency: 50 Hz ± 0,1%   (1)
Cont. output power at 25°C   (3) 3000VA / 2400W
Cont. output power at 40°C / 65°C 2200W / 1700W
Maximum apparent feed-in power 2500VA
Peak power 5500W
Maximum efficiency 95%
Zero load power 11W
Zero load power in AES mode 7 W
Zero load power in Search mode 2W

CHARGER

AC Input Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Charge voltage 'absorption' 57,6V
Charge voltage 'float' 55,2V
Storage mode 52,8V
Maximum battery charge current   (4) 35A
Battery temperature sensor Yes
Programmable relay   (5) Yes
Protection   (2) a - g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port Yes, 2x

GENERAL

Interfaces VE.Can, USB, Ethernet, VE.Direct, Wi-Fi
Remote on-off Yes
Operating temp. range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing): max 95%

ENCLOSURE

Material & Colour Steel, blue RAL 5012
Protection category IP21
Battery-connection M8 bolts
230 V AC-connection Screw terminals 13 mm2 (6 AWG)
Weight 26kg
Dimensions (hxwxd) 506 x 275 x 147 mm

STANDARDS

Safety  EN-IEC 60335-1, EN-IEC 60335-2-29
EN-IEC 62109-1, EN-IEC 62109-2
Emission / Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
SKU VIC.PMP482306000
Model # PMP482306000
UPC/EAN 8719076046448
Brand Victron Energy
Shipping Weight 20.7000kg
Shipping Width 0.600m
Shipping Height 0.250m
Shipping Length 0.350m
Shipping Cubic 0.052500000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
