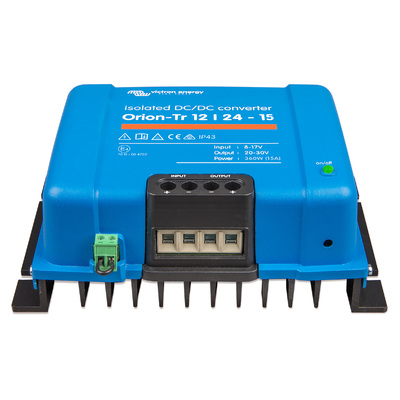

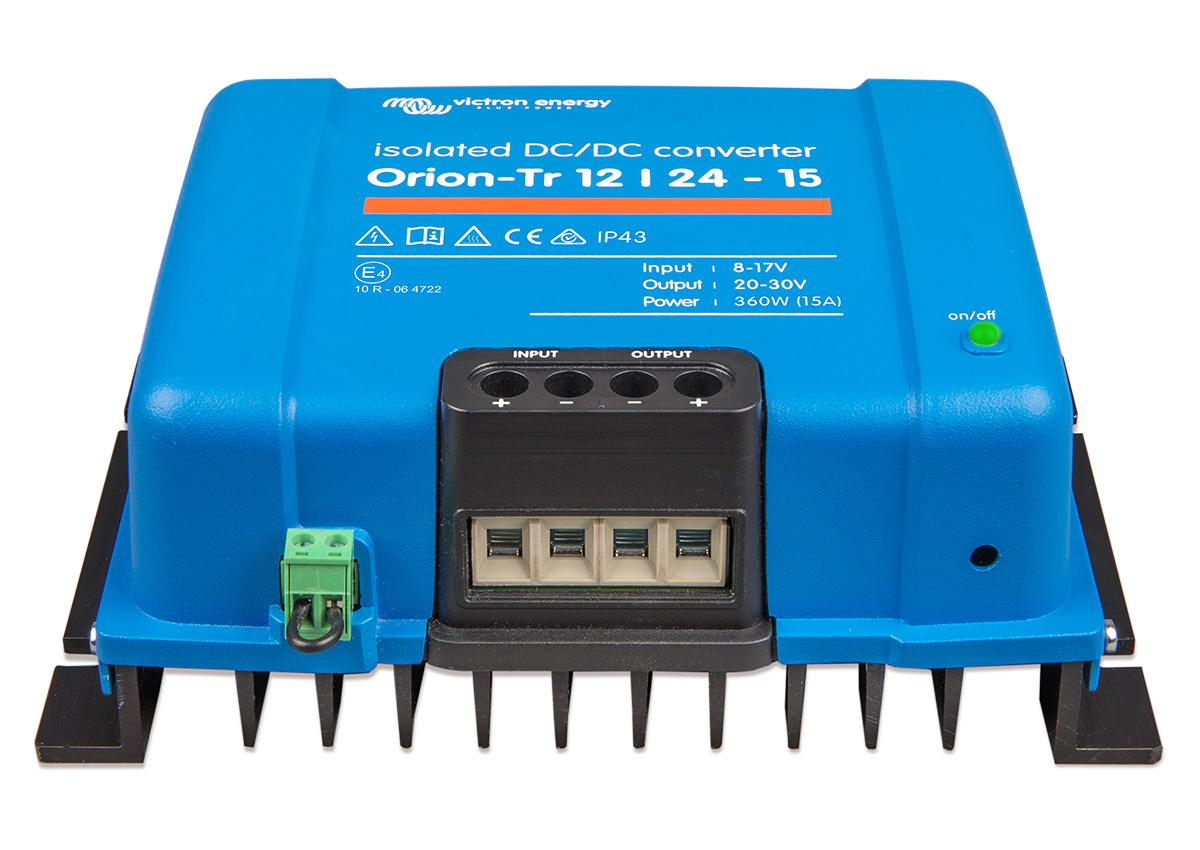

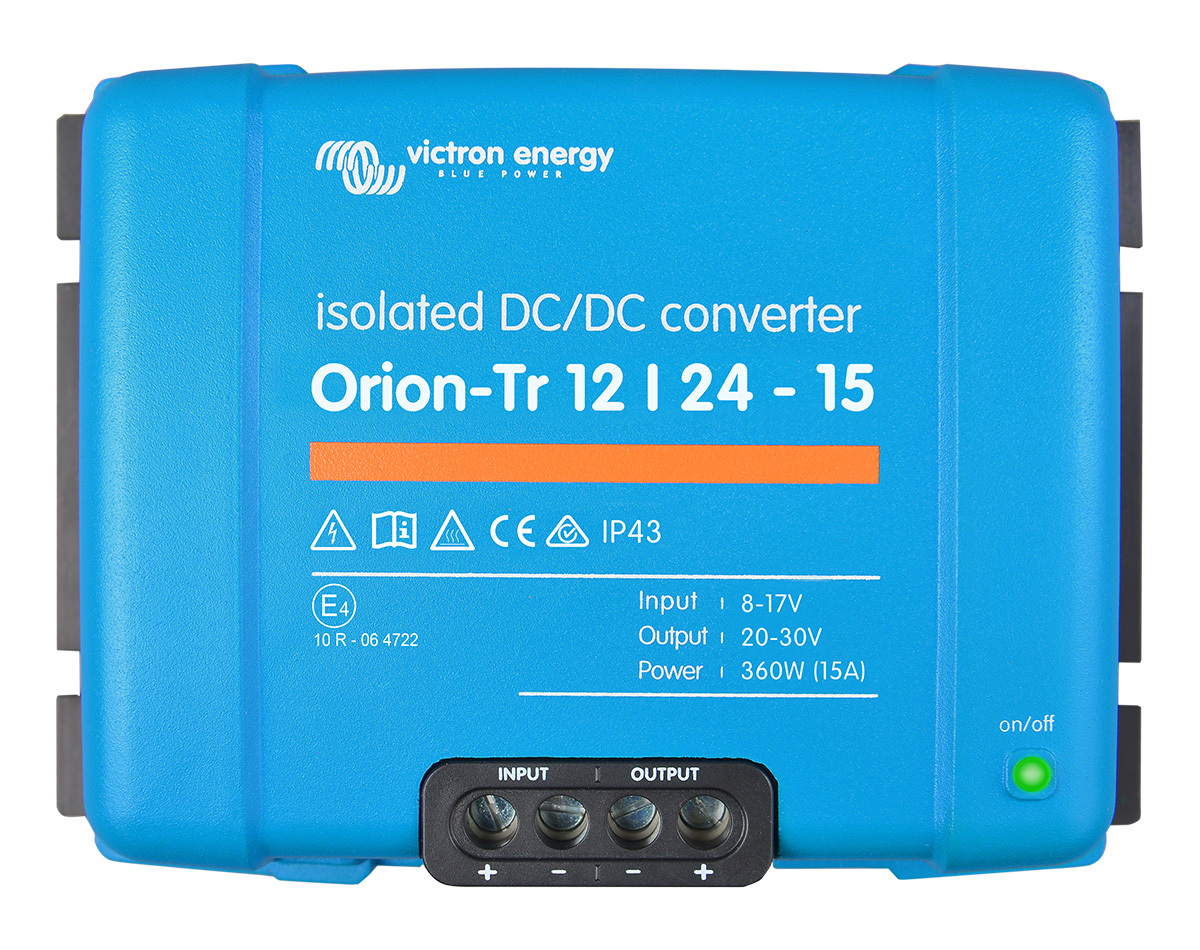

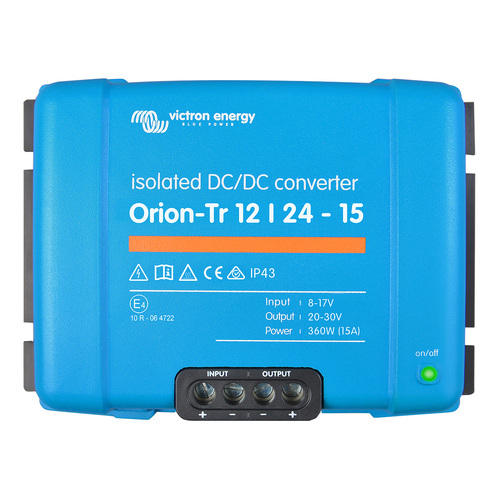

Victron Orion-Tr 12/24-15A (360W) Isolated DC-DC converter
Victron Orion-Tr 12 Volt Input to 24 Volt Adjustable Output 15 Amp (360W) Isolated DC-DC converter
SKU: VIC.ORI122441110 | MPN: ORI122441110
SAVE $108.16 (30%)
Only 1 left In Stock
Ships today from our Southport warehouse if order placed by 1pm
Victron Orion-Tr DC-DC converter 12V to 24V 15A (360W) with Galvanic isolation
Features:
Remote on/off
The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch.
Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase the output current.
An unlimited number of units can be connected in parallel.
IP43 protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input voltage range | 10-17V |
Under voltage shut down | 7V |
Under voltage restart | 7.5V |
Nominal output voltage | 12.2V |
Output voltage adjust range | 20-30V |
Output voltage tolerance | +/- 0.2V |
Output noise | 2mV rms |
Cont. output current at nominal output voltage and 40°C | 15A |
Maximum output current (10 s) at nominal output voltage minus 20% | 25A |
Short circuit output current | 40A |
Cont. output power at 25°C | 430W |
Cont. output power at 40°C | 360W |
Efficiency | 88% |
Off load current | < 100mA |
Galvanic isolation | -20 to +55°C (derate 3% per °C above 40°C) |
Humidity | Max. 95% non-condensing |
DC connection | Screw terminals |
Maximum cable cross-section | 16 mm² (AWG6) |
Weight | 1.8kg |
Dimensions | 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch) |
Standards: Safety Emission Immunity Automotive Directive |
EN 60950 EN 61000-6-3, EN 55014-1 EN 61000-6-2, EN 61000-6-1, EN 55014-2 ECE R10-5 |
SKU | VIC.ORI122441110 |
Model # | ORI122441110 |
UPC/EAN | 8719076038832 |
Brand | Victron Energy |
Shipping Weight | 1.9200kg |
Shipping Width | 0.205m |
Shipping Height | 0.090m |
Shipping Length | 0.130m |
Shipping Cubic | 0.002399000m3 |
Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
