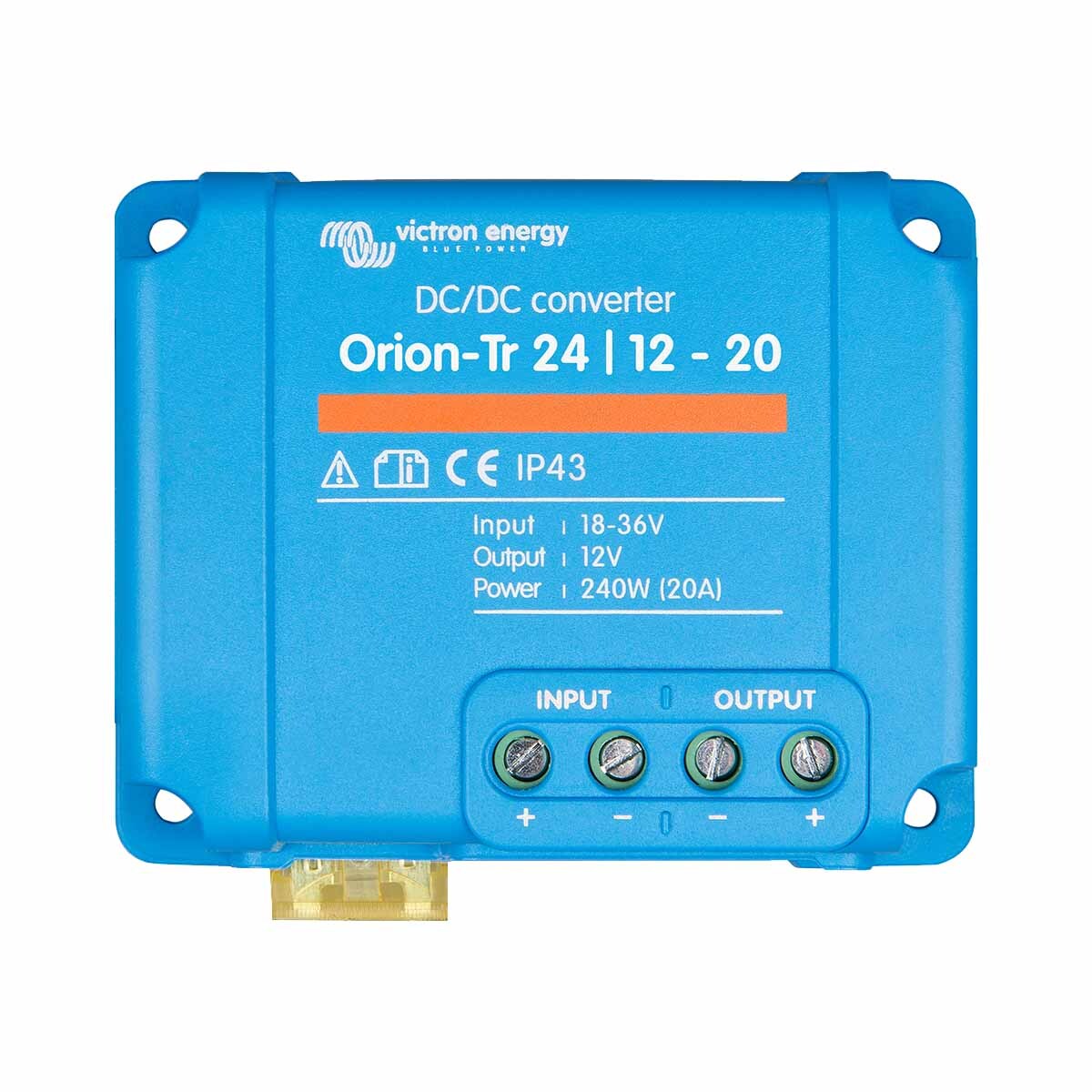

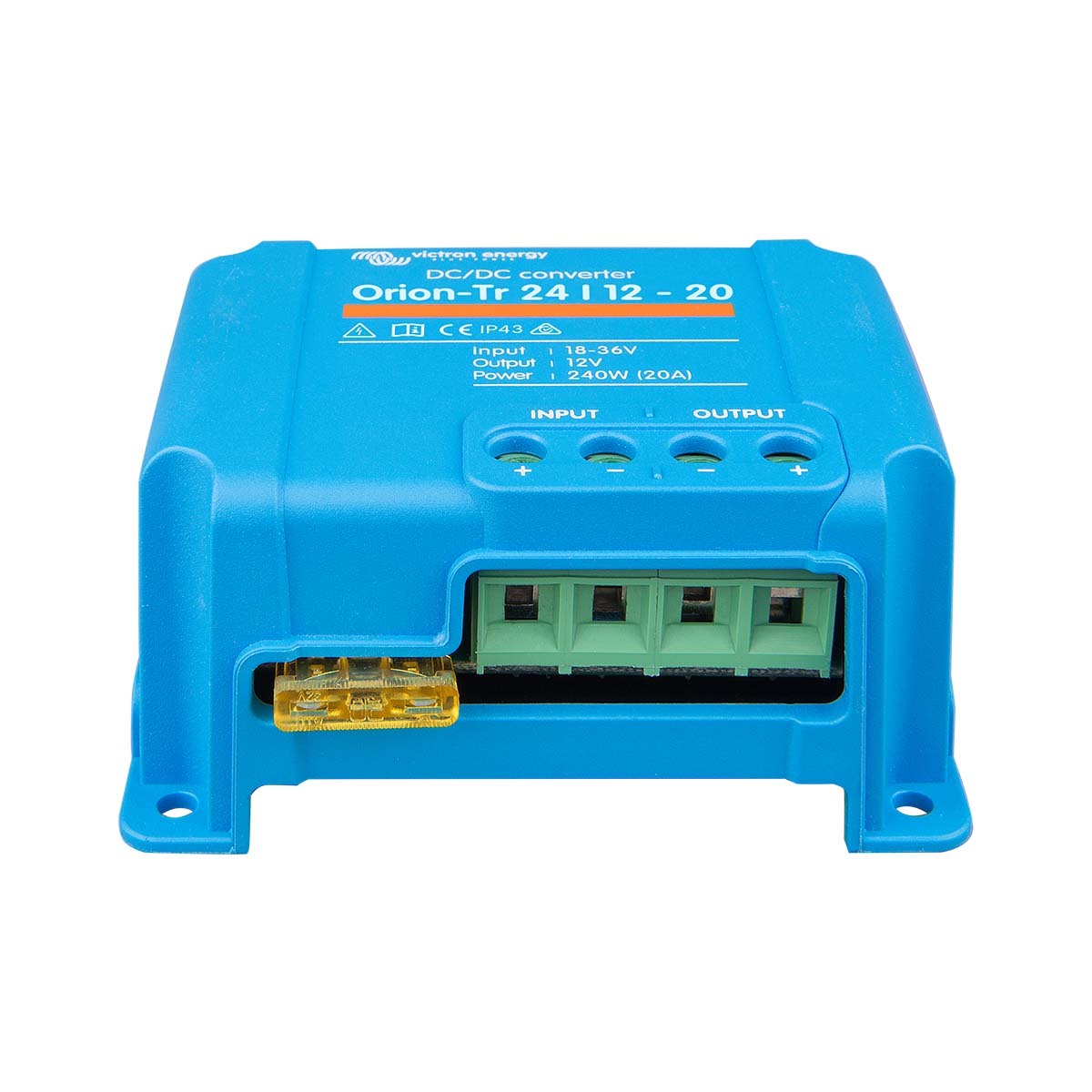

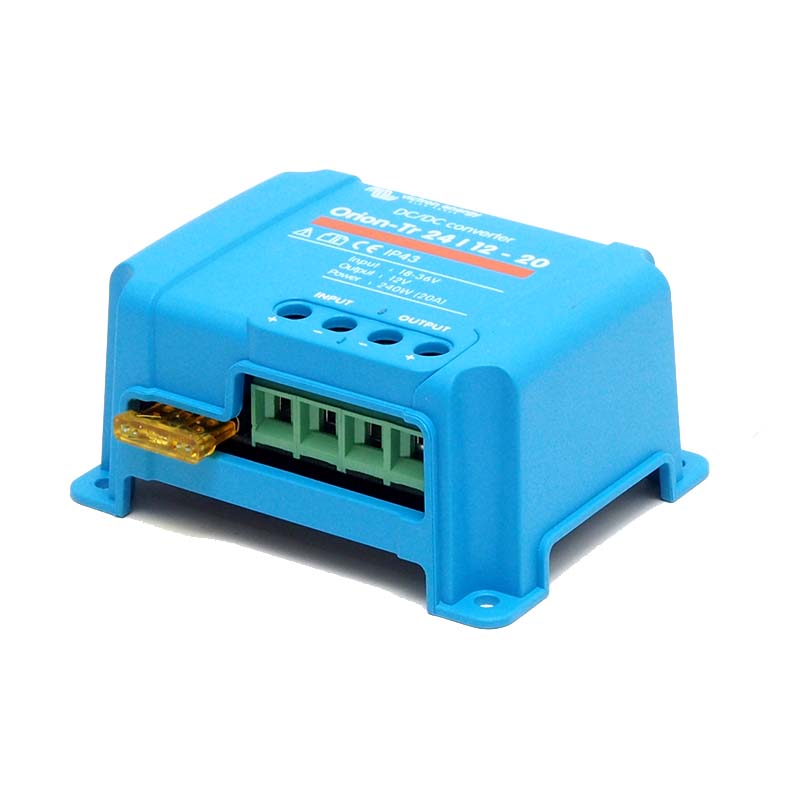

Victron Orion-Tr 24/12-20 (240W) DC-DC converter

The Victron Orion-Tr 24/12-20 (240W) is a high-efficiency, non-isolated DC-DC converter, ideal for various applications where a stable 12V output is needed from a 24V source. It's particularly suitable for automotive, marine, and industrial applications.

Key Features:

  • High Efficiency: Utilizes synchronous rectification technology, ensuring full load efficiency exceeds 95%, significantly reducing energy loss.
  • IP43 Protection: Offers a degree of protection against foreign bodies and moisture, especially when installed with screw terminals oriented downwards.
  • Easy Installation: Equipped with screw terminals, requiring no special tools for installation, simplifying the setup process.
  • 24 Volt Models: Designed specifically for systems with a 24V input voltage.

Application:

The Orion-Tr converter is ideal for systems that require a stable and efficient reduction from a 24V power source to a 12V output, such as in vehicles with 24V electrical systems but needing to power 12V devices

Model Orion-Tr 24/12-5 Orion-Tr 24/12-10 Orion-Tr 24/12-15 Orion-Tr 24/12-20
Input Voltage Range 18-35V
Output Voltage 12.7V 12.5V 12.5V 12.5V
Efficiency 95% 97% 97% 97%
Continuous Output Current 5A 10A 15A 20A
Max. Output Current 7A 12A 20A 25A
Galvanic Isolation No
Off Load Current < 20mA < 45mA < 35mA < 35mA
Operating Temperature Range -20 to +55°C (derate 3% per °C above 40°C)

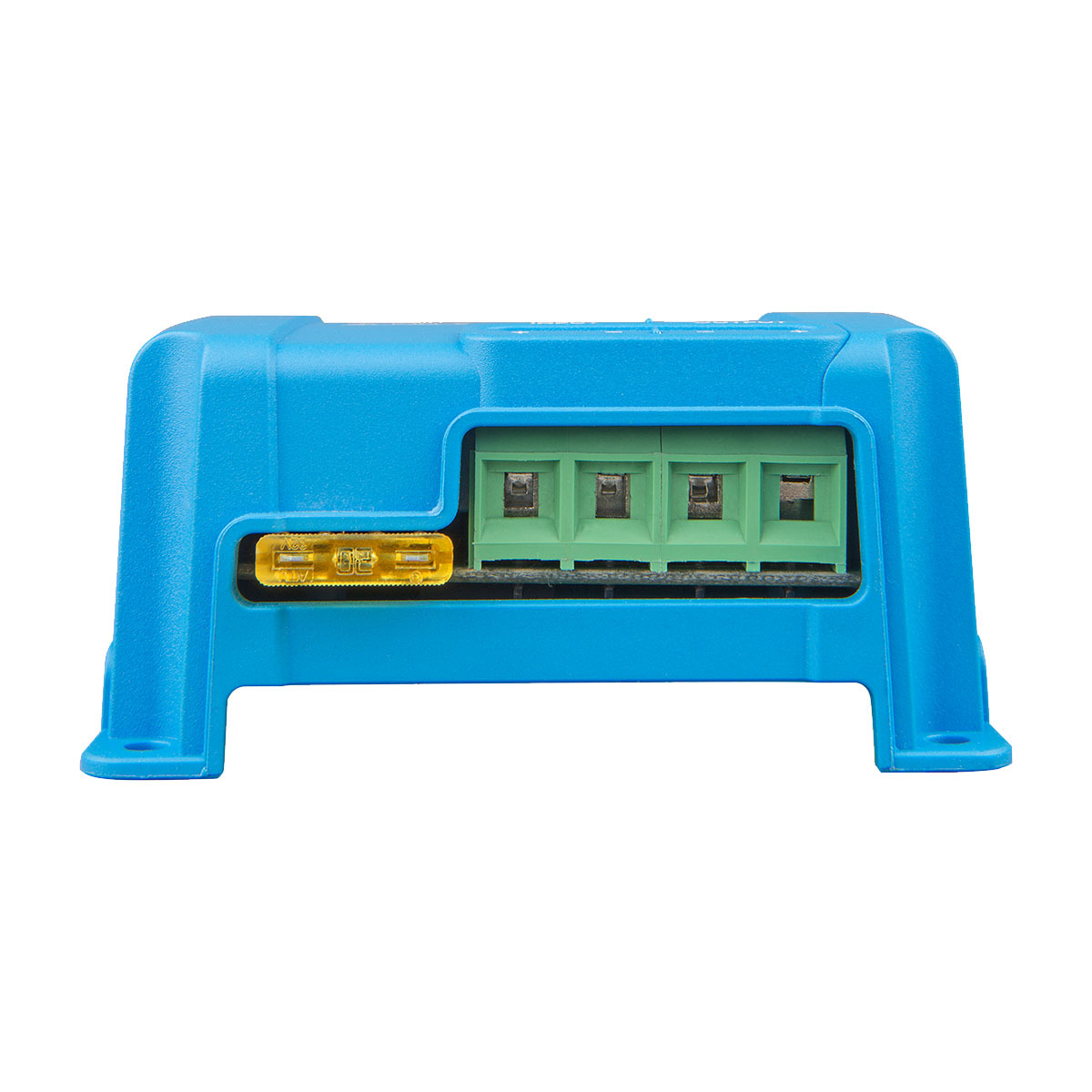

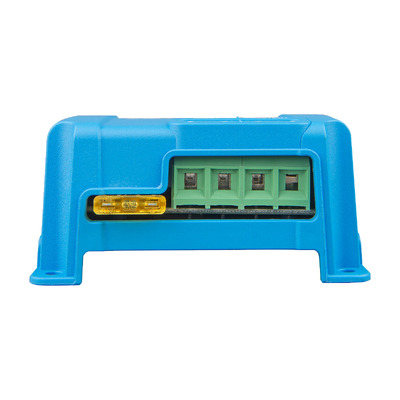

DC Connection Screw terminals
Maximum Cable Cross-section 3.3 mm² (AWG12) 6 mm² (AWG10)
Weight (kg/lbs) 0.09 (0.20) 0.2 (0.44) 0.25 (0.55) 0.25 (0.55)
Dimensions (hxwxd) in mm/inches 53x51x27 (2.1x2x1.1) 73x94x37 (2.9x3.7x1.5) 73x94x45 (2.9x3.7x1.8) 73x94x45 (2.9x3.7x1.8)
Standards EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2, ECE R10-4
SKU VIC.ORI241220200R
Model # ORI241220200R
UPC/EAN 8719076023005
Brand Victron Energy
Shipping Weight 0.3200kg
Shipping Width 0.220m
Shipping Height 0.051m
Shipping Length 0.170m
Shipping Cubic 0.001907000m3
