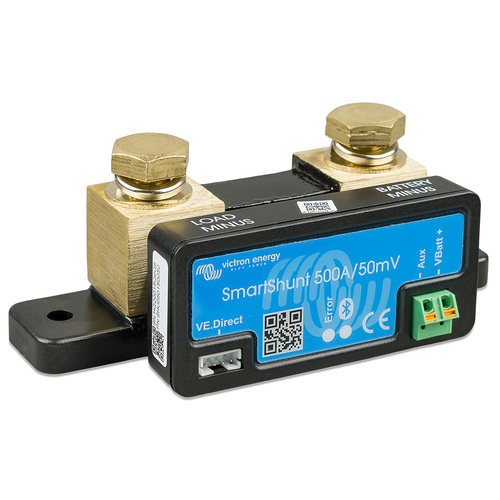

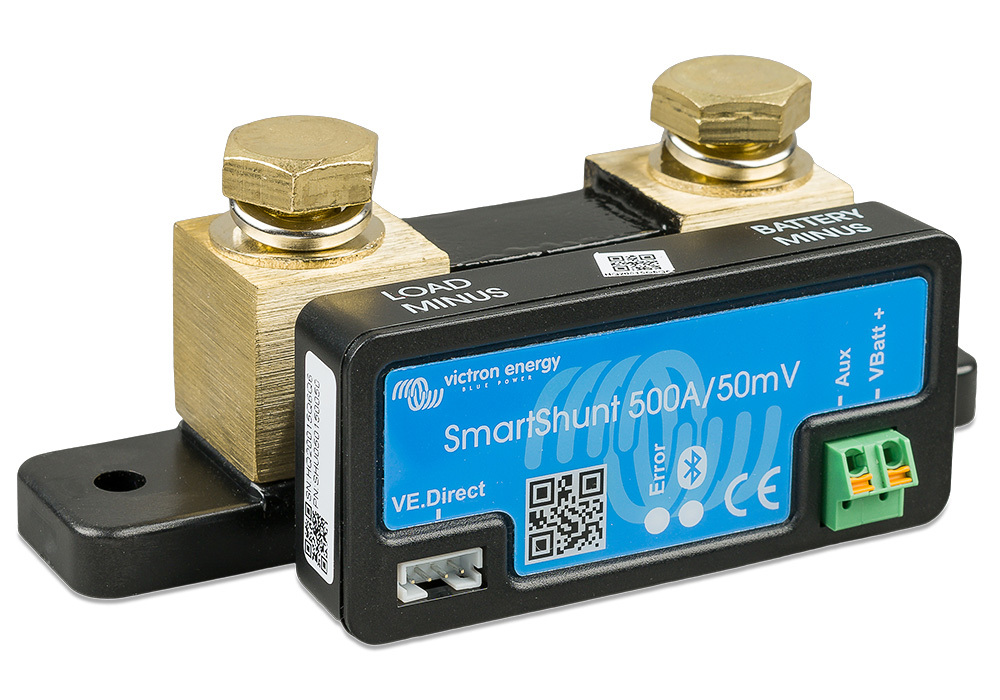

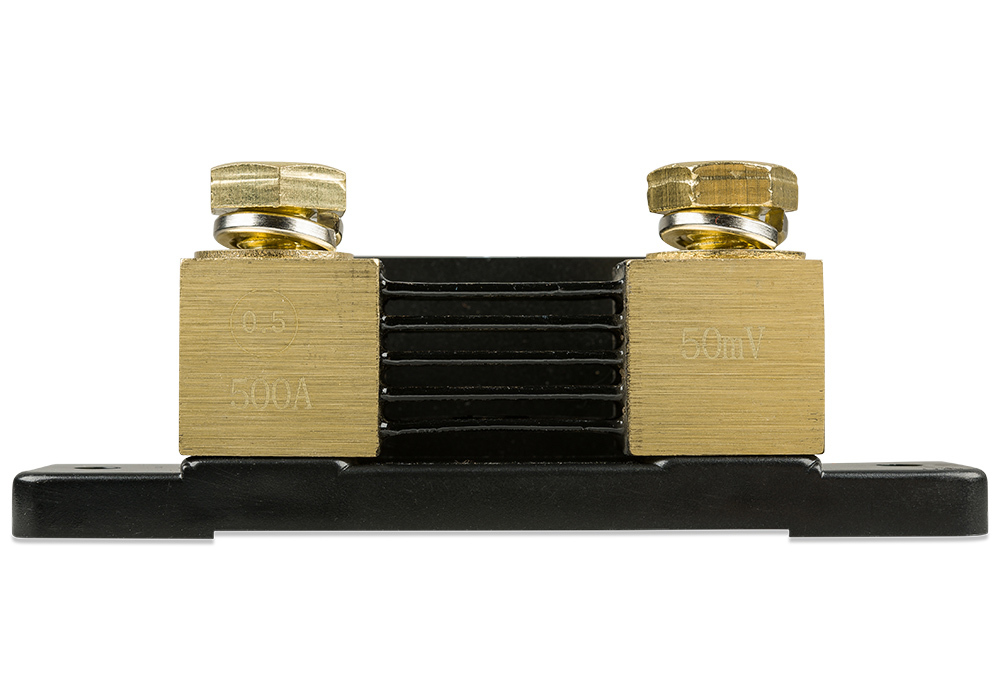

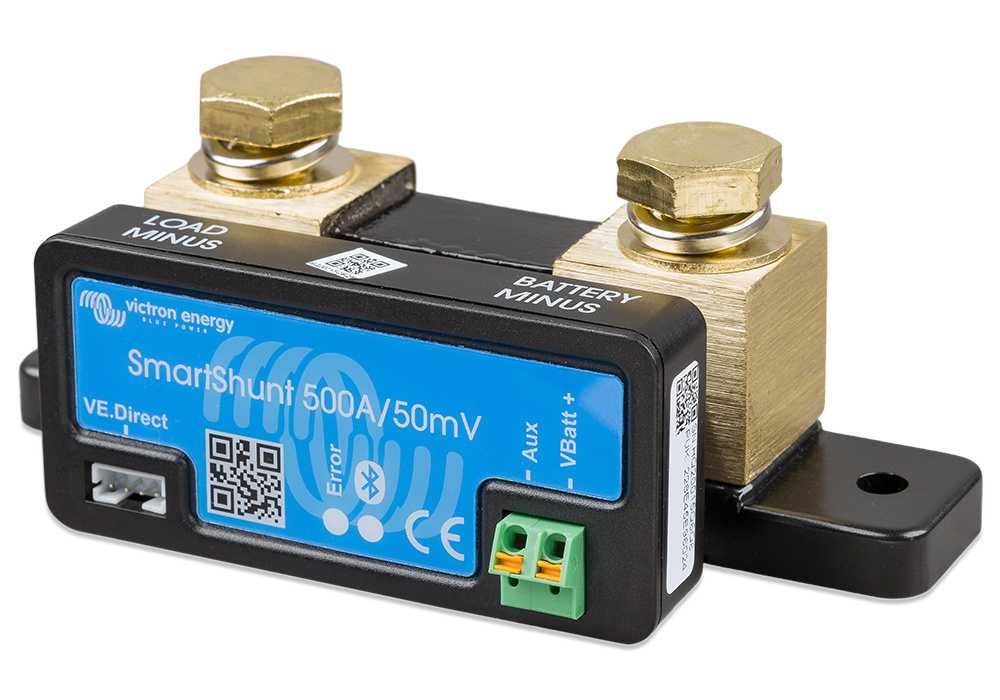

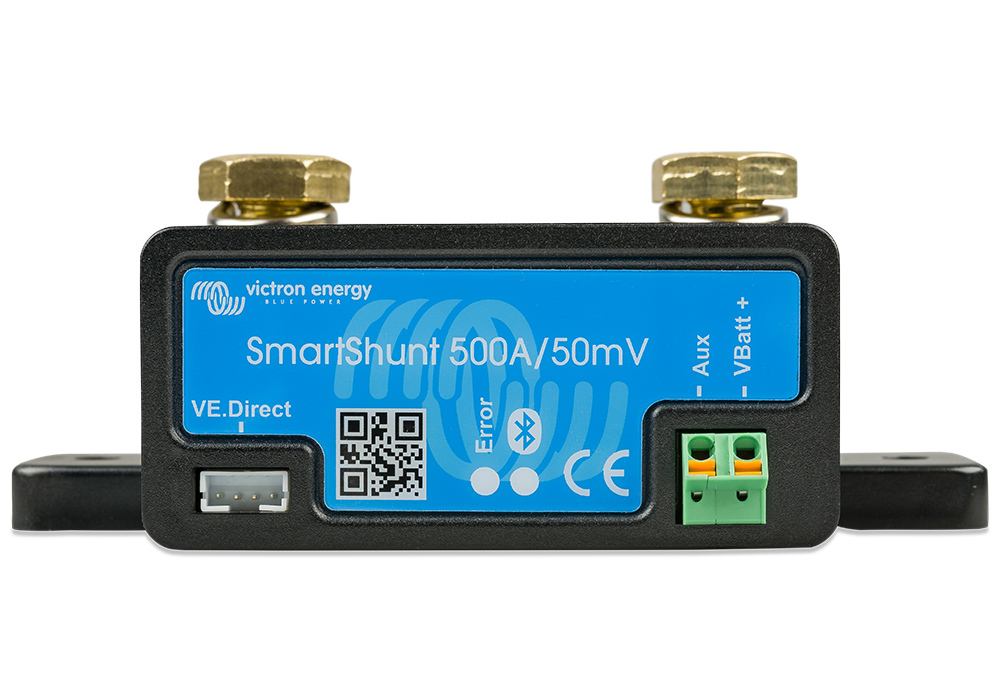

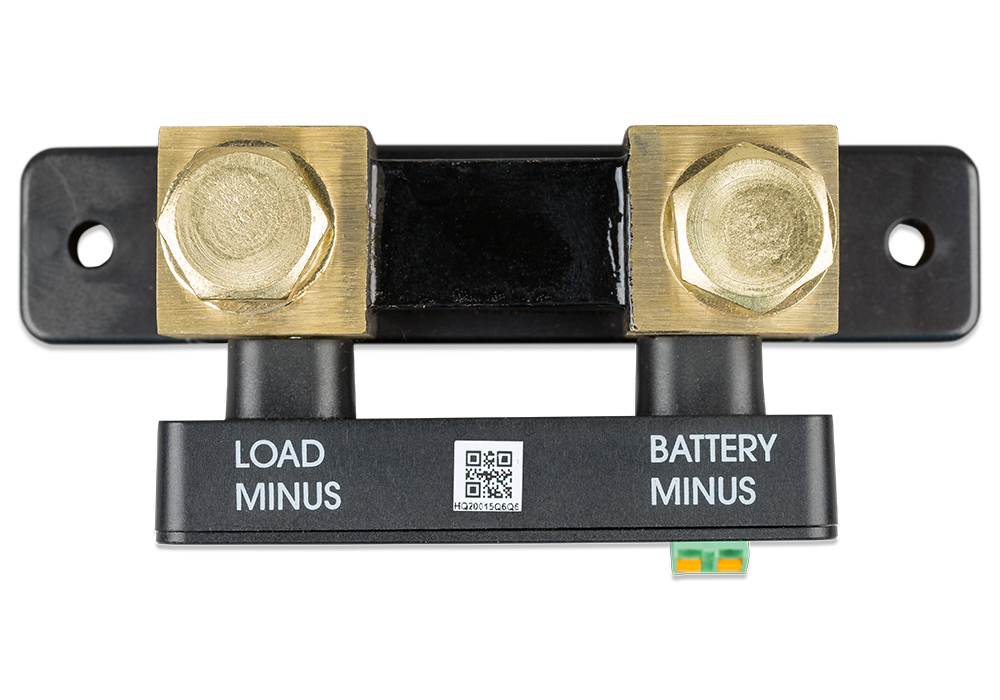

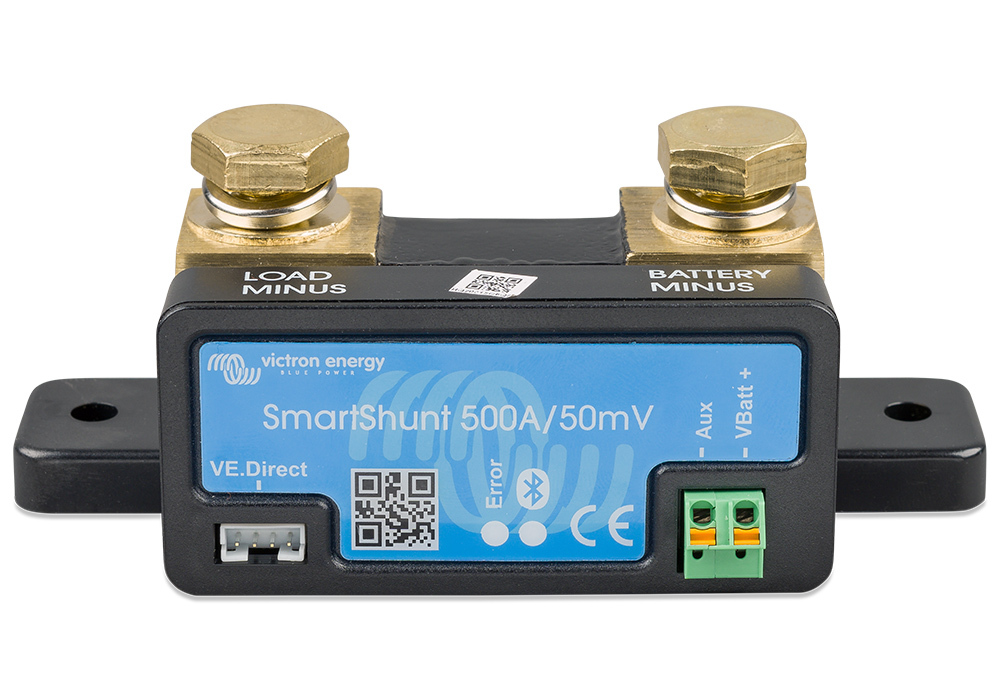

The Victron SmartShunt is a powerful battery monitor with Bluetooth on board. It can be installed out of sight, behind the scenes - whilst live data from the device is relayed to your mobile phone or tablet via the VictronConnect App for Android or iOS or on your Mac and PC. The SmartShunt is a great alternative for a BMV battery monitor where a separate display isn't required.

Monitored Battery Parameters include:

  • Battery State-of-Charge (SoC)
  • Voltage of up to 2 batteries
  • Current Load
  • Time to go
  • Extensive historical information
  • ... and much more


Auxilary Input Options:

The SmartShunt can do more than comprehensively monitor your main battery bank - additionally you can choose to either:

  • Monitor the voltage of a second battery, for exmaple the starter battery or;
  • Connect a temperature sensor (optional accessory) for temperature compensated charging or;
  • Monitor the midpoint voltage of your battery bank (cable included) to keep an eye on battery health.



Connection to any Victron GX Device

The SmartShunt also features a VE.Direct port so can also be connected to any device in the GX range including the Colour Controller and Cerbo GX via a VE.Direct cable.



Differences compared to BMV-712 Battery Monitor

  • No programmable visual and audible alarm
  • No programmable relay.



Smartshunt Video Overview



How to set up a Victron BMV/SmartShunt Battery Monitor for lead and lithium batteries



SmartShunt 500A
Supply voltage range 6,5 - 70 VDC
Current draw < 1mA
Input voltage range, auxiliary battery 6,5 - 70 VDC
Battery capacity (Ah) 1 - 9999 Ah
Operating temperature range -40 +50°C (-40 - 120°F)
Measures voltage of second battery, or
temperature, or midpoint		 Yes
Temperature measurement range -20 +50°C
VE.Direct communication port Yes
RESOLUTION & ACCURACY
Current ± 0,1A
Voltage ± 0,01V
Amp hours ± 0,1 Ah
State of charge (0 – 100%) ± 0,1%
Time to go ± 1 min
Temperature (0 - 50°C or 30 - 120°F) ± 1°C/°F
Accuracy of current measurement ± 0,4%
Offset Less than 20 / 40 / 80 mA
Accuracy of voltage measurement ± 0,3%
INSTALLATION & DIMENSIONS
Dimensions (h x w x d) 500A: 46 x 120 x 54 mm
Protection category IP21
STANDARDS
Safety EN 60335-1
Emission / Immunity EN-IEC 61000-6-1 EN-IEC 61000-6-2 EN-IEC 61000-6-3
Automotive EN 50498

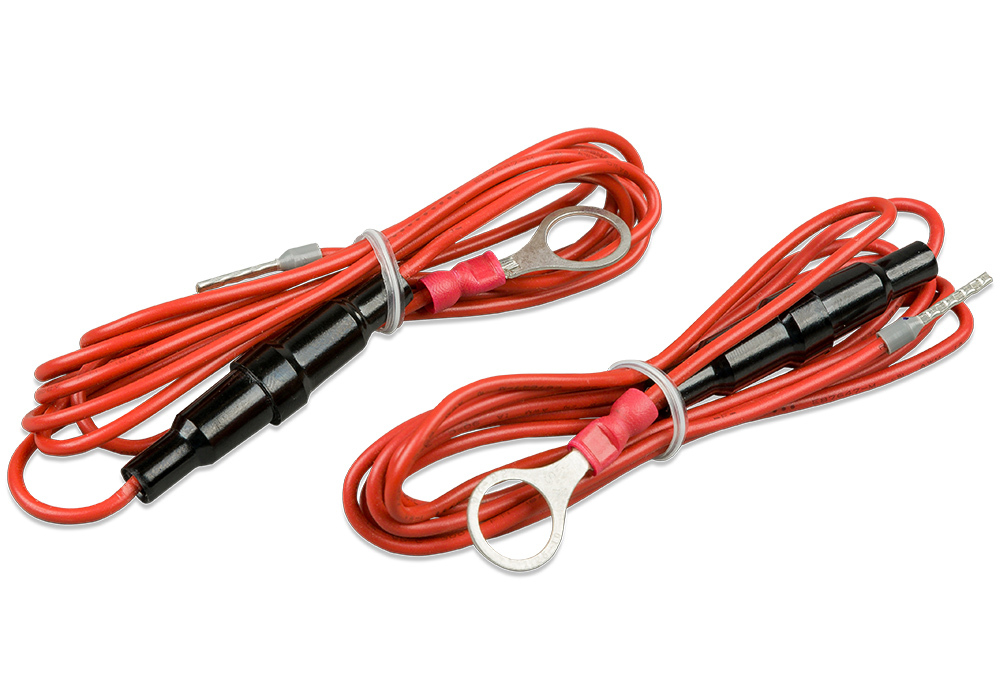

Cables (included) Two cables with fuse, for ‘+’ connection
and starter battery or midpoint connection
Temperature sensor Optional (ASS000100000)



SKU VIC.SHU050150050
Model # SHU050150050
UPC/EAN 8719076044253
Brand Victron Energy
Shipping Weight 0.3740kg
Shipping Width 0.135m
Shipping Height 0.075m
Shipping Length 0.085m
Shipping Cubic 0.000861000m3
Unit Of Measure ea

Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.

Good additional info for your Victron system

By: on 4 January 2023
I like and use most of the additional info this provides such as battery volts, midpoint volts and I have a temp sensor connected. I dont love or use the state of charge and length of time to go and found this difficult to try and program and not terribly useful or accurate. The terminals are decent quality though and I think the info provided is worth the $.
