Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

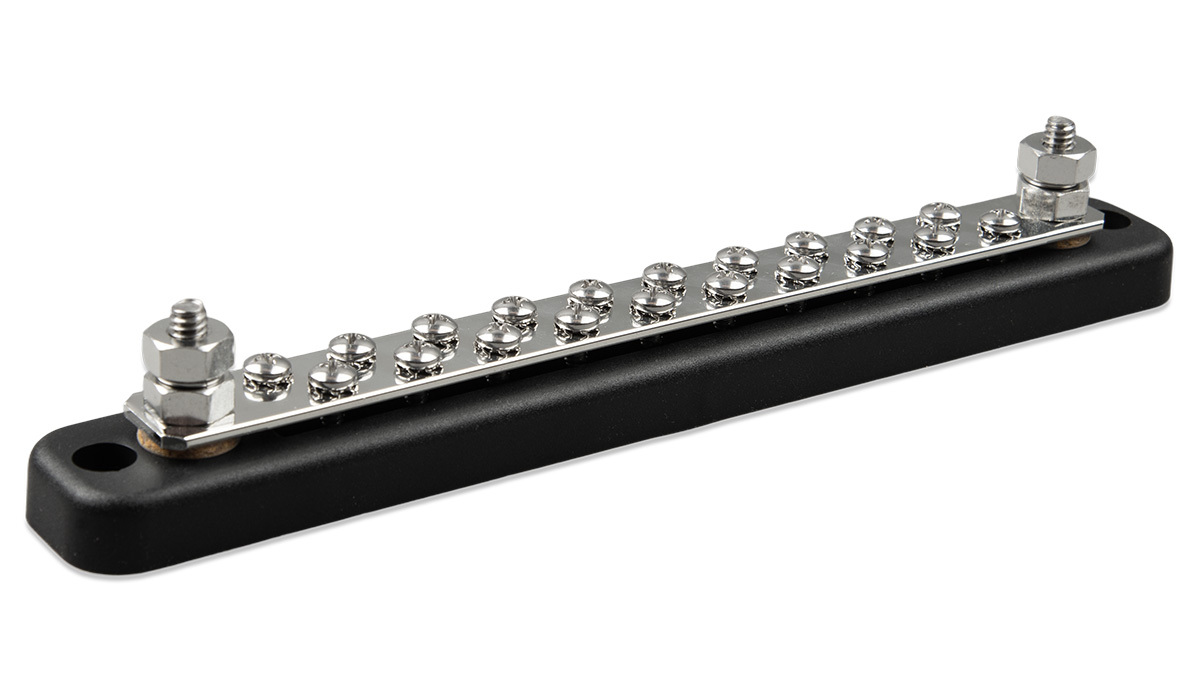

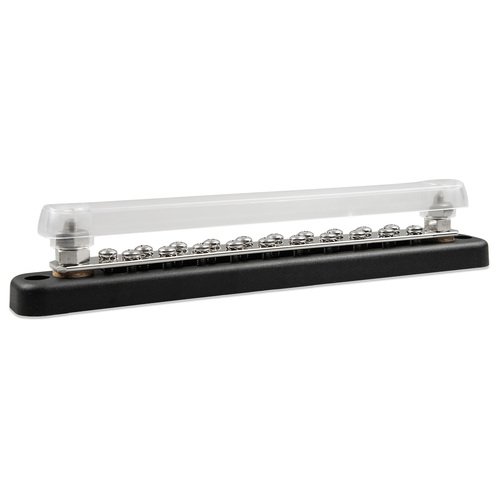

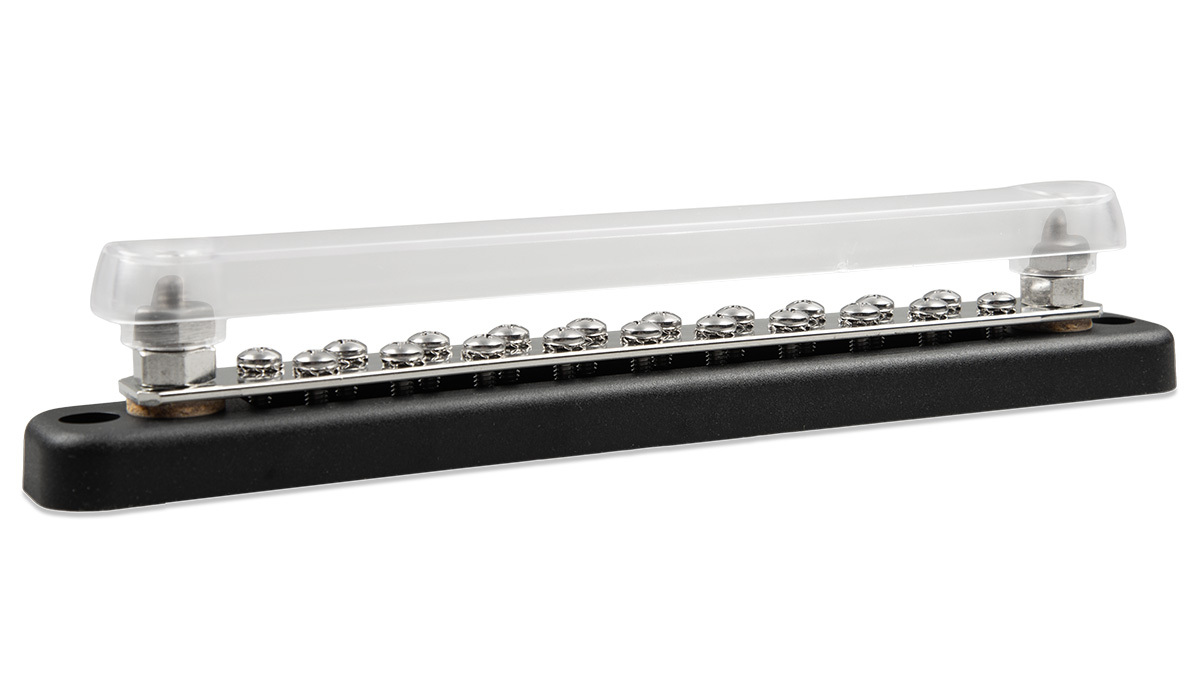

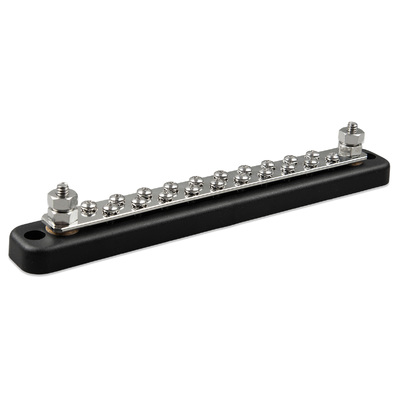

Busbar 150A 2P with 20 Screws and Cover
Max. current 150 A
Max. Voltage 70 VDC
Terminal diameter ¼ inch / 6.35 mm
Terminal height 0.67 inch / 17 mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 60 lbf·inch / 7 N·m
Terminal screws 8-32 / 4.2 mm
Terminal material Stainless steel
Busbar strip material Tin-plated copper (2.4 x 19 mm)
Base material ABS, black, UL 94 V-0
Cover material Clear Polycarbonate, UL 94 HB
Weight, 20 screws 2,2 lb / 1 kg
Dimensions (hxwxd)
(with cover)
1.8 x 9.1 x 1.25 inch
45 x 232 x 32 mm





SKU VIC.VBB115022020
Model # VBB115022020
UPC/EAN 8719076056379
Brand Victron Energy
Shipping Weight 1.0000kg
Shipping Width 0.025m
Shipping Height 0.016m
Shipping Length 0.270m
Shipping Cubic 0.000108000m3
Unit Of Measure ea
