Busbars are used for high current distribution and at the same time they provide connections for batteries and/or DC equipment.

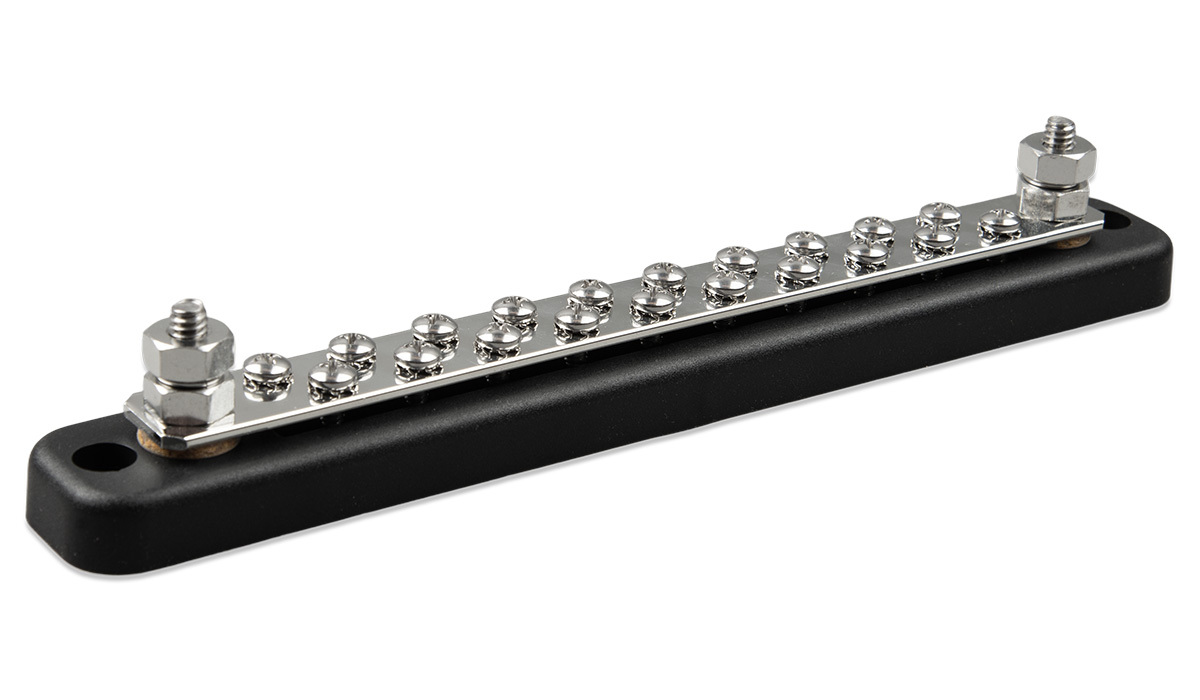

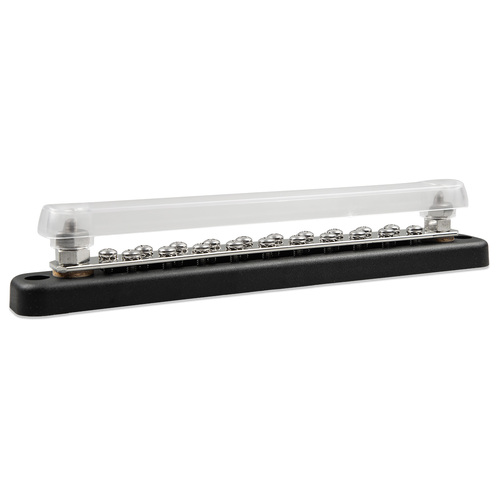

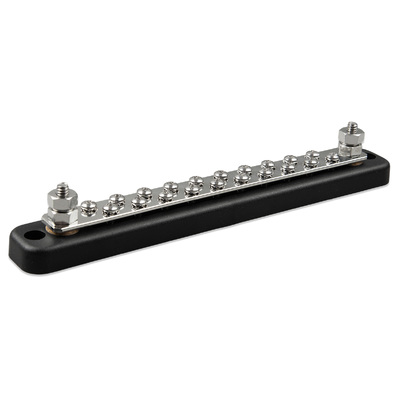

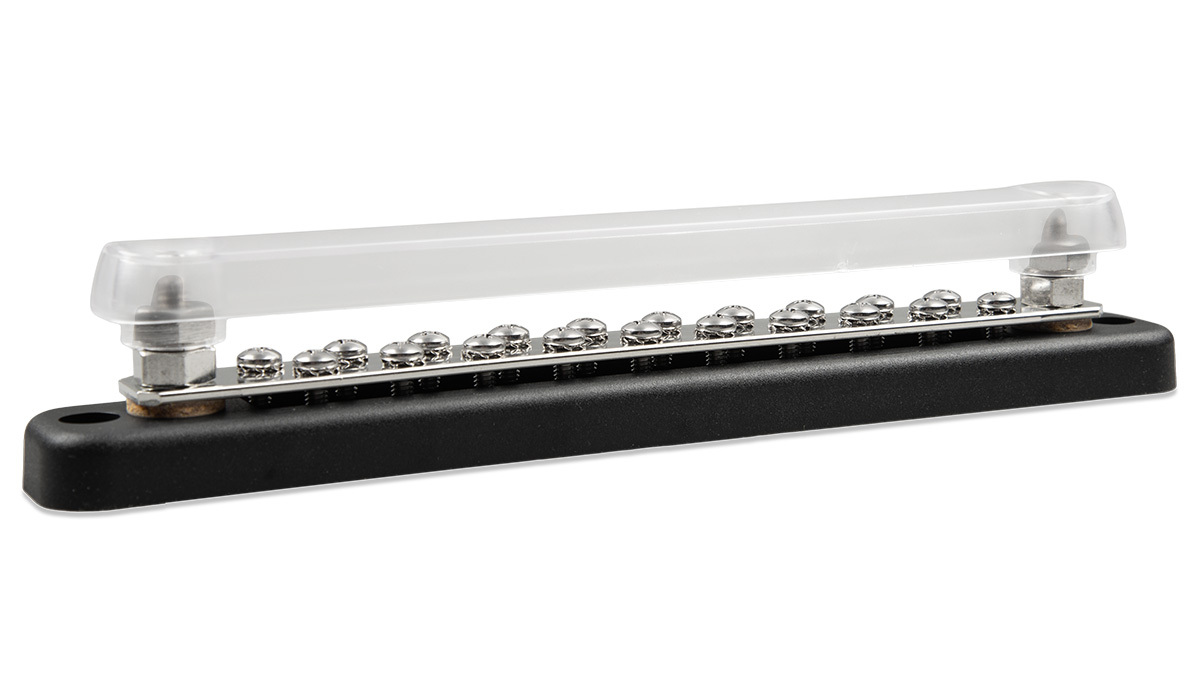

Busbar 250A 2P with 12 Terminal Screws and Cover
Max. current 250 A
Max. Voltage 70 VDC
Terminal stud diameter 5/16 inch / 8 mm
Terminal height 0.67 inch / 17 mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 110 lbf·inch / 13 N·m
Terminal screws 10-24 / 4.8 mm
Terminal material Stainless steel
Busbar strip material Tin-plated copper (6.35 x 25 mm)
Base material ABS, black, UL 94 V-0
Cover material ABS, black, UL 94 V-2
Weight, 20 screws 0.77 lb / 0.35 kg

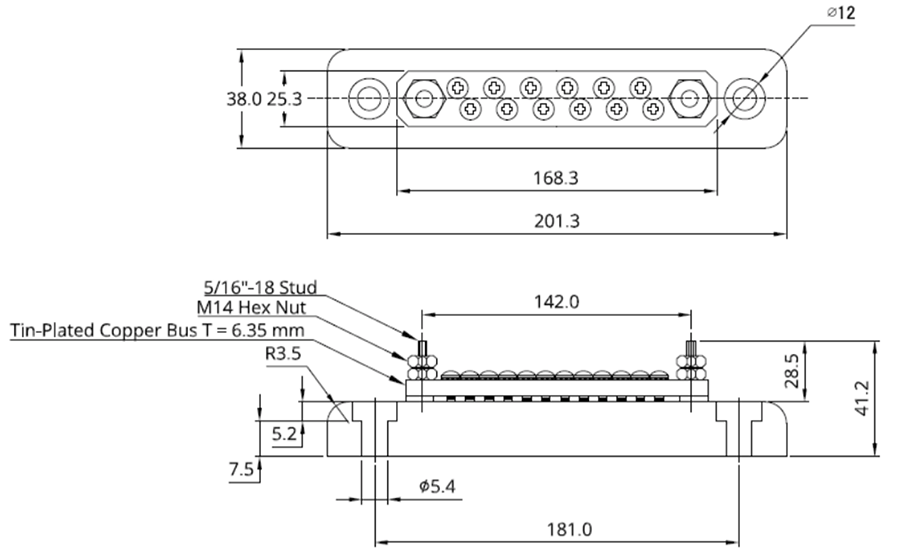

Dimensions (hxwxd)
(with cover)
1.9 x 9.4 x 2.8 inch
48 x 237 x 70 mm



SKU VIC.VBB125021220
Model # VBB125021220
UPC/EAN 8719076056393
Brand Victron Energy
Shipping Weight 1.0000kg
Shipping Width 0.025m
Shipping Height 0.016m
Shipping Length 0.270m
Shipping Cubic 0.000108000m3
Unit Of Measure ea
