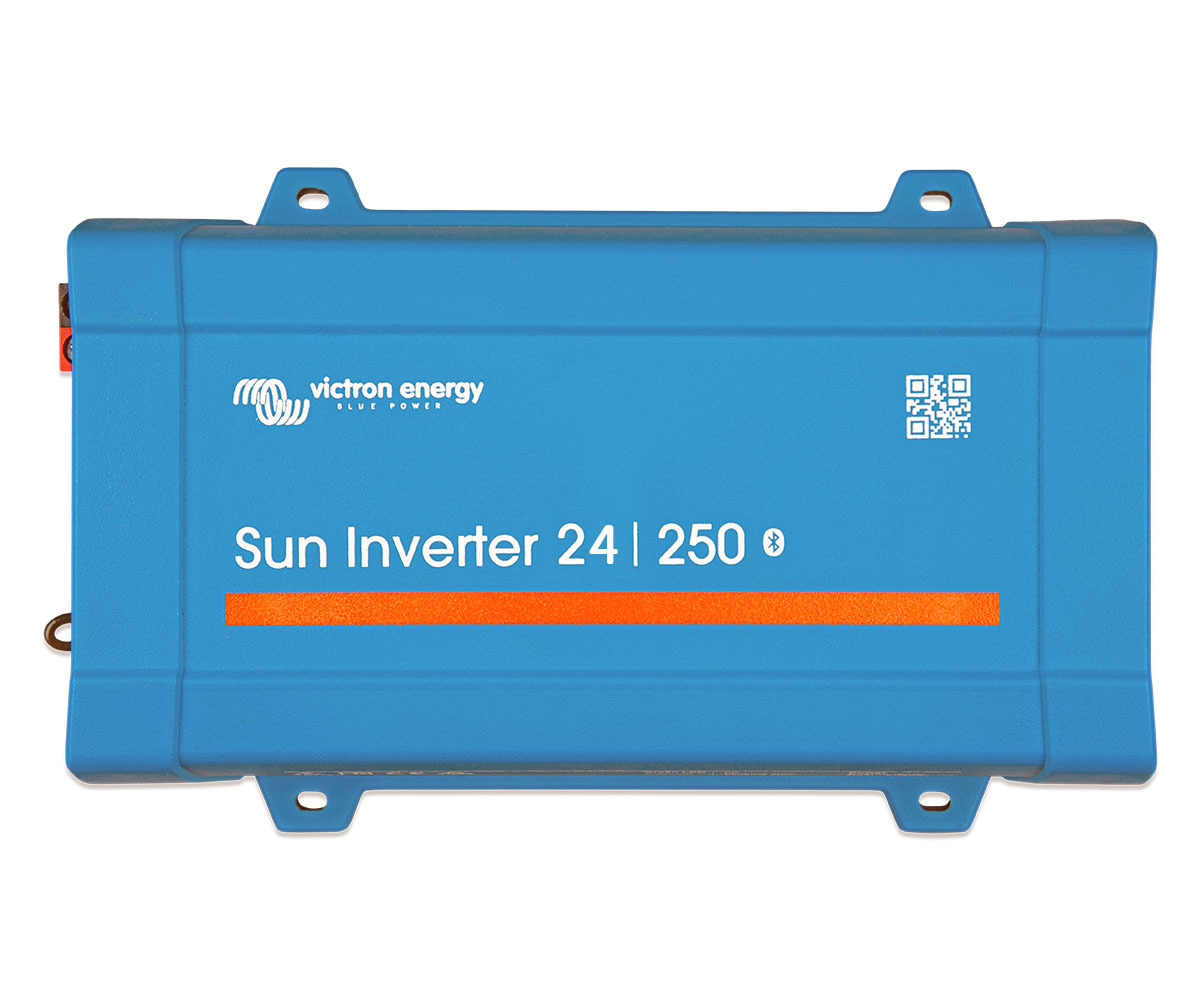

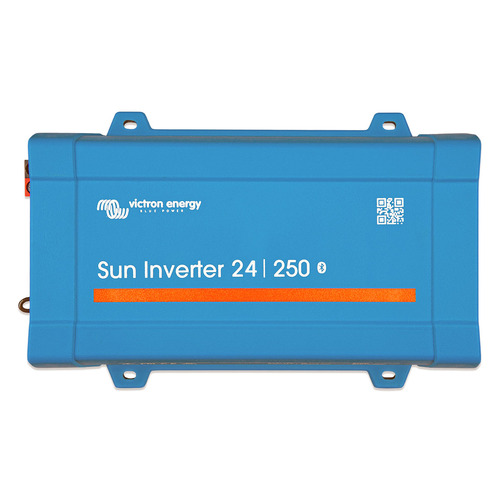

Victron Sun Inverter 24/250-10 IEC
Victrons Sun Inverter combines a 24VDC / 250VA (200W Cont./400W Peak) Pure Sinewave Inverter and a 50V / 10A / 500W PWM Solar Charger in the one enclosure.
SKU: VIC.SIN241251100 | MPN: SIN241251100
SAVE 33%!
Only 1 left In Stock
Ships today from our Southport warehouse if order placed by 1pm
Recommended Accessories
Quantity:
Delivery is typically 2 to 14 business days for In Stock items to Metro locations and longer for remote areas.
We will contact you via email when your order is ready for pickup. For items In Stock this is typically within 3 HOURS.
The Sun Inverter combines a sinewave inverter and a PWM solar charger in one enclosure and is easy to install, with a minimum of wiring.
The inverter allows you to power domestic equipment - requiring 230V AC - using 'leisure' or 'automotive' batteries rated at 24V.
The solar charger ensures that the batteries are being charged by energy harvested from your solar panels. The charge algorithm is programmable.
The inverter and solar charger parameters can be read out via Bluetooth using the VictronConnect app. In addition to this, the inverter has a VE.Direct Port for connection to a GX device or GlobalLink 520 for system monitoring.
Proven reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years. The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.
ECO mode
When in ECO mode, the inverter will switch to standby when the load decreases below a pre-set value (min load: 15W). Once in standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a pre-set level, the inverter will remain on.
PWM solar charger
The solar charger ensures that the batteries are charged by energy harvested from your solar panels. The charge algorithm is programmable.
Bluetooth Enabled
The inverter and solar charger parameters can be read and monitored via Bluetooth using the VictronConnect app.
VE.Direct communication port
The VE.Direct Port can be used for connection to a GX device or GlobalLink 520 for system monitoring.

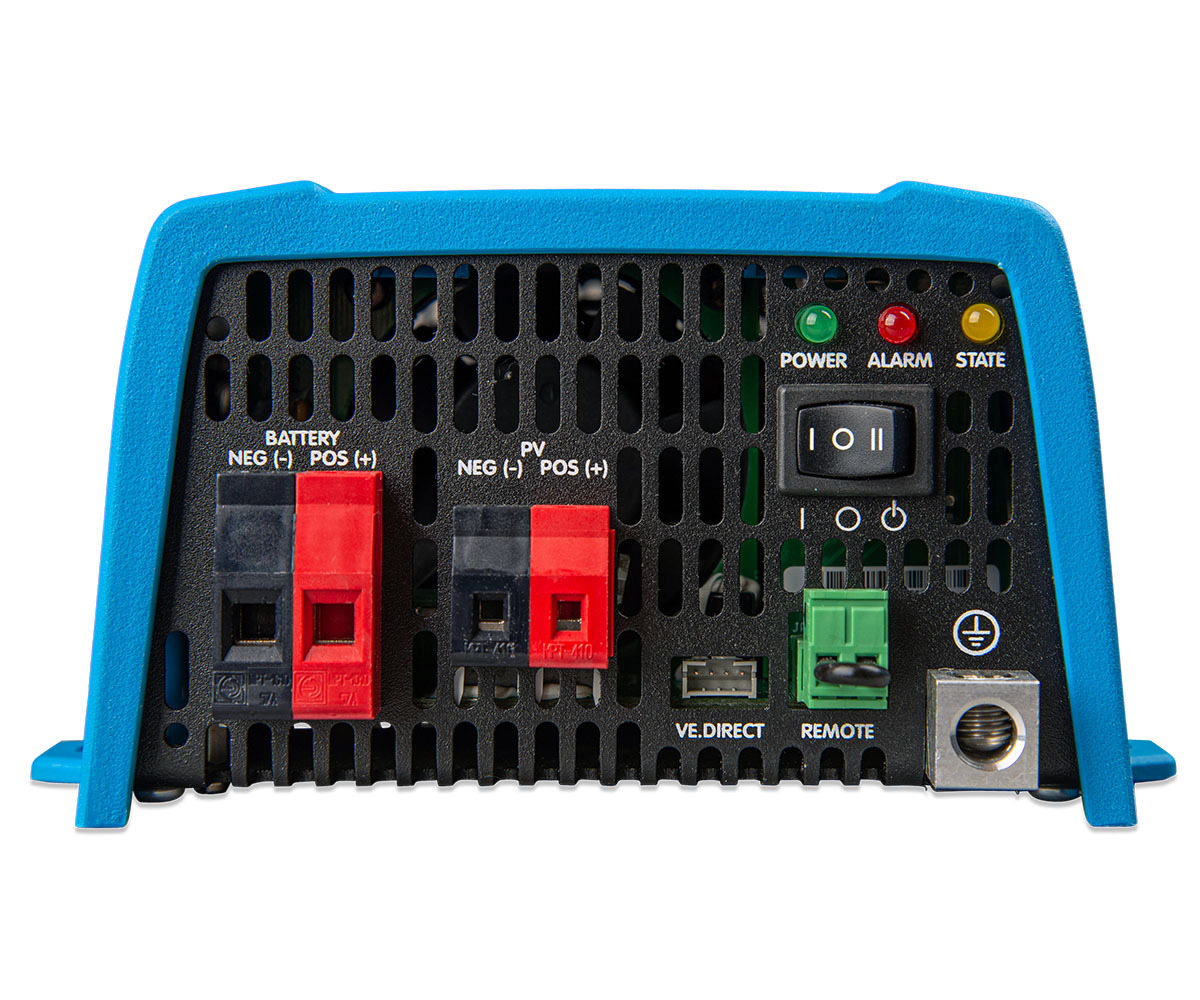

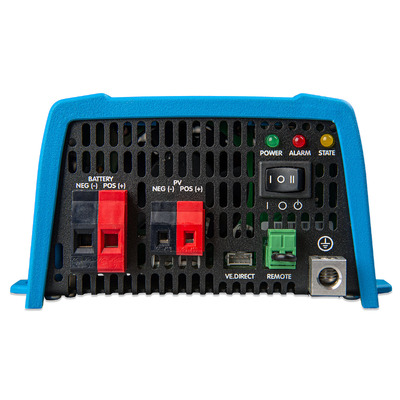

DC and PV connections with screw terminals
No special cable terminals or tools are needed for installation.
| SUN INVERTER | 24/250 |
| Cont. power at 25°C (1) | 250VA |
| Cont. power at 25°C / 40°C | 200W / 175W |
| Peak power | 400W |
| AC output voltage / frequency (adjustable) | 230Vac +/- 3% 50Hz or 60Hz +/- 0.1% |
| DC input voltage range | 18.4 – 34.0V |
| DC low shut down (adjustable) | 18.6V |
| Dynamic (load dependent) DC low shut down | Configurable via the “dynamic cut-off” setting |
| DC low restart and alarm (adjustable) | 21.8V |
| Battery charged detect (adjustable) | 28.0V |
| Max. efficiency | 88% |
| Zero-load power | 5.2W |
| Default zero-load power in ECO mode (2) | 1.3W |
| Solar charger technology | Pulse Width Modulation (PWM) |
| Maximum PV voltage current and power | 50V / 10A / 500W |
| Solar panel type | 72 cell solar panel or two 36 cell solar panels in series |
| Charge voltages | Adjustable and able to be temperature compensated (3) |
| Protections (4) | a - f |
| Operating temperature range | -40 to +65°C (fan assisted cooling) / Output power deration: 1.25% per °C above 40°C |
| Humidity (non-condensing) | max 95% |
| Bluetooth wireless communication | For remote monitoring and configuration |
| VE.Direct communication port | For remote monitoring and system integration |
| ENCLOSURE | |
| Material & Colour | Steel chassis and plastic cover (blue RAL 5012) |
| Battery-connection | Screw terminals |
| Maximum cable cross-section | 10mm² / AWG8 |

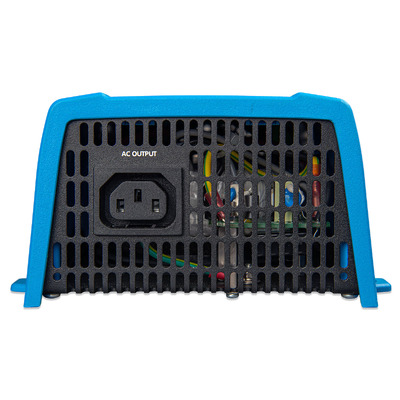

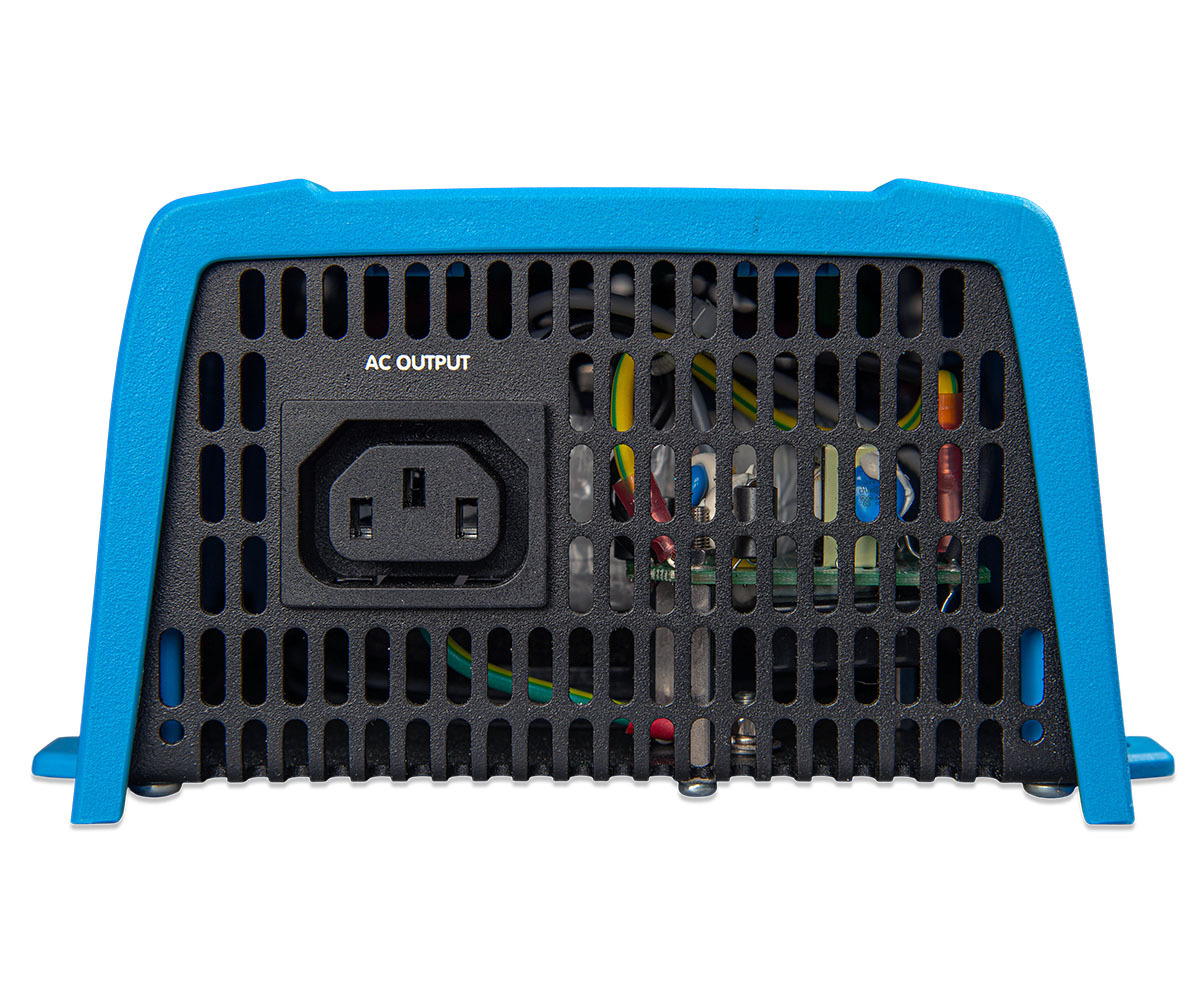

| Standard AC outlet | IEC-320 (male plug included) |
| Protection category | IP 21 |
| Weight | 2.4kg / 5.3lbs |
| Dimensions (h x w x d) | 86 x 165 x 260 mm / 3.4 x 6.5 x 10.2 inch |
| ACCESSORIES | |
| Remote on-off | Yes |
| Automatic transfer switch | Filax |
| STANDARDS | |
| Safety | EN-IEC 60335-1 / EN-IEC 62109-1 |
| EMC | EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-3 |
| Automotive Directive | ECE R10-4 EN 50498 |
| (1) Nonlinear load, crest factor 3:1 (2) The default ECO mode retry interval is 2.5 s. The retry interval, stop power level, and start power level are adjustable. (3) Temperature compensation via an optional ”Temperature sensor Quattro, MultiPlus and GX Device” or the “Smart Battery Sense”. |
(4) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high |
| SKU | VIC.SIN241251100 |
| Model # | SIN241251100 |
| UPC/EAN | 8719076053705 |
| Brand | Victron Energy |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.220m |
| Shipping Length | 0.310m |
| Shipping Cubic | 0.010912000m3 |
| Unit Of Measure | ea |
Purchase with confidence knowing your product is covered by the Victron 5-year manufacturer warranty.
