The Zetifi 4G-5G Cellular Smart Antenna, 698 to 3800Mhz, 1050 mm represents a breakthrough in antenna technology with its location-aware variable gain system. This innovative antenna automatically switches between high and low gain modes to optimise performance based on real-time conditions. Utilising ZetiLink™ technology, it dynamically adjusts gain by interpreting GPS data and antenna tilt, ensuring the best possible signal reception in various environments.

Featuring a versatile design, the ANCA1101AU provides both high and low gain modes within a single antenna. In low gain mode, it offers a gain of 3 dBi, while switching to high gain mode boosts performance to 6.5 dBi. This flexibility is complemented by its broad frequency range of 698-900 MHz, 1710-2700 MHz, and 3400-3800 MHz, making it compatible with a wide array of cellular networks. The antenna’s efficient performance is further supported by its low VSWR values, ensuring minimal signal loss and high reliability.

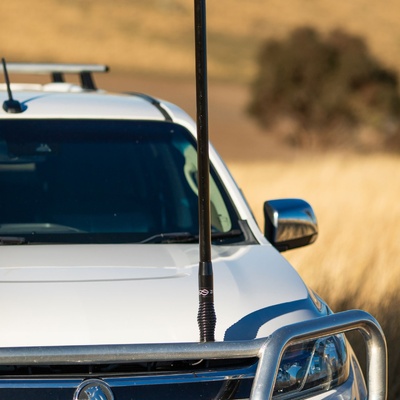

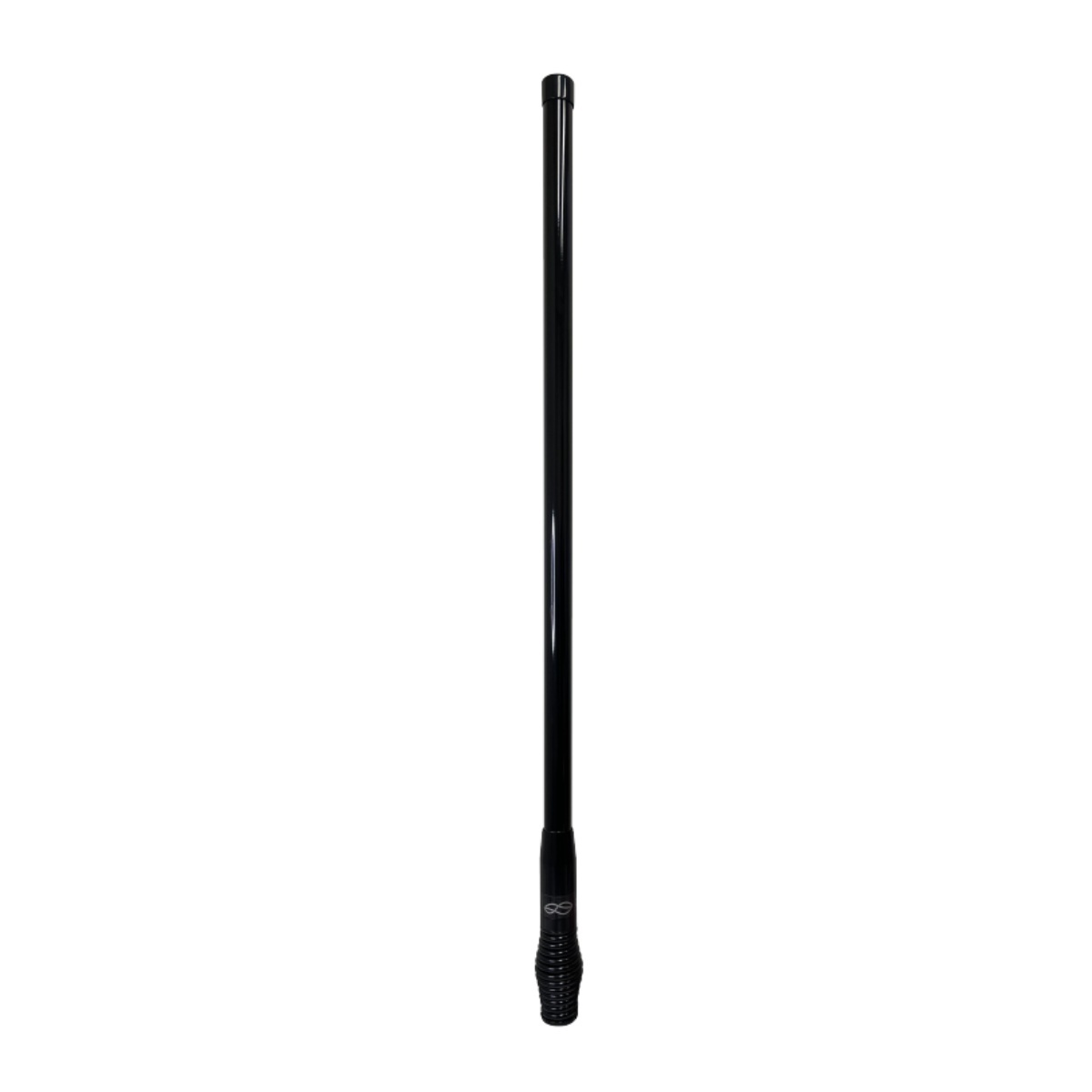

The antenna is constructed with a fibreglass whip and a steel ferrule housing the ZetiLink™ controller board, providing durability and resilience. It features a total height of 1050 mm and integrates a bellied spring for stable mounting. The antenna includes a comprehensive installation kit with coaxial and power cables, a conduit cable protector, and an installation tool, making setup straightforward and secure.

Key Features:

  • Location-Aware Technology
  • Variable Gain Modes
  • Advanced Signal Processing
  • Wide Frequency Range
  • Durable Construction
  • Flexible Installation

Dynamic Gain Adjustment

Equipped with a sophisticated ZetiLink™ engine, the ANCA1101AU intelligently processes data from its inbuilt GPS and gyroscope sensors. This allows the antenna to adapt its gain settings according to terrain (flat, hilly, or urban) and antenna attitude. Whether you're navigating hilly landscapes or cruising on flat terrain, the antenna automatically selects the optimal gain mode for uninterrupted connectivity.

High-Performance Specifications

The ANCA1101AU offers impressive performance across a wide frequency range. It supports frequencies from 698-900 MHz, 1710-2700 MHz, and 3400-3800 MHz, with a gain of 3dBi in low mode and 6.5dBi in high mode. Its vertical beam width ranges from 50° to 20° depending on the gain mode, ensuring strong and reliable signal reception.

Sturdy Construction

Built for durability, the antenna features a fibreglass whip with a reconfigurable PCB antenna element. It includes a steel ferrule with an integrated ZetiLink™ controller and a bellied spring for added resilience. The M14 threaded stud and nut ensure a secure mounting, suitable for various installation scenarios.

Comprehensive Installation Kit

The ANCA1101AU comes with a complete installation kit, including a 4360 mm LMR195 coaxial cable, a 2500 mm 16AWG automotive power cable, and a 500 mm conduit cable protector. The kit also includes a 22 mm split socket tool for easy antenna attachment, ensuring a hassle-free setup process.

Optimised for Performance

Designed for optimal performance, the antenna's VSWR is less than 2.5:1 at 698-900 MHz and under 2:1 at other frequencies, providing efficient signal transmission. It operates on a DC voltage range of 12V to 18V, with a low power consumption of just 0.7W, making it suitable for a variety of applications.

User-Friendly App Integration

Enhance your antenna's functionality with the companion app, which allows you to monitor and control the automatic switching between high and low gain modes. This feature adds an extra layer of convenience, letting you tailor the antenna's performance to your specific needs and preferences.

Category Specification Details
Model Version Product Name ANCA1101AU
  Type Smart Antenna
  Technology ZetiLinkTM technology
Physical Dimensions Height 1050 mm
  Whip Diameter 33 mm
  Spring Diameter 56 mm
  Base Diameter 42 mm
Antenna Gain Low Gain Mode 3 dBi
  High Gain Mode 6.5 dBi
Vertical Beamwidth Low Gain Mode 50/30/20 degrees
  High Gain Mode 25/15/10 degrees
VSWR 698-900 MHz <2.5:1
  1710-2700 MHz <2:1
  3400-3800 MHz <2:1
Nominal Impedance   50 Ω
Frequency Range   698-900 MHz, 1710-2700 MHz, 3400-3800 MHz
Construction   Fibreglass whip, reconfigurable PCB, steel ferrule, bellied spring
Mounting Threaded Stud M14
  Mounting Hole Diameter 16 mm
Weight Antenna 1250 g
  With Cabling 2000 g
Integrated Antenna Cables Low Loss Coaxial Cable 145 mm RG316 with SMA male
  Automotive Power Cable 215 mm 20AWG with bullet connectors
Coaxial Cable Length 4360 mm
  Termination SMA female (antenna end), SMA male (device end)
Power Cable Length 2500 mm
  Termination 3A blade fuse, bullet connectors, 8.5 mm lugs
Input Voltage Range 12V DC to 18V DC
Input Current   60 mA
Input Power   0.7 W
SKU ZET.ANCA1101AU-01
Model # ANCA1101AU-01
Brand Zetifi
Shipping Weight 2.0000kg
Shipping Width 1.050m
Shipping Height 0.060m
Shipping Length 0.060m
Shipping Cubic 0.003780000m3
