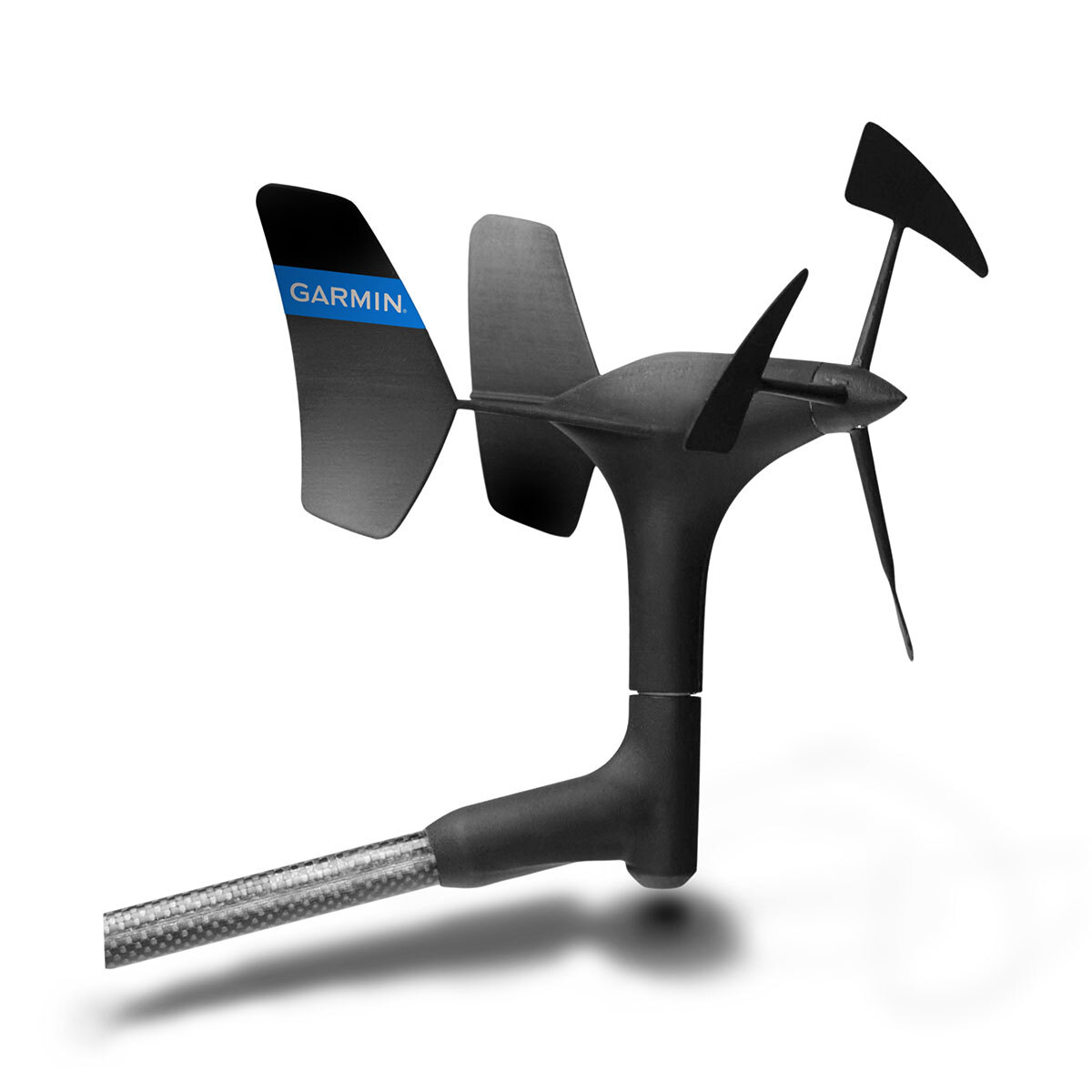

The gWind transducer features twin-fin technology with a 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cup's design, is always efficient. Combined with optic reading this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity.

The included GND 10 black box bridge enables the Nexus Network and compatible Garmin chart plotters to share critical NMEA 2000 data. The GND 10 enables Garmin Chartplotter owners to use Nexus sail equipment and vice versa. Available in 2 bundles (sold separately).

  • Unit Dimension, WxH: 13.6" x 24" (345 mm x 610 mm)
  • Weight: 260 g
  • Cable Length: 25 m
  • Waterproof: Yes (IPX6¹)
  • Temp Range: From 5°F to 158°F (-15°C to 70°C)
  • Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
  • Voltage Range: 9-16V
  • Power Usage: 0.33W
  • Typical Current Draw at 12 VDC: 28 mA
  • Compass Safe Distance: N/A
  • Accuracy Angle: Better than ±1.5°
  • Speed: Better than ±3%
  • Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
  • NMEA 2000® Load Equivalency Number (LEN): N/A
  • Wireless Connectivity: No
SKU GAR.010-01227-00
Model # 010-01227-00
UPC/EAN 0753759112226
Brand Garmin
Shipping Weight 2.4800kg
