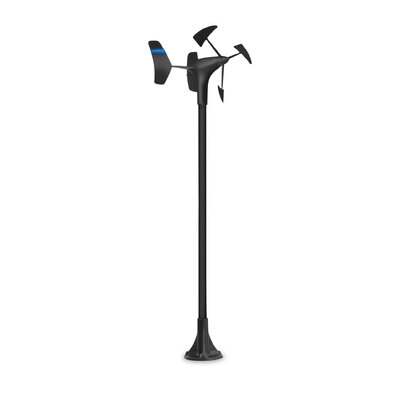

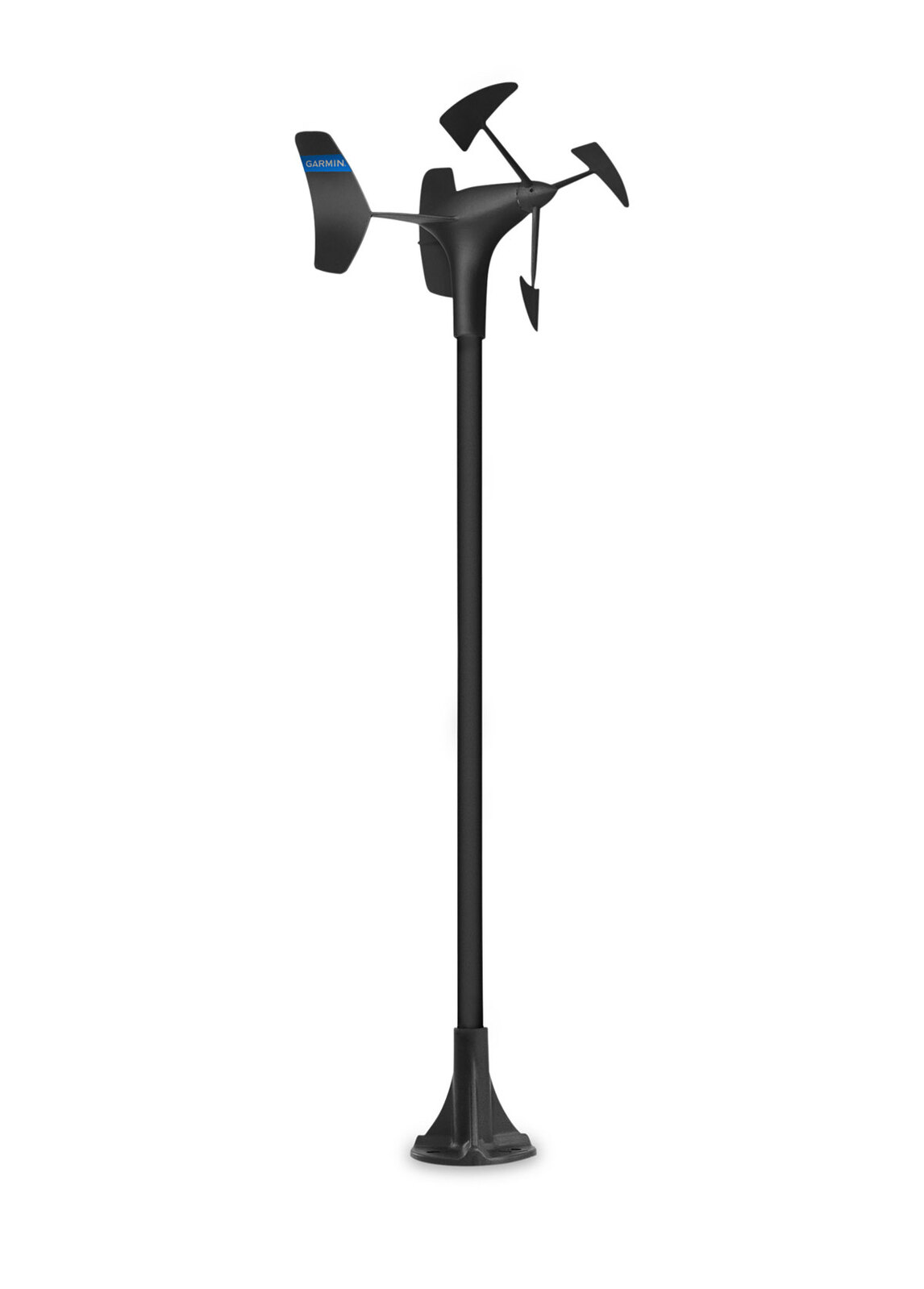

Designed for racing sailboats, the gWind Race features a 3.3 feet (1 meter) straight pole to raise the transducer above the mast to remove turbulence errors. Features twin-fin technology with a 3-bladed propeller for more accurate TWS in lighter air while the twin-fin design gives a more stable TWA. The 3-bladed propeller, unlike a cup's design, is always efficient.

Combined with optic reading, this transducer provides superior accuracy at low wind speeds and also provides for excellent linearity. And it's all connected using our lightest cable. The included GND 10 black box bridge enables the Nexus Network and Garmin compatible chart plotters to share critical NMEA 2000 data. Easy plug-and-play installation between Nexus, Garmin chart plotters and NMEA 2000.

Features

productSpecMisc
  • Unit Dimension, H: 1.18 m
  • Weight: 320 g
  • Cable Length: 25 m
  • Waterproof: Yes (IPX6¹)
  • Temp Range: From 5°F to 158°F (-15°C to 70°C)
  • Storage Temperature: From -4°F to 176°F (-20°C to 80°C)
  • Voltage Range: 9-16V
  • Power Usage: 0.33W
  • Typical Current Draw at 12 VDC: 28 mA
  • Compass Safe Distance: N/A
  • Accuracy Angle: Better than ±1.5°
  • Speed: Better than ±3%
  • Wind Speed Range: 0. 8-90 knots (0. 4-50 m/s)
  • NMEA 2000® Load Equivalency Number (LEN): N/A
  • Wireless Connectivity: No

¹Protected against heavy seas

SKU GAR.010-01228-00
Model # 010-01228-00
UPC/EAN 0753759112233
Brand Garmin
Shipping Weight 3.1900kg
