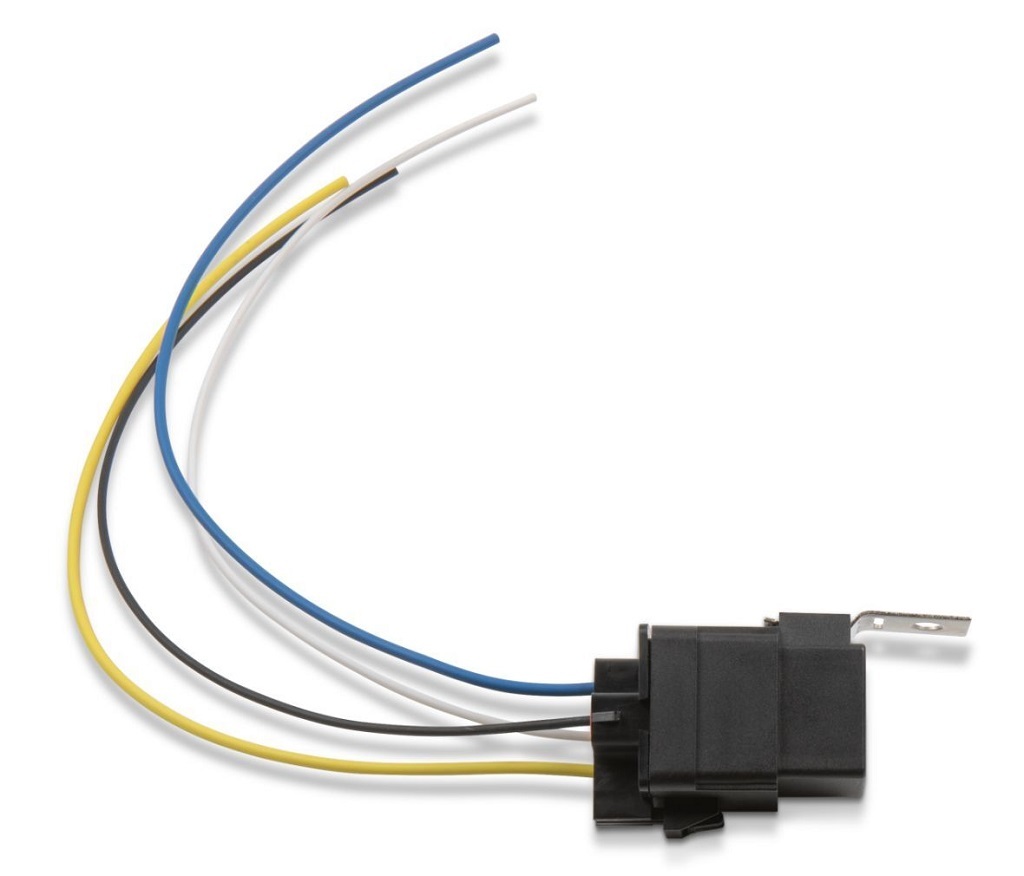

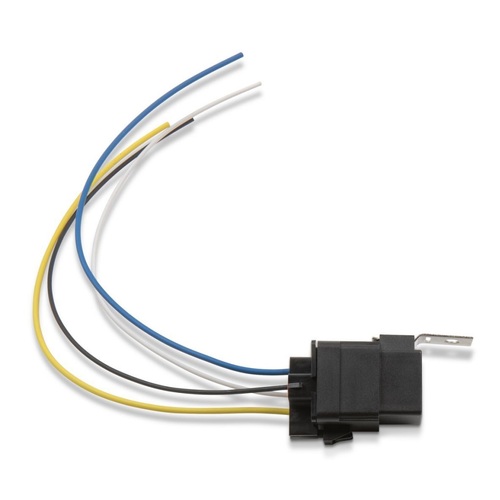

Control your vessel remotely using the OnDeck™ Hub and a relay switch. Add up to five switches to your OnDeck Hub to stay in control. Verify that the input power for your OnDeck Hub operates between 10 Vdc and 15.6 Vdc to ensure compatibility with your system.

Features

productSpecMisc

To avoid potential damage to the relay switch, GTB 10 black box device, and device being switched, you must install this relay switch in a dry location.

Operating temperature range

From -15° to 85°C (from 5° to 185°F)

Storage temperature range

From -40° to 155°C (from -40° to 311°F)

Control voltage (coil)

7.8 to 15.6 Vdc

Load power min. (contacts)

0.1 A

Load power max. (contacts)

Up to 15 A at 10 to 16 Vdc
Up to 9 A at 20 to 32 Vdc

SKU GAR.010-13009-01
Model # 010-13009-01
UPC/EAN 0753759256012
Brand Garmin
Shipping Weight 0.1300kg
