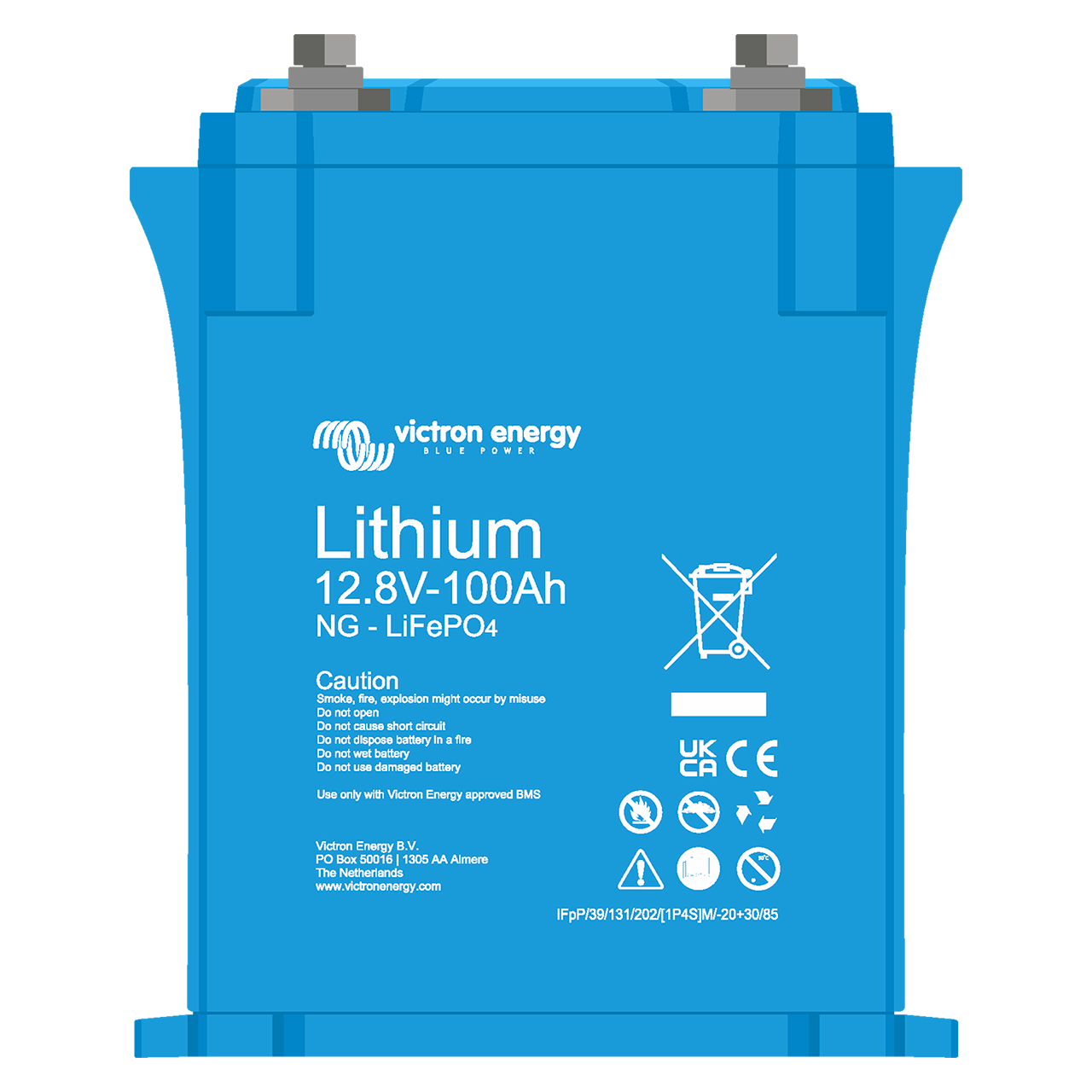

The Victron Lithium LiFePO4 Battery 12.8V/100Ah NG Series is engineered for efficient energy storage, offering high performance and reliability in a compact form. Using advanced Lithium Iron Phosphate (LiFePO4) technology, this battery is ideal for renewable energy systems and off-grid applications, providing robust power for extended use.

Key Features:

  • Lithium Iron Phosphate (LiFePO4) battery
  • 12.8 V, 100 Ah capacity
  • Integrated shunt for real-time monitoring of voltage, current, and temperature
  • Automatic setup, control, and monitoring via VictronConnect app and GX devices
  • IP65-rated for dust and water resistance
  • Easy bracket and strap mounting options; can be mounted on its side
  • Low self-discharge rate of ≤ 3% per month
  • Certified to UL1973, UL9540A, and IEC62619 safety standards (pending for battery)

Advanced Monitoring and Control Features

Integrated with smart technology, this battery works seamlessly with the Lynx Smart BMS NG and VictronConnect app. You can monitor key parameters such as battery voltage, current, and temperature through real-time data available on your mobile device, ensuring proactive management and control for enhanced performance.

Durable and Compact Design

Built to withstand challenging environments, the 12.8V/100Ah NG battery has an IP65 rating for dust and water resistance. It is compact, measuring 235 x 197 x 160 mm and weighing only 9 kg, allowing for easy installation and flexible mounting options that fit a variety of setups.

Long Life Cycle and Low Self-Discharge

This battery boasts a long cycle life of up to 5,000 cycles at 50% Depth of Discharge, delivering dependable power over time. Its low self-discharge rate of 3% per month ensures that it stays ready for use, making it a sustainable choice for long-term energy storage needs.

How does the new Victron Energy Lithium NG Battery & BMS NG work?

Category Specification Details
Model Version BAT512110620 12.8V/100Ah Lithium Iron Phosphate (LiFePO4) Battery
Voltage and Capacity Nominal Voltage 12.8 V
  Nominal Capacity 100 Ah
  Nominal Energy 1280 Wh
Performance Capacity Loss (per 100 cycles) < 1%
  Round Trip Efficiency 92%
Cycle Life 80% DoD 2500 cycles
  50% DoD 5000 cycles
Discharge Max Continuous Discharge Current 100 A (1C)
  Max Pulse Discharge Current (10s) 200 A (2C)
  End of Discharge Voltage 11.2 V
Charge Charge Voltage Range Between 14.0 V and 14.4 V
  Float Voltage 13.5 V
  Max Continuous Charge Current 100 A (1C)
  Max Pulse Charge Current (10s) 200 A (2C)
Battery Management System Compatibility Lynx Smart BMS NG 500 A / 1000 A (sold separately)
  Monitoring and Control Via VictronConnect App, GX device, or VRM Portal
Operating Conditions Discharge Temperature -20 °C to +50 °C
  Charge Temperature +5 °C to +50 °C
  Storage Temperature -45 °C to +70 °C
Physical Protection Class IP65
  Mounting Options Strap or mounting brackets, can be placed on sides
  Self-Discharge Rate ≤ 3% per month @ 25 °C
  Power Connection M8 threaded inserts and bolts
Dimensions H x W x D 235 x 197 x 160 mm
Weight Product Weight 9 kg
Standards Safety UL1973, UL9540A, IEC62619 (cells)
  EMC EN 61000-6-3, EN 61000-6-2
SKU VIC.BAT512110620
Model # BAT512110620
UPC/EAN 8719076058892
Brand Victron Energy
Shipping Weight 10.0000kg
Shipping Width 0.280m
Shipping Height 0.190m
Shipping Length 0.295m
Unit Of Measure ea
